Product Details:
|
| Product: | Monochrome Graphic LCD Display | Resolution: | 128x32 |
|---|---|---|---|
| LCD Type: | FSTN,Transmissive,Positive | Optics: | 12 O'Clock |
| Outline Dim.: | 50x23x3.3 Mm | Backlight: | 3pcs White LEDs, 3.0V, 45mA |
| Operating Temp: | -10°C To +60°C | Pin Number: | 10 Pins |
| Controller: | ST7567 | Drive Mode: | 1/33 Duty Cycle, 1/6 Bias |
| Connector: | COG+FPC | Compliance: | REACH & RoHS Compliant |
| Highlight: | Monochrome COG LCD Display,128x32 COG LCD Display,ST7567 IC LCD Display Graphic |
||
Graphic LCD Display 128x32 Dots COG with ST7567 IC Monochrome LCD module
128x32 Graphic LCD Display Description
SAEF Technology SF-12832-19B11 is a 128x32 monochrome Graphic LCD display module.
Product Quick Details:
1. LCD Size: Graphic Monochrome LCD Display Module
2. Resolution: 128x32
3. Viewing Angle: 12:00
4. Outline Dimension: 50x23x3.3 mm
5. Driver IC: ST7567
6. Drive Mode: 1/33 Duty cycle, 1/6 Bias
7. Temperature: Top -10°C to +60°C; Tst -20°C to +70°C
8. Touch Panel: Without Touch Panel(Customizable)
Product Features:
1. 128x32 LCD SF-12832-19B11 model is built in with ST7567 controller or equivalent IC. It has 10 pins. The FPC is customizable.
2. LCD 12832 SF-12832-19B11 graphic Display LCD 128x32 module is 3.3V(typical value) for supply voltage. It is with white LED backlight.
3. 128x32 graphic SF-12832-19B11 is FSTN Transmissive Positive mode.
4. Graphic lcd display128x32 SF-12832-19B11 can be operating at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃.
5. COG 128x32 this LCD module is originally without touch, but touch panel is customizable.
Application
This module is widely used in POS terminal, cash reader, meter and instrument, remote controller, sensor device, handheld device, mobile food ordering machine, medical analyzer, etc.
| Product: | Monochrome Graphic LCD Display | Resolution: | 128x32 |
|---|---|---|---|
| LCD Type: | FSTN,Transmissive,Positive | Optics: | 12 O'Clock |
| Outline Dim.: | 50x23x3.3 Mm | Backlight: | 3pcs White LEDs, 3.0V, 45mA |
| Operating Temp: | -10°C To +60°C | Pin Number: | 10 Pins |
| Controller: | ST7567 | Drive Mode: | 1/33 Duty Cycle, 1/6 Bias |
| Connector: | COG+FPC | Compliance: | REACH & RoHS Compliant |
128x32 Monochrome Graphic LCD Display Drawing

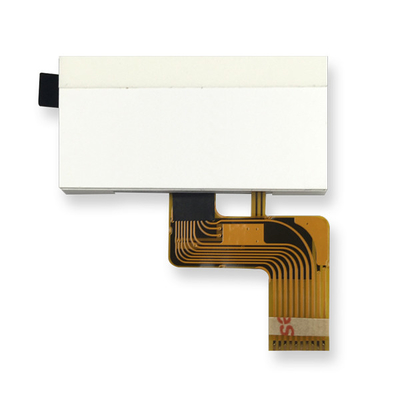

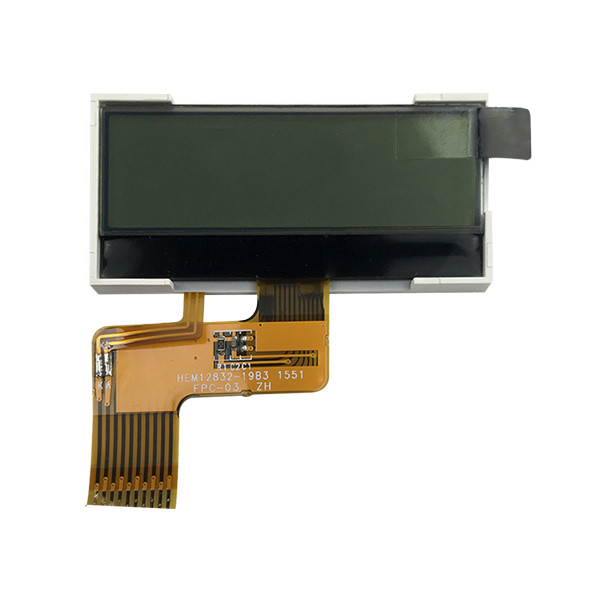

128x32 Monochrome Graphic LCD Display Real Product Image
Factory Facilities and Certificates
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
