COG Graphic STN LCD Display 128x64 with yellow Green Background color

COG Graphic STN LCD Display 128x64 with yellow Green Background color
COG Graphic STN LCD Display 128x64 with yellow Green Background color COG Graphic STN LCD Display 128x64 with yellow Green Background color COG Graphic STN LCD Display 128x64 with yellow Green Background color

Large Image :  COG Graphic STN LCD Display 128x64 with yellow Green Background color

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-12864-70L
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD0.xx Reference price, Price is negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month
Contact Now

COG Graphic STN LCD Display 128x64 with yellow Green Background color

Description
Product: COG 128X64 LCD Resolution: 128x64 Dots
LCD Type: STN, Positive, Transmissive Background Color: Yellow Green
Driving Method: 1/64 Duty Cycle, 1/9 Bias Outline Dim.: 39.0 X 31.1 X 3.5 Mm
Viewing Area: 36.0 X 23.5 Mm Dot Pitch: 0.26 X 0.32 Mm
Operating Temp: -10°C To +60°C Storage Temp.: -20°C To +70°C
Optics: 6:00 O'clock Pin Number: 10 Pins
Interface: SPI VDD: 3.3V
Connector: Plugging ( Customizable ) Compliance: REACH & RoHS Compliant
Highlight:

STN LCD Display 128x64

,

Yellow STN LCD Display

,

Graphic Green LCD Display

COG Graphic 128x64 STN Yellow Green Lcd Display Module 3.3V with yellow Green Background color



Graphic LCD 128x64,  Yellow Green LCD 128x64 Description






SAEF Technology COG LCD SF12864-70L is a monochrome LCD display module built in with ST7567 IC which supports SPI interface. The display is having the outline dimension 39.0 x 31.1 x 3.5 mm and VA size of 36.0 x 23.5 mm. This Monochrome Display can be operating at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃. This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.


Pin Definition:

Pin1, /CS1B,   Chip Select , When /CS= “L”, chip is selected
Pin2, /RST,     When /RST= “L”, the settings are initialized
Pin3, A0,         Select register data when A0= “H”, and instruction when A0= “L”
Pin4, SCK,      Serial clock input terminal
Pin5, SDA,      Serial data input terminal
Pin6, VDD,      Supply voltage for logic circuit +3.3V
Pin7, VSS,      Ground
Pin8, V0,         LCD driving voltage for common circuits at negative frame.
Pin9, XV0,       LCD driving voltage for common circuits at positive frame.
Pin10, VG,       LCD driving voltage for segment circuits





Product: COG 128X64 LCD Resolution: 128x64 Dots
LCD Type: STN, Positive, Transmissive Background Color: Yellow Green
Driving Method: 1/64 Duty Cycle, 1/9 Bias Outline Dim.: 39.0 X 31.1 X 3.5 mm
Viewing Area: 36.0 X 23.5 mm Dot Pitch: 0.26 X 0.32 mm
Operating Temp: -10°C To +60°C Storage Temp.: -20°C To +70°C
Optics: 6:00 O'clock Pin Number: 10 Pins
Interface: SPI VDD: 3.3V
Connector: Plugging ( Customizable ) Compliance: REACH & RoHS Compliant






SAEF Technology is a professional Character and Graphic LCD manufacturer. SAEF's graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 96x16 LCD, 122x32 LCD, 128x64 LCD, 128x128 LCD, 144x32 LCD, 160x128 LCD, 160x160 LCD, 160x32 LCD, 160x80 LCD, 192x64 LCD, 240x64 LCD, 320x240 LCD and etc. The sizes are including 2" LCD, 2.5" LCD, 3" LCD, 3.2" LCD, 4" LCD Display, and etc. SAEF Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.


We have an extensive range of LCD graphic displays with various backlight and LCD type combinations. SAEF's graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical devices.





Why Choose us

1．We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2．Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3．Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4．Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.







Graphic LCD 128x64, Yellow Green LCD 128x64 Drawing



COG Graphic STN LCD Display 128x64 with yellow Green Background color 0

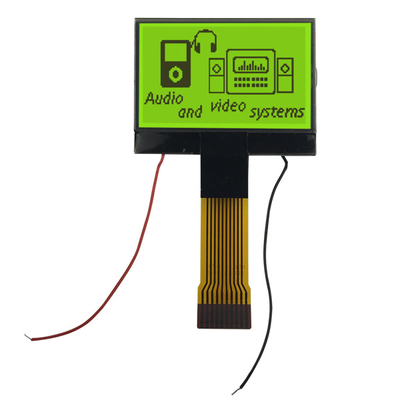

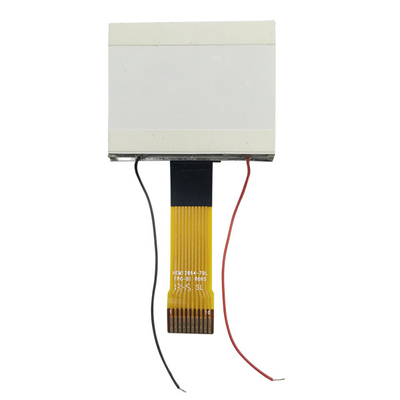

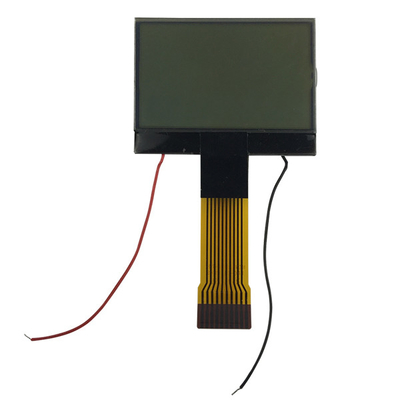

Graphic LCD 128x64, Yellow Green LCD 128x64 Product photo



COG Graphic STN LCD Display 128x64 with yellow Green Background color 1COG Graphic STN LCD Display 128x64 with yellow Green Background color 2















FACTORY AND FACILITIES

COG Graphic STN LCD Display 128x64 with yellow Green Background color 3

COG Graphic STN LCD Display 128x64 with yellow Green Background color 4

COG Graphic STN LCD Display 128x64 with yellow Green Background color 5COG Graphic STN LCD Display 128x64 with yellow Green Background color 6

COG Graphic STN LCD Display 128x64 with yellow Green Background color 7COG Graphic STN LCD Display 128x64 with yellow Green Background color 8COG Graphic STN LCD Display 128x64 with yellow Green Background color 9

COG Graphic STN LCD Display 128x64 with yellow Green Background color 10COG Graphic STN LCD Display 128x64 with yellow Green Background color 11

COG Graphic STN LCD Display 128x64 with yellow Green Background color 12COG Graphic STN LCD Display 128x64 with yellow Green Background color 13COG Graphic STN LCD Display 128x64 with yellow Green Background color 14
