Product Details:
|
Product: | Monochrome LCD Module | Resolution: | 128x64 Dots |
---|---|---|---|
View Direction: | 6 O'clock | LCD Type: | FSTN, Positive |
Polarizer Type: | Transflective | Module Size: | 65x84.4x7.8mm |
Viewing Area: | 57.6x36.6mm | Driver IC: | ST7567 |
Pin Number: | 16 Pins | Interfaces: | 4-line SPI Interface |
Operating Temp: | -20°C To +70°C | Supply Voltage: | 3.3V(Typical Value) |
Life Time: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | Monochrome Graphic LCD Display COG,ST7567 Monochrome Graphic LCD Display,128X64 graphic lcd module |

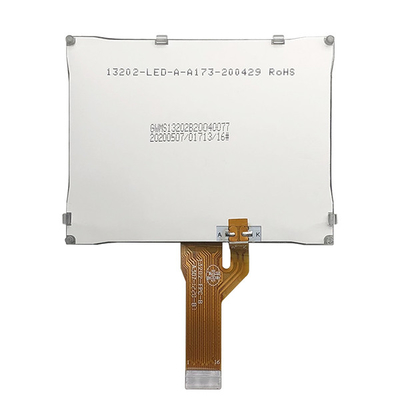

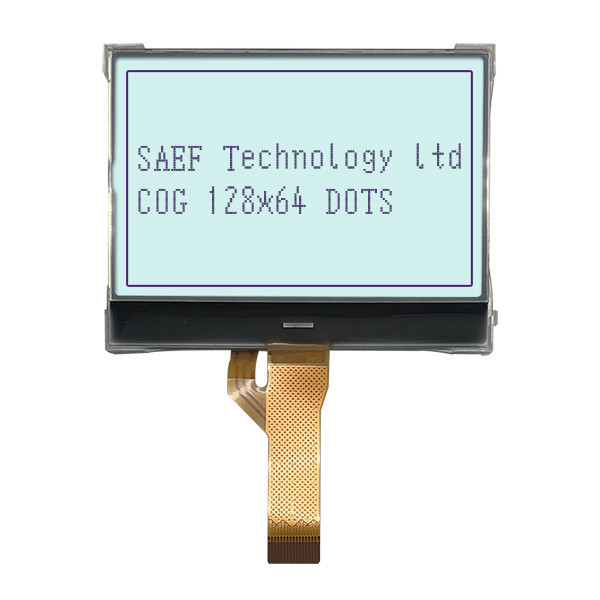

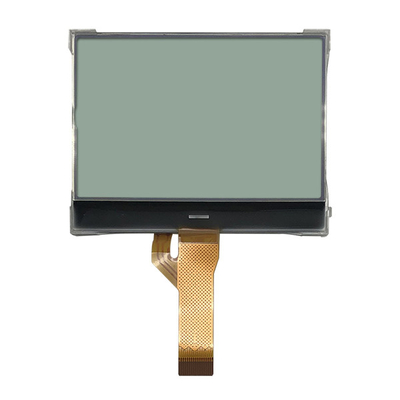

Monochrome LCD module Graphic type 128X64 dots COG with ST7567 IC FSTN Positive LCD
128x64 COG Graphic LCM Description
SAEF Technology SF-BS12864H-GW is a monochrome graphic type128x64 COG LCD module.
Product Quick Details:
1. LCD Size: Graphic Monochrome LCD Module
2. Resolution: 128x64
3. Viewing Angle: 6:00
4. Outline Dimension: 65x84.4x7.8mm
5. Driver IC: ST7567
6. LCM Interface Type: 4-line SPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Without Touch Panel(Customizable)
Product Features:
1. SF-BS12864H-GW model is built in with ST7567 controller or equivalent IC; it supports 4-line SPI serial interface.
2. This SF-BS12864H-GW graphic Display LCD 128x64 module is 3.3V(typical value) for supply voltage.
3. This 12864 Graphic LCD module is with white LED backlight. SF-BS12864H-GW is FSTN Positive transflective mode.
4. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
5. This LCD module is originally without touch, but touch panel is customizable.
6. This module is widely used in POS terminal, cash reader, handheld device, mobile food ordering machine, meter and instrument, medical analyzer, etc.
Product: | Monochrome LCD Module | Resolution: | 128x64 Dots |
---|---|---|---|
View Direction: | 6 O'clock | LCD Type: | FSTN, Positive |
Polarizer Type: | Transflective | Module Size: | 65x84.4x7.8mm |
Viewing Area: | 57.6x36.6mm | Driver IC: | ST7567 |
Pin Number: | 16 Pins | Interfaces: | 4-line SPI Interface |
Operating Temp: | -20°C To +70°C | Supply Voltage: | 3.3V(Typical Value) |
Life Time: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
