Product Details:
|
| Product: | COG FSTN 160x160 LCD Module | Resolution: | 160x160 Graphics |
|---|---|---|---|
| LCD Type: | FSTN, Positive, Transflective | Optics: | 6:00 O'clock |
| Outline Dim.: | 82.2(L) X 76.0(W) X 9(T) Mm | Viewing Area: | 60.0(L) X 60.0(W) Mm |
| Dot Pitch: | 0.34(L) X 0.34mm Mm | Driving Method: | 1/160 Duty Cycle, 1/11 Bias |
| Operating Temp: | -40°C To +70°C ( Customizable ) | Pin Number: | 9 Pins |
| Controller: | ST75161 Or Equivalent | Interface: | 4 Wires SPI ( Can Be Customized ) |
| Connector: | Metal Pin ( Can Be Customized ) | Compliance: | REACH & RoHS Compliant |
| Highlight: | 160x160 FSTN LCD Display,FSTN LCD Display 3.3V,VDD FSTN LCD Module |
||
COG 160x160 Graphic FSTN LCD Display Module Positive ST75161 3.3V VDD SPI Interface With White LED Backlight
160x160 LCD, Graphic 160x160 SPI Display Description
SAEF Technology SF-160160-52 is a monochrome graphic type 160x160 COG LCD module. It is built in with ST75161 controller or equivalent IC and it supports SPI serial interface. SF-160160-52 graphic Display LCD 160x160 module is 3.3V (typical value) for supply voltage. It is with white side LED backlight.
SF-160160-52 is FSTN Transflective Positive mode. it can be operated at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +80℃. This LCD module is originally without touch, but touch panel is customizable. SF-160160-52 module is widely used in meter and instrument, remote controller, sensor device, POS terminal, cash reader, handheld device, mobile food ordering machine, medical analyzer, etc.
| Product: | COG FSTN 160x160 LCD Module | Resolution: | 160x160 Graphics |
|---|---|---|---|
| LCD Type: | FSTN, Positive, Transflective | Optics: | 6:00 O'clock |
| Outline Dim.: | 82.2(L) X 76.0(W) X 9(T) mm | Viewing Area: | 60.0(L) X 60.0(W) mm |
| Dot Pitch: | 0.34(L) X 0.34mm Mm | Driving Method: | 1/160 Duty Cycle, 1/11 Bias |
| Operating Temp: |
-40°C To +70°C ( Customizable ) |
Pin Number: | 9 Pins |
| Controller: | ST75151 Or Equivalent | Interface: |
4 Wires SPI ( Can Be Customized ) |
| Connector: |
Metal Pin ( Can Be Customized ) |
Compliance: | REACH & RoHS Compliant |
Why Choose us
1．We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2．Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3．Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4．Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
160x160 LCD, Graphic 160x160 SPI Display Drawing

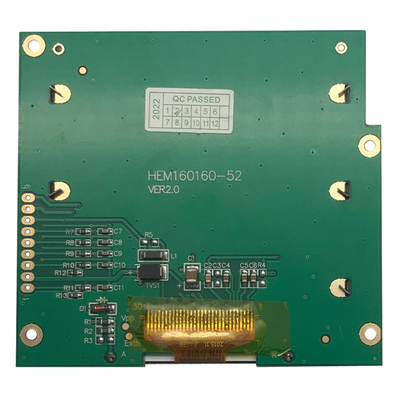

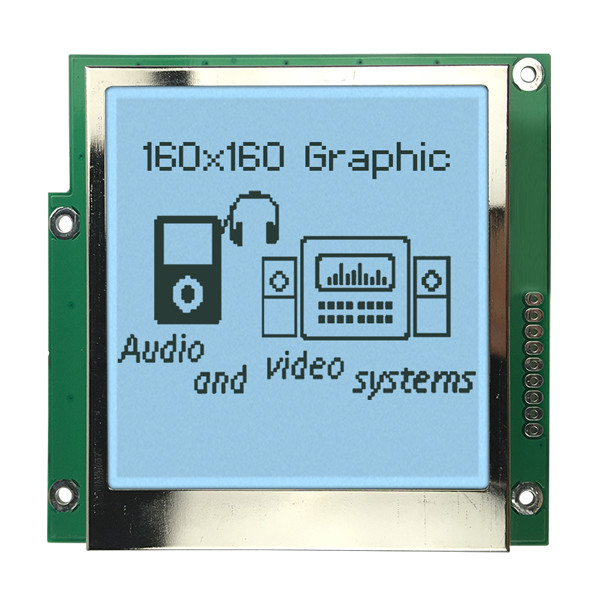

160x160 LCD, Graphic 160x160 SPI Display Real Product Image
