Product Details:
|
| Product: | FSTN 12864 LCD | Resolution: | 128x64 Graphics |
|---|---|---|---|
| LCD Type: | FSTN,Transflective,Positive | Optics: | 6:00 |
| Outline Dim.: | 32.5(L)*24(W)*3(H) Mm | Driving Method: | 1/64 Duty Cycle, 1/9 Bias |
| Operating Temp: | -10°C To +60°C ( Customizable ) | Pin Number: | 12 Pins ( Customizable ) |
| Controller: | ST7565R Or Equivalent | Interface: | SPI ( Customizable ) |
| Connector: | FPC ( Customizable ) | Compliance: | REACH & RoHS Compliant |
| Highlight: | FSTN 128x64 LCD Graphic Display,3.3V 128x64 LCD Graphic Display,SPI 128x64 graphic lcd |
||
128x64 Graphic LCD Display FSTN Positive COG 3.3V SPI Interface With White Backlight
FSTN 128x64 LCM, 12864 LCD Display Description
SAEF Technology SF-12864-205A3 is a monochrome graphic type 128x64 COG LCD module. SF-12864-205A3 model is built in with ST7565R controller or equivalent IC; it supports SPI serial interface.
This SF-12864-205A3 graphic Display LCD 128x64 module is 3.3V(typical value) for supply voltage. It is with white LED backlight.
SF-12864-205A3 is FSTN Transflective Positive mode. it can be operated at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃. This LCD module is originally without touch, but touch panel is customizable.
SF-12864-205A3 module is widely used in meter and instrument, remote controller, sensor device, POS terminal, cash reader, handheld device, mobile food ordering machine, medical analyzer, etc.
| Product: | FSTN 12864 LCD | Resolution: | 128x64 Graphics |
|---|---|---|---|
| LCD Type: | FSTN,Transflective,Positive | Optics: | 6:00 |
| Outline Dim.: | 32.5(L)*24(W)*3(H) Mm | Driving Method: | 1/64 Duty Cycle, 1/9 Bias |
| Operating Temp: | -10°C To +60°C ( Customizable ) | Pin Number: | 12 Pins |
| Controller: | ST7565R Or Equivalent | Interface: | SPI |
| Connector: | FPC ( Customizable ) | Compliance: | REACH & RoHS Compliant |
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
FSTN 128x64 LCM, 12864 LCD Display Drawing

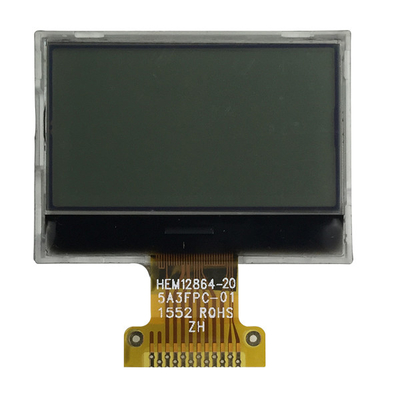

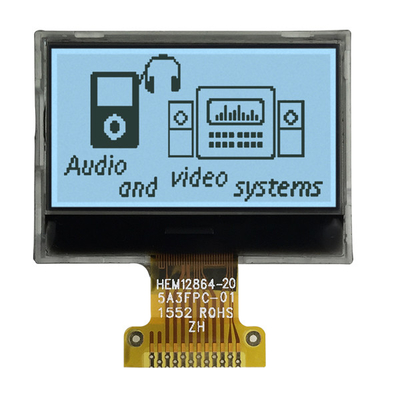

FSTN 128x64 LCM, 12864 LCD Display Real Product Image
