12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS
12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS

Large Image :  12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: GV121WXM-N80
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS

Description
Product: 12.1 Inch Industrial TFT Display Resolution: 1280 RGB X 800
Surface Luminance: 450 Cd/m2(nits) Interface: LVDS
Pin Number: 30pins Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Outline Dim.: 278.0(H)x184.0(V)×6.76(T) (mm) Active Area: 262.656(H)x164.16(V) (mm)
Touch Screen: CTP Optional Surface Treatment: Hard Coating(3H)
Display Colors: 16.7 M Connection: ZIF
Operating Temp.: -20℃ To +70℃ Storage Temp.: -30℃ To +80℃
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

12.1 Inch TFT LCD Display

,

30pins LVDS TFT LCD Display

,

GV121WXM-N80 HMI Screen

12.1 Inch TFT LCD Display GV121WXM-N80 HMI Screen 30pins LVDS Product Introduction

BOE GV121WXM-N80 Industrial TFT display is a 12.1inch IPS type full viewing angles screen with resolution of 1280x800 pixels. This industrial grade TFT LCD Display Module supports LVDS interface. this TFT LCD display GV121WXM-N80 is operated at 3.9V(Max value), Vdd is from 3.0V to 3.6V.

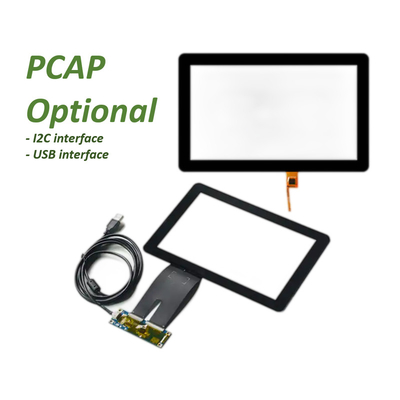

BOE GV121WXM-N80 is designed with capacitive touch panel, single touch and multi-touch optional. This TFT LCD module GV121WXM-N80 is with 450cd/m2 luminance. The TFT touch LCD
GV121WXM-N80 is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.

Product: 12.1 Inch Industrial TFT Display
Resolution: 1280 RGB X 800
Surface Luminance: 450 Cd/m2(nits)
Interface: LVDS
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Pin Number: 30pins
Outline Dim.: 278.0(H)x184.0(V)×6.76(T) (mm)
Active Area: 262.656(H)x164.16(V) (mm)
Surface Treatment: Hard Coating(3H)
Connection: ZIF
Touch Screen: CTP Optional
Display Colors: 16.7 M
Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃
Compliance: REACH & RoHS Compliant
Certificate: ISO9001:2015 / ISO1400:2015



Features

This 12.1 inch TFT Display is a color active matrix TFT LCD using amorphous silicon TFT's (ThinFilm Transistors) as an active switching devices.

This PCAP TFT LCD 12.1 inch display is GOA + dual Gate Design.

This 12.1 inch TFT screen is with Color Gamut Typ. 50% Min.45%.

The respond time of This 12.1 inch LCD TFT is Typ. 30ms, Max. 35ms.

This 12.1 inch 1280x800 TFT display has contrast ratio of Typ:1000 Min:800

This 12.1 inch LVDS TFT is controlled by HX8245-E04*2.


12.1 Inch TFT LCD Display GV121WXM-N80 HMI Screen 30pins LVDS Product Drawing

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 012.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 1

LCD Module Electrical Specifications

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 2


Absolute Maximum Ratings
12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 3

Note 1 : Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39 ℃ max. and no condensation of water



Power Consumption of Backlight

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 4


Optical Characteristics
12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 5

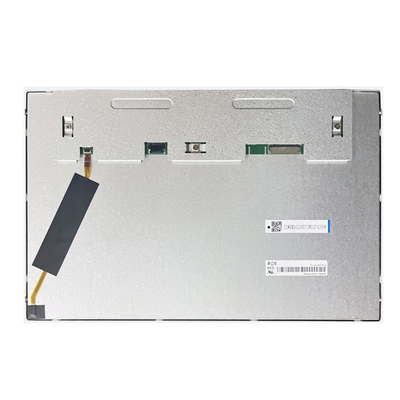

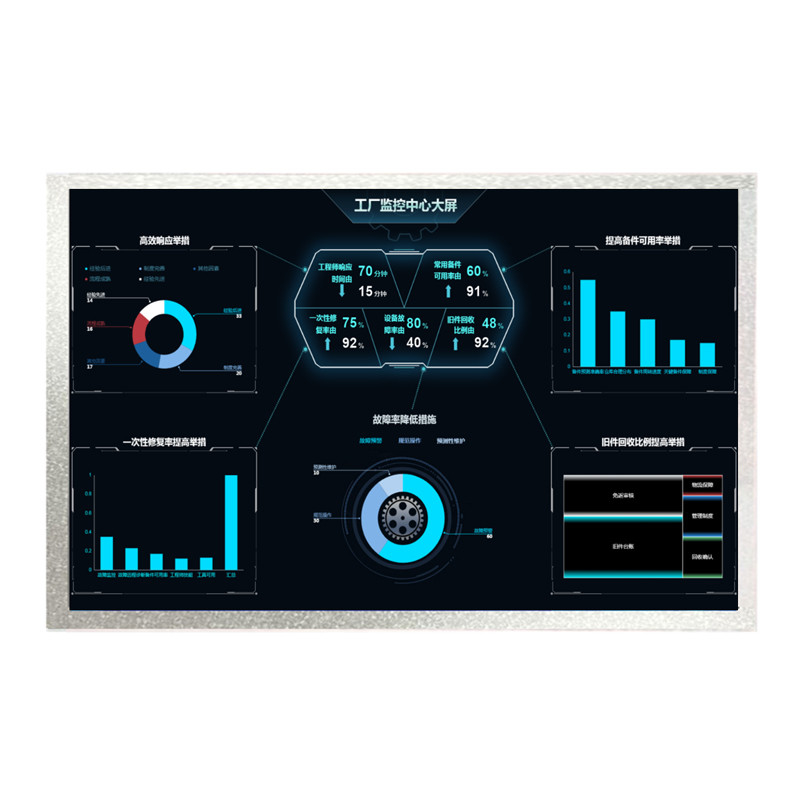

12.1 Inch TFT LCD Display GV121WXM-N80 HMI Screen 30pins LVDS Product Image

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 6

12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 7
12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 8
Factory Facilities and Certificates
12.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 912.1 Inch TFT LCD Display 1280x800 GV121WXM-N80 HMI Screen 30pins LVDS 10
