Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display

Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display

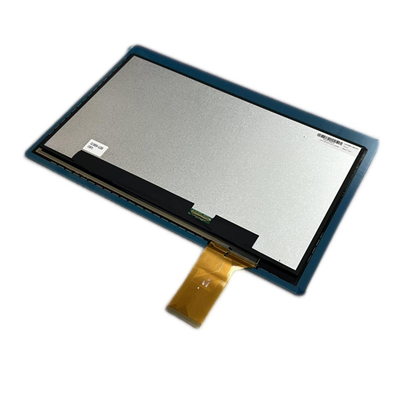

Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display

Large Image :  Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1330SM-7191ACT
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display

Description
Keywords: 13.3 Inch Capacitive Touchscreen TFT Resolution: 1920*1080 Pixels
LCD With Touch: 327.2 X 215.2 X 6.55 Mm (with Touch) Active Area: 293.76 X 165.24 (mm)
LCD Interface: EDP CTP Interface: USB
Touch Screen: CTP (Projective Capacitive Touch Screen) Surface Luminance: 300 Cd/m2
Operating Temp.: -10℃ To +60℃ Storage Temp.: -20℃ To +60℃
Display Type: IPS Full Viewing Angles Surface Treatment: Clear Type
Contrast Ratio: 800:1 LED Lifetime: 30,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant

SFTO1330SM-7191ACT SPECIFICATION.pdf

IPS TFT LCD Screen 13.3 Inch FHD EDP Display Product Introduction



A 13.3-inch FHD EDP monitor typically refers to a liquid crystal display with a 1920 × 1080 full HD resolution, featuring a 13.3-inch IPS TFT LCD panel and an enhanced display interface (eDP). Here are some key product features and parameters of SFTO1330SM-7191ACT:



Panel type: IPS TFT LCD, providing a wide viewing angle and color accuracy.
Resolution: 1920 × 1080 pixels, also known as Full HD (FHD) resolution, providing clear image details.
Brightness: The brightness of different models may vary, but it is generally around 350cd/m ², suitable for various usage environments.
Contrast ratio: 800:1, providing excellent light and dark detail representation.
Viewing angle: IPS technology provides a viewing angle of nearly 180 °, allowing color and contrast to be maintained from different angles.
Response time: usually around 30ms, sufficient for non professional graphic applications.
Color gamut: Covering 72% of NTSC color gamut, capable of displaying rich colors.
Interface: eDP interface, supporting 30 pin terminal connection, providing high-speed data transmission.
Backlight type: WLED backlight, providing uniform brightness and longer lifespan.
Working temperature: generally ranging from -10 to 60 ° C, suitable for various environmental conditions.
Capacitive Touchscreen: Offering capacitive touch screen functionality, supporting multi touch. allowing users to interact through touch. Capacitive touch screens have the characteristics of high transparency and fast response, making them suitable for applications that require direct interaction.




Mechanical Specifications



Parameter Specification Unit
Model number SFTO1330SM-7191ACT
Display size 13.3” (Diagonal) inch

outline dimensions

327.2 x 215.2 x 6.55

mm
Active area 293.76H) ×165.24(V) mm
Pixel Format

1920(H) ×1080(V)

(1pixel = R + G + B dot)

pixel
Pixel pitch 0.153(H) x 0.153 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Surface treatment of front polarizer Anti-glare coating: (3H)
Touchscreen Projected Capacitive Touch Panel





Product Drawing





Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display 0



Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display 1



Interface Pin Definition



Pin No. Symbol I/O Function
1 CABC_EN / NC - Reserved for CD
2 H_GND P High Speed round
3 Lane1_N I Complement Signal Link Lane 1
4 Lane1_P I True Signal Link Lane 1
5 H_GND P High Speed round
6 Lane0_N I Complement Signal Link Lane 0
7 Lane0_P I True Signal Link Lane 0
8 H_GND P High Speed round
9 AUX_CH_P I True Signal Auxiliary Channel
10 AUX_CH_N I Complement Signal Auxiliary Channel
11 H_GND P High Speed round
12 LCD_VDD P LCD logic and driver power(3.3V)
13 LCD_VDD P LCD logic and driver power(3.3V)
14 NC I Reserved for LCD manufacturer’s use
15 LCD_GND P LCD logic and driver ground
16 LCD_GND P LCD logic and driver ground
17 HPD O HPD signal pin
18 LED-1 P Backlight ground
19 LED-2 P Backlight ground
20 LED-3 P Backlight ground
21 LED-4 P Backlight ground
22 BL ENABLE I Backlight on/off
23 BL PWM DIM I System PWM
24 SCL/NC - Reserved for LCD manufacturer’s use
25 SDA/NC - Reserved for LCD manufacturer’s use
26 BL PWR P Backlight power
27 BL PWR P Backlight power
28 BL PWR P Backlight power
29 BL PWR P Backlight power
30 NC - Reserved for LCD manufacturer’s use





PCAB USB Pin Definition

1 VCC

2 USB-

3 USB+

4 GND





Absolute Maximum Ratings



Parameter Symbol Min. Max. Unit Remarks
Back-light Power Supply Voltage HVDDOUT - - V Ta = 25 ℃ Note 1&2 Remarks
Back-light LED Current IHVDD - - mA
Back-light LED Reverse Voltage VR - - V
Operating Temperature TOP -10 60



Ta = 25 ℃ Note 1&2

Storage Temperature TST -20 60
Operating Ambient Humidity Hop - 90 %RH
Storage Humidity Hst - 90 %RH
Heat Release Requirement Trls 15





TFT LCD Electronical Specifications



Parameter Symbol Ratings Unit
MIN TYP MAX
Power Supply Input Voltage V DD 3.0 3.3 3.6 V
Power Supply Current IDD - - - mA
LED Driver Power Supply Voltage HVDD 2.7   24 V
LED Driver Power Supply Current IHVDD   20 - mA
LED Power Consumption PLED   2.7   W
Positive-going Input Threshold Voltage VIT+     +100 mV
Negative-going Input Threshold Voltage VIT- -100     mV
Differential input common mode voltage Vcom   TBD   V





Backlight Electronical Specifications



Parameter Symbol Min. Typ. Max. Unit
Supply voltage VBL 5 12.0 37 V
Power supply Current for Back light ILED 6



-

25 mA
Power supply for Back light PLED 0.18 - 5.55 W
Modulated light signal voltage VPWM H 1.2 - 5.0 V
VPWM L 0 - 0.6 V
Brightness Control Duty Ratio Duty 1 - 100 %
Brightness Control frequency fPWM 100 - 1,600 KHz
LED-BL ON/OFF High voltage VCNTH 1.2   5.0 V
LED-BL ON/OFF low voltage VCNTL 0 - 0.6 V
LED lifetime - 30,000 40,000 - h





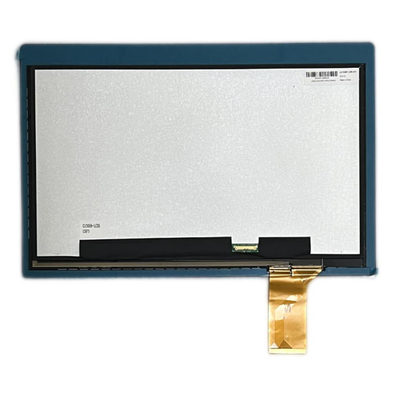

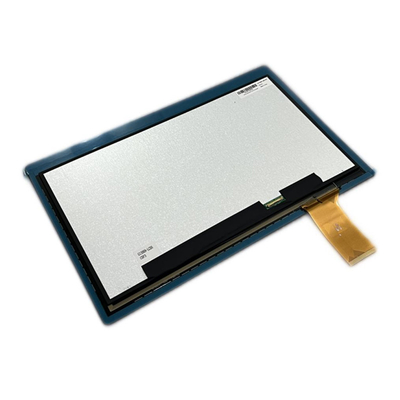

Product Image

Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display 2Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display 3Capacitive Touchscreen IPS TFT LCD Screen 13.3 Inch FHD EDP Display 4
