Product Details:
|
| Product: | COG FSTN 192x64 LCD Module | Resolution: | 194x64 Graphics |
|---|---|---|---|
| LCD Type: | FSTN, Positive, Transmissive | Optics: | 12:00 |
| Outline Dim.: | 58.0(L) X 24.4(W) X 5.15(H) Mm | Viewing Area: | 51.0mm(L) X 17.2mm(W) |
| Dot Pitch: | 0.25mm(L) X 0.25mm(W) | Driving Method: | 1/64 Duty Cycle, 1/9 Bias |
| Operating Temp: | -10°C To +60°C ( Customizable ) | Pin Number: | 16 Pins ( Can Be Customized ) |
| Controller: | UC1609C Or Equivalent | Interface: | SPI ( Can Be Customized ) |
| Connector: | FPC ( Can Be Customized ) | Compliance: | REACH & RoHS Compliant |
| Highlight: | 192x64 Monochrome Graphic LCD Display,COG Monochrome Graphic LCD Display,3.3V 192x64 lcd display |
||
Monochrome COG 192x64 Graphic LCD Display Module FSTN Positive UC1609C 3.3V SPI Interface With White LED Backlight
192x64 LCD, Graphic 192x64 Display Description
SAEF Technology SF-19264-05 is a monochrome graphic type 192x64 COG LCD module. It is built in with UC1609C controller or equivalent IC and it supports SPI serial interface.
SF-19264-05 graphic Display LCD 192x64 module is 3.3V(typical value) for supply voltage. It is with white LED backlight.
SF-19264-05 is FSTN Transmissive Positive mode. it can be operated at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃. This LCD module is originally without touch, but touch panel is customizable.
SF-19264-05 module is widely used in meter and instrument, remote controller, sensor device, POS terminal, cash reader, handheld device, mobile food ordering machine, medical analyzer, etc.
| Product: | COG FSTN 192x64 LCD Module | Resolution: | 194x64 Graphics |
|---|---|---|---|
| LCD Type: | FSTN, Positive, Transmissive | Optics: | 12:00 |
| Outline Dim.: | 58.0(L) X 24.4(W) X 5.15(H) (mm) | Viewing Area: | 51.0mm(L) X 17.2mm(W) (mm) |
| Dot Pitch: | 0.25mm(L) X 0.25mm(W) | Driving Method: | 1/64 Duty Cycle, 1/9 Bias |
| Operating Temp: | -10°C To +60°C ( Customizable ) | Pin Number: | 16 Pins ( Can Be Customized ) |
| Controller: | UC1609C Or Equivalent | Interface: | SPI ( Can Be Customized ) |
| Connector: | FPC ( Can Be Customized ) | Compliance: | REACH & RoHS Compliant |
192x64 LCD, Graphic 192x64 Display Drawing

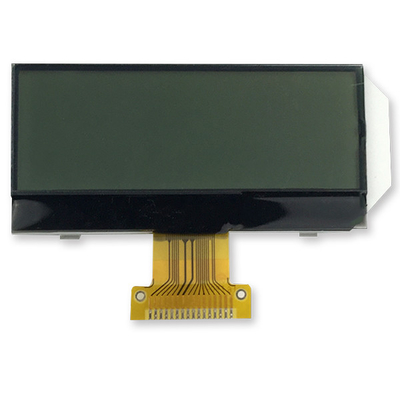

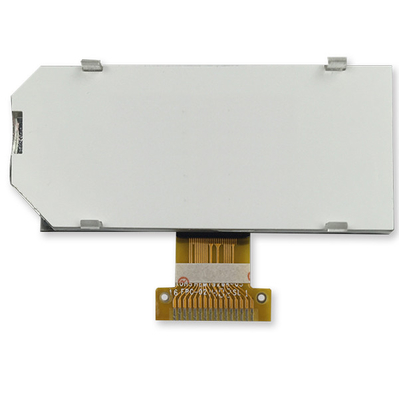

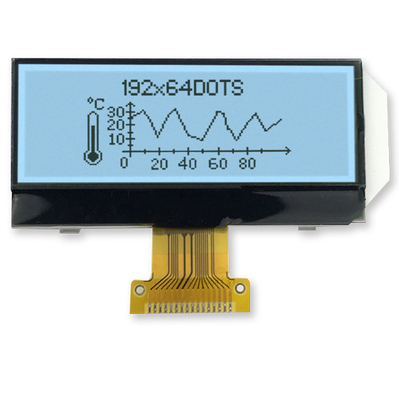

192x64 LCD, Graphic 192x64 Display Real Product Image
