Product Details:
|
Product: | 128x32 Mono Graphic Module | Resolution: | 128x32 Pixel |
---|---|---|---|
LCD Type: | FSTN,Transflective,Positive | Optics: | 6 O'Clock |
Outline Dim.: | 41.4x24.3x4.0 Mm | Backlight: | White, 3.0V, 30mA |
Operating Temp: | -20°C To +70°C | Pin Number: | 17 Pins |
Controller: | ST7565R | Interface: | 4-Line SPI |
Connector: | COG+FPC | Compliance: | REACH & RoHS Compliant |
Highlight: | 128x32 Monochrome Graphic LCD Display,SPI Monochrome Graphic LCD Display,COG 128x32 LCD Display |
Monochrome Graphic LCD Display 128x32 Dots COG with ST7565R IC and SPI interface
128x32 Graphic type Monochrome LCD Description
SAEF Technology SF-12832-156 is a monochrome graphic type128x32 COG LCD module. SF-12832-156 model is built in with ST7565R controller or equivalent IC; it supports 4-line SPI serial interface.
This SF-12832-156 graphic Display LCD 128x32 module is 3.3V(typical value) for supply voltage. It is with white LED backlight. SF-12832-156 is FSTN Transflective Positive mode.
This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This LCD module is originally without touch, but touch panel is customizable.
Product Quick Details:
1. LCD Size: Graphic Monochrome LCD Module
2. Resolution: 128x32
3. Viewing Angle: 6:00
4. Outline Dimension: 41.4x24.3x4.0mm
5. Driver IC: ST7565R
6. LCM Interface Type: 4-line SPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Without Touch Panel(Customizable)
9. This module is widely used in meter and instrument, remote controller, sensor device, POS terminal, cash reader, handheld device, mobile food ordering machine, medical analyzer, etc.
Product: | Monochrome Graphic LCD Display | Resolution: | 128x32 |
---|---|---|---|
LCD Type: | FSTN,Transflective,Positive | Optics: | 6 O'Clock |
Outline Dim.: | 41.4x24.3x4.0 Mm | Backlight: | White, 3.0V, 30mA |
Operating Temp: | -20°C To +70°C | Pin Number: | 17 Pins |
Controller: | ST7565R | Interface: | 4-Line SPI |
Connector: | COG+FPC | Compliance: | REACH & RoHS Compliant |
128x32 Graphic type Monochrome LCD Drawing

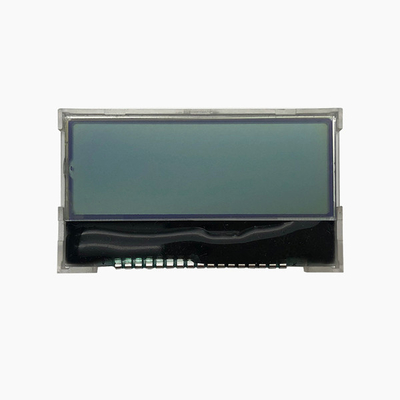

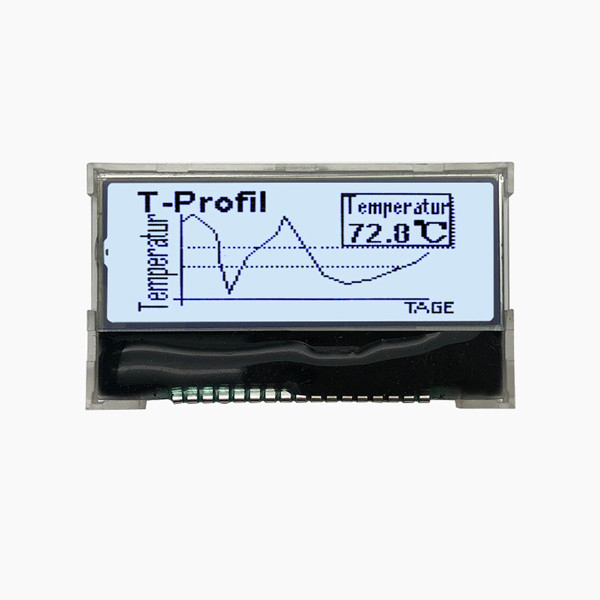

128x32 Graphic type Monochrome LCD Real Product Image
