Product Details:
|
Product: | 1.77 Inch TFT Display | Resolution: | 128x160 |
---|---|---|---|
Touch Screen: | Optioinal | Cover Glass Dimension: | Customizable |
Viewing Direction: | 12:00 | Interface: | SPI |
Pin Number: | 14 Pins | Connection: | Soldering |
Surface Luminance: | 200 Cd/m2 ( 1000 Nits Optional ) | LED Lifetime: | 40,000 Hours |
Operating Temp.: | -20°C To +70°C | Storage Temp.: | -30°C To +80°C |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Portrait 1.77 Inch TFT LCD Display SPI 128x160 ST7735 Driver Touch Screen Optional, TFT LCD 1.77 Inch Product Description
SFTO177DG-7062A-N is a 1.77 inch portrait mode TFT LCD module with 128x160 dot resolution. It supports mpu 8 bit interface, widely use in handheld devices, medical devices, and some other small size consumer electronics. SFTO177DG-7062A-N FT LCD module is built-in with ST7735 IC ( compitable with ILI9163V IC). supply voltage for analog (Vcc) range from 2.6V to 3.3V, typical value 2.8V. This module is having anti-glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock.
SF-TS177H-8784A-N module is a Portrait mode TFT-LCD and it's available as well for resistive touch screen option whose part no. SFTO177DG-7062A-T. The working temperatures is from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.
Product: | 1.77 Inch TFT Display | Resolution: | 128x160 |
---|---|---|---|
Touch Screen: | Optioinal | Cover Glass Dimension: | Customizable |
Viewing Direction: | 12:00 | Interface: | SPI |
Pin Number: | 14 Pins | Connection: | Soldering |
Surface Luminance: | 200 Cd/m2 | LED Lifetime: | 40,000 Hours |
Operating Temp.: | -20°C To +70°C | Storage Temp.: | -30°C To +80°C |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Portrait 1.77 Inch TFT LCD Display SPI 128x160 ST7735 Driver Touch Screen Optional, TFT LCD 1.77 Inch Product Drawing
Pin Description
1 NC NC
2 GND System ground
3 BL_K Backlight LED Cathode.
4 BL_A Backlight LED Athode.
5 GND System ground
6 RESET Reset Signal pin (“Low” is enable)
7 RS Data or command select pin. “H”: Date, “L”:Command.
8 SDA Serial data input/output PIN
9 SCK Serial interface Clock input
10 IOVCC Power supply(1.8)
11 VCC Power supply(2.8)
12 CS Chip Selected (“Low” is enable)
13 GND System ground
14 NC NC
Initial code:
//ST7735S+HSD177
WriteComm(0x11); //Sleep out
Delay(120); //Delay 120ms
//------------------------------------ST7735S Frame Rate-----------------------------------------//
WriteComm(0xB1);
WriteData(0x05);
WriteData(0x3A);
WriteData(0x3A);
WriteComm(0xB2);
WriteData(0x05);
WriteData(0x3A);
WriteData(0x3A);
WriteComm(0xB3);
WriteData(0x05);
WriteData(0x3A);
WriteData(0x3A);
WriteData(0x05);
WriteData(0x3A);
WriteData(0x3A);
//------------------------------------End ST7735S Frame Rate-----------------------------------------//
WriteComm(0xB4); //Dot inversion
WriteData(0x03);
WriteComm(0xC0);
WriteData(0x62);
WriteData(0x02);
WriteData(0x04);
WriteComm(0xC1);
WriteData(0XC0);
WriteComm(0xC2);
WriteData(0x0D);
WriteData(0x00);
WriteComm(0xC3);
WriteData(0x8D);
WriteData(0xEA);
WriteComm(0xC4);
WriteData(0x8D);
WriteData(0xEE);
//---------------------------------End ST7735S Power Sequence-------------------------------------//
WriteComm(0xC5); //VCOM
WriteData(0x0D);
WriteComm(0x36); //MX, MY, RGB mode
WriteData(0xC8);
//------------------------------------ST7735S Gamma Sequence-----------------------------------------//
WriteComm(0xE0);
WriteData(0x0A);
WriteData(0x1F);
WriteData(0x0E);
WriteData(0x17);
WriteData(0x37);
WriteData(0x31);
WriteData(0x2B);
WriteData(0x2E);
WriteData(0x2C);
WriteData(0x29);
WriteData(0x31);
WriteData(0x3C);
WriteData(0x00);
WriteData(0x05);
WriteData(0x03);
WriteData(0x0D);
WriteComm(0xE1);
WriteData(0x0B);
WriteData(0x1F);
WriteData(0x0E);
WriteData(0x12);
WriteData(0x28);
WriteData(0x24);
WriteData(0x1F);
WriteData(0x25);
WriteData(0x25);
WriteData(0x26);
WriteData(0x30);
WriteData(0x3C);
WriteData(0x00);
WriteData(0x05);
WriteData(0x03);
WriteData(0x0D);
//------------------------------------End ST7735S Gamma Sequence-----------------------------------------//
WriteComm(0x3A); //65k mode
WriteData(0x05);
WriteComm(0x29); //Display on

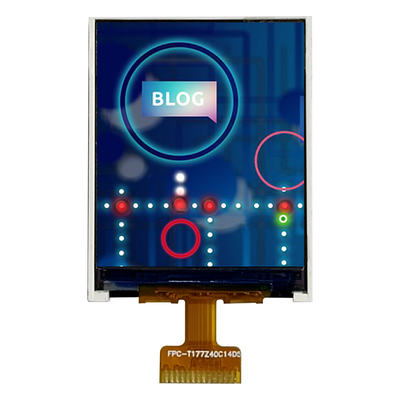

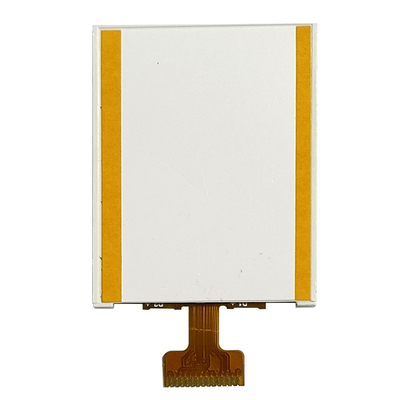

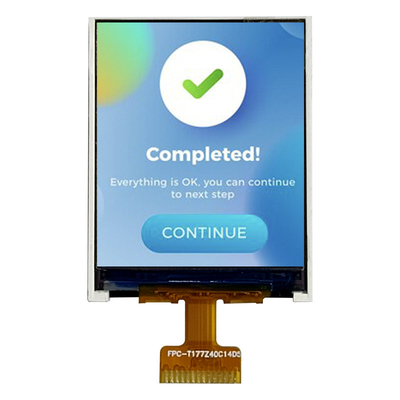

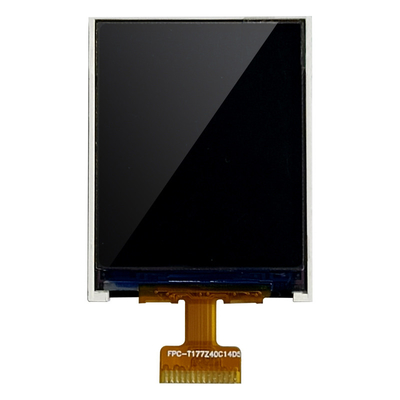

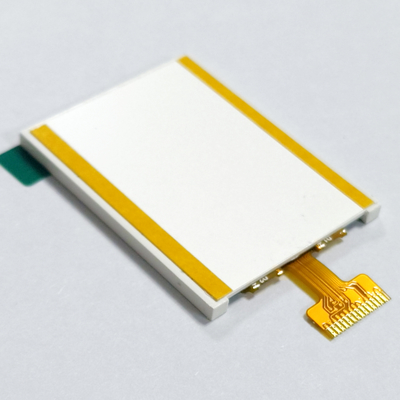

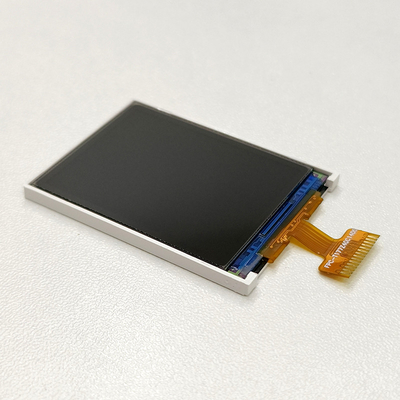

Portrait 1.77 Inch TFT LCD Display SPI 128x160 ST7735 Driver Touch Screen Optional, TFT LCD 1.77 Inch Product Image
Factory Facilities and Certification
Portrait 1.77 Inch TFT LCD Display SPI 128x160 ST7735 Driver Touch Screen Optional, for TFT LCD 1.77 Inch more information, pls send enquiry to sales2@saef.com.cn or ck@saef.com.cn
