Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC700B-8619A-CT3/CT4
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

1024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle

Description
Keywords: 7" Inch TFT LCD Touch Module Touch Screen: PCAP(Capacitive Touch Screen)
Resolution: 1024x600 Cover Glass Dimension: Optional For Customization
LCM Interface: RGB Interface Surface Luminance: 200 Cd/m2
LED Lifetime: 40,000 Hours Pins: 50 PINs
Viewing Direction: Free(80/80/80/80) CTP Interface: I2C
Operating Temp.: –20℃ To +70℃ Compliance: REACH & RoHS Compliant
Highlight:

1024x600 7 Inch TFT Touch Screen

,

IPS 7 Inch TFT Touch Screen

,

TFT PCAP Touch Panel

7" Inch TFT LCD Touch Module IPS Full Viewing Angle 1024x600 dots with RGB Interface with PCAP





SAEF Technology SF-TC700B-8619A-CT3/CT4 is a 7”inch IPS type full viewing angle TFT LCD Display with resolution of QVGA 1024x600 pixels. It is with Capacitive Touch Screen(CTP), both black color and white color cover glass available.

This LCD module is has outline dimension of 182.5*151*5.38 mm, and AA size of 154.21x85.92 mm. This 7" TFT LCD is with PCAP(Capacitive Touch Screen). SF-TC700B-8619A-CT3 is with white cover glass, and SF-TC700B-8619A-CT4 is with black cover glass. The LCM interface is with RGB interface, 50 pins. The CTP interface is I2C. SF-TC700B-8619A-CT3/CT4 is with 320cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–20℃ to +70℃.



Keywords: 7" Inch TFT LCD Touch Module Touch Screen: PCAP(Capacitive Touch Screen)
Resolution: 1024x600 Cover Glass Dimension: Optional For Customization
LCM Interface: RGB Interface Surface Luminance: 200 Cd/m2
LED Lifetime: 40,000 Hours Pins: 50 PINs
Viewing Direction: Free(80/80/80/80) CTP Interface: I2C
Operating Temp.: –20℃ To +70℃ Compliance: REACH & RoHS Compliant





7 inch TFT LCD Touch Module Drawing



1024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 0



1024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 1

CTP interface



Pin1, GND

Pin2, SDA   1.8V

Pin3, SCL   1.8V

Pin4, VCC   2.8V

Pin5, INT   1.8V

Pin6, RST  1.8V



Interface Pin Definition

PIN NO. SYMBOL Definition
1 LED+ Power for LED backlight (Anode)
2 LED+ Power for LED backlight (Anode)
3 LED- Power for LED backlight (Cathode)
4 LED- Power for LED backlight (Cathode)
5 GND GROUND(0V)
6 VCOM A supply voltage to the common electrode of TFT panel
7 DVDD Power for Digital and Analog Circuit
8 MODE DE/SYNC mode select. MODE=0:SYNC Mode; MODE=1:DE Mode;
9 DE Data input Enable for TTL mode.
10 VS Vertical Sync Input
11 HS Horizontal Sync Input
12~19 B7~B0 Blue data
20~27 G7~G0 Green data
28~35 R7~R0 Red data
36 GND GROUND(0V)
37 DCLK Parallel RGB clock input.
38 GND GROUND(0V)
39 L/R Left / right selection
40 U/D Gate Driver Up/down scan setting
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reser pin
45 NC No connection
46 VCOM A supply voltage to the common electrode of TFT panel
47 DITHB Dithering function enable/ disable.
48 GND GROUND(0V)
49 NC No connection
50 NC No connection

Backlight Electrical-optical Characteristics

Item Symbol MIN TYP MAX UNIT Test



Condition

Note
Supply Voltage Vf 9.3 9.6 9.9 V If=160 mA
Supply Current If 160 mA
Reverse Voltage Vr 5 V
Power dissipation Pd 1536 mW
Luminous Intensity for LCM



300 320 350 Cd/m2 If=160mA
Uniformity for LCM 80 If=160 mA
Backlight Color White

Reliability Test

Item Condition Time (hrs) Assessment
High temp. Storage 80°C 120



No abnormalities

in functions

and appearance

High temp. Operating 70°C 120
Low temp. Storage -30°C 120
Low temp. Operating -20°C 120
Humidity 60°C/ 90%RH 120
Thermal Shock Temp. Cycle -20°C ¬ 25°C ®70°C



(0.5 hour ¬ 5 min ® 0.5 hour)

10cycles

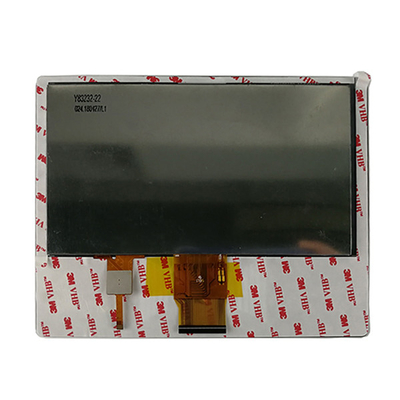

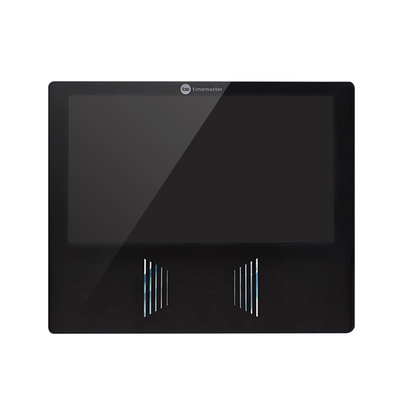

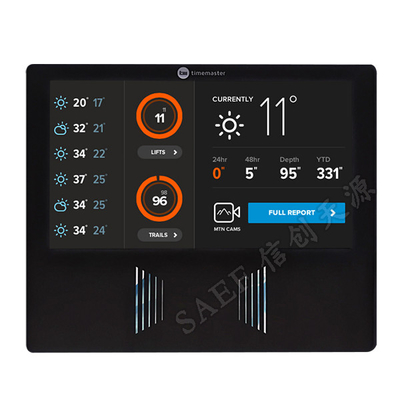

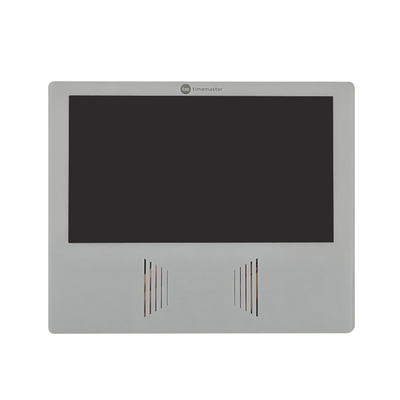

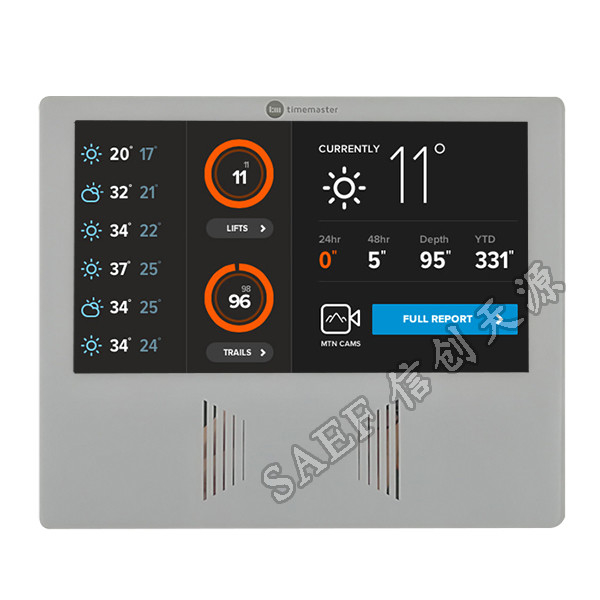

7 inch TFT LCD Touch Module Real Product Photos

1024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 21024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 31024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 41024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 51024x600 Dots 7 Inch TFT Touch Screen , PCAP Touch Panel Full Viewing Angle 6
