Product Details:
|
Product: | 4"inch PCAP TFT Display | Touch Screen: | With Capacitive Touch Screen |
---|---|---|---|
Resolution: | 480x800 | Viewing Direction: | IPS All Viewing Angles |
Driver IC: | NT35510 | Pin Number: | 51 Pins |
Connection: | Plugging | Surface Luminance: | 400 Cd/m2 (nits) |
Interface: | SPI + RGB 24 Bits | LED Lifetime: | 40,000 Hours |
Power Supply Voltage For Logic: | 0.3~4.6 | Input Voltage: | VDD+0.3 V |
Operating Temperature: | -20 To 70 °C | Storage Temperature: | -30 To 80 °C |
Backlight Supply Voltage: | 25.6 V | Backlight Supply Current: | 20 MA |
Backlight Power Dissipation: | 512 MW | Backlight Color: | White |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
PCAP TFT Display 4 Inch (3.97"), 4 Inch TFT LCD SPI+RGB Interface IPS Capacitive Touch Screen Product Introduction
Saef Tech SF-TC397B-8774C-CT is a diagonal size 3.97”inch(4.0” inch) IPS type TFT LCD Display with resolution 480x800 pixels.
Product Features:
1. SF-TC397B-8774C-CT is TFT LCD module is a 3.97” inch(4.0” inch) diagonal size, 480x800, full color TFT LCD display with Capacitive Touch Screen (CTP).
2. This module supports SPI and RGB 24 bits Interface. SF-TC397B-8774C-CT model is having module dimension of 65.4*112.9*4.5 m and Active area size of 51.84 x 86.40 mm;
3. SF-TC397B-8774C-CT is integrated with NT35510 controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.
4. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
5. SF-TC397B-8774C-CT is portrait mode LCD module, with 400 cd/m2 luminance. If you would like to use it as portrait mode or adjust the luminance, please contact with us for more technical support.
6. SF-TC397B-8774C-CT FPC can be customized, and optional to be with or without Capacitive Touch Screen.
Product: | 4"inch PCAP TFT Display |
Resolution: | 480x800 |
Driver IC: | NT35510 |
Connection: | Plugging |
Interface: | SPI + RGB 24 Bits |
Power Supply Voltage For Logic: | 0.3~4.6 |
Touch Screen: | With Capacitive Touch Screen |
Viewing Direction: | IPS All Viewing Angles |
Pin Number: | 51 Pins |
Surface Luminance: | 400 Cd/m2 (nits) |
LED Lifetime: | 40,000 Hours |
Input Voltage: | VDD+0.3 V |
Operating Temperature: | -20 To 70 °C |
Storage Temperature: | -30 To 80 °C |
Backlight Supply Current: | 20 MA |
Backlight Color: | White |
Backlight Supply Voltage: | 25.6 V |
Backlight Power Dissipation: | 512 MW |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | Rohs & Reach Compliant |
PCAP TFT Display 4 Inch (3.97"), 4 Inch TFT LCD SPI+RGB Interface IPS Capacitive Touch Screen Product Drawing
Product Advantages
1. IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3. Wide Temperature of Top of -20℃ to +70℃ for industrial applications.
4. Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5. Low-cost solution among the same kinds in the LCD industry.
6. Easy to install and easy to maintain.
Customer Service
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training before delivery.
6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.
For designing or further discussion, it is better to contact us by email / phone for more clear and accurate LCD solution proposal for you. .
2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.
We also support standard solutions and customized design solutions.
We have off-shelf and design-in products to provide customer with one-stop solutions.
3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and replaced.
4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.

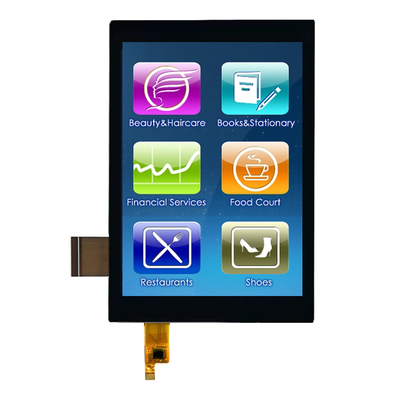

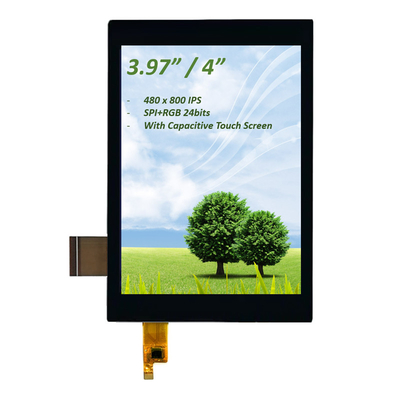

PCAP TFT Display 4 Inch (3.97"), 4 Inch TFT LCD SPI+RGB Interface IPS Capacitive Touch Screen Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) touch
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF
technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
