Product Details:
|
Keywords: | 7" Inch TFT LCD Touch | Touch Screen: | Capacitive Touch Screen(CTP) |
---|---|---|---|
Resolution: | 1024x600 | Cover Glass Dimension: | Optional For Customization |
LCM Interface: | RGB | Surface Luminance: | 200 Cd/m2 |
LED Lifetime: | 40,000 Hours | Pins: | 50 Pins |
Viewing Direction: | All | CTP Interface: | I2C |
Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Highlight: | TFT LCD Touch Screen 7Inch,RGB TFT LCD Touch Screen Module,IPS TFT LCD 1024x600 |
TFT LCD Touch 7" Inch 1024x600 IPS Full Viewing Angle RGB Interface With Capacitive Touch Screen
7 inch TFT LCD Touch Module Description
SAEF Technology SF-TO700B-8834A-CT is a 7”inch IPS type full viewing angle TFT LCD Display with resolution of QVGA 1024x600 pixels. It is a hot sales product and very popular among customers.
Product Quick Details:
1. LCD Size: 7” inch TFT
2. Resolution: 1024x600
3. Viewing Angle: Free
4. Outline Dimension: 164.90×100.00×5.87 mm
5. LCD Driver IC: ILI6150C
6. LCD Interface Type: RGB
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)
Keywords: | 7" Inch TFT LCD Touch | Touch Screen: | Capacitive Touch Screen(CTP) |
---|---|---|---|
Resolution: | 1024x600 | Cover Glass Dimension: | Optional For Customization |
LCM Interface: | RGB | Surface Luminance: | 200 Cd/m2 |
LED Lifetime: | 40,000 Hours | Pins: | 50 Pins |
Viewing Direction: | All | CTP Interface: | I2C |
Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3. Wide Temperature of Top of -20℃ to +70℃ and high quality level for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Price competitive solution with good quality among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.
Application
This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
7 inch TFT LCD Touch Drawing

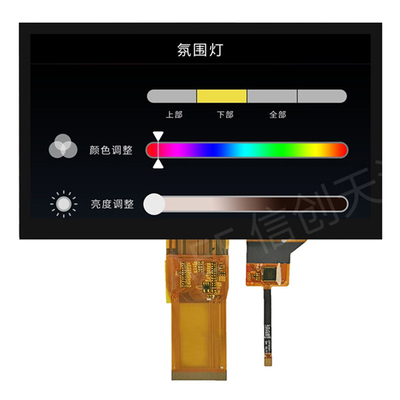

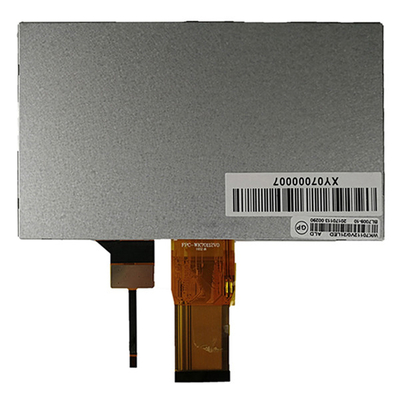

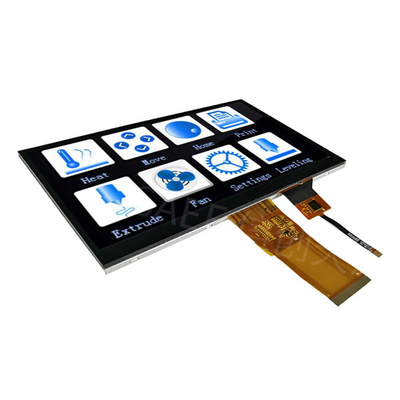

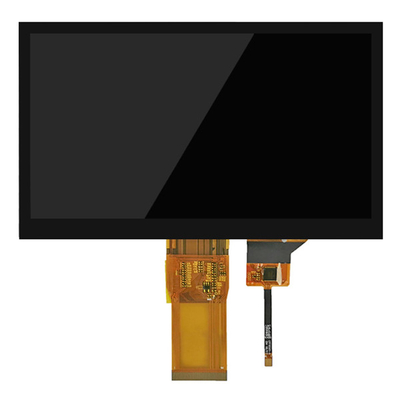

7 inch RGB TFT Resistive Touch Display Module Real Product Photos
SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN
SIZE |
DETAIL |
OUR P/N |
7 inch |
800x480 Landscape type, with control board |
SF-TC700I-9239C-T |
7 inch |
1024x600 Landscape type, with or without CTP, RGB interface |
SF-TC700B-8619A-N/CT |
7 inch |
1024x600 Landscape type, with or without CTP, MIPI interface |
SF-TO700B-8857A-N/CT |
|
|
|
