Product Details:
|
| Product: | TFT LCD Display | Screen Size: | 13.3 Inch (Diagonal) |
|---|---|---|---|
| Resolution: | 1920 (H) X 1080 (V) Full HD | Brightness: | 2000 Cd/m² (nits), High Brightness |
| Interface: | EDP – 2 Lanes | Touchscreen (CTP): | PCAP Glass-Glass Optional |
| Top:: | -20°C To +70°C (Wide Temp) | Viewing Angle: | 89° All Directions (CR > 10) |
| Color Gamut: | 72% NTSC (Typical) | Panel Type: | A-Si TFT, Normally Black, IPS |
| Key Application: | Industrial HMI, Medical, POS | Compliance: | REACH, RoHS, Halogen-Free |
| Highlight: | 13.3-inch 2000 nits TFT LCD,FHD eDP industrial display,sunlight-readable high brightness display |
||
Break Through the Brightness Barrier – 2000 nits of Sunlight-Readable Performance

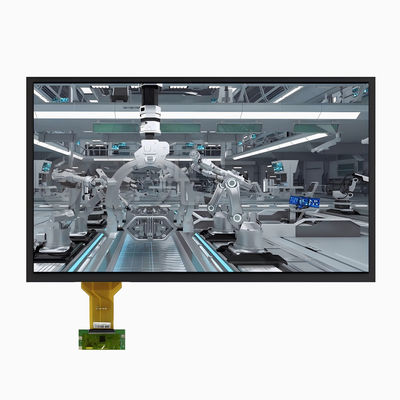

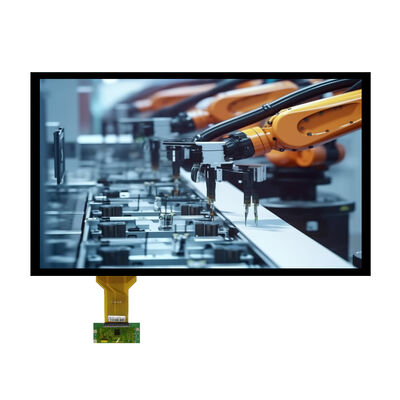

Standard TFT displays operate at 200–500 nits, adequate for controlled indoor environments but rendered virtually unreadable under direct sunlight. The SFTO1330WN-7432A-CT2 from Saef Technology Limited shatters this limitation, delivering a staggering 2000 cd/m² typical brightness – four to ten times that of conventional panels. This 13.3-inch Full HD module is engineered for engineers who refuse to compromise on outdoor visibility, industrial durability, or integration flexibility.
Conquer Ambient Light with High-Brightness Engineering
At 2000 nits, this display produces vibrant, crisp images even in direct sunlight. The 1000:1 contrast ratio ensures deep blacks and brilliant whites, while 89° ultra-wide viewing angles maintain color accuracy and legibility from any perspective. Whether deployed in outdoor kiosks, marine navigation systems, or industrial control panels, this module transforms challenging lighting conditions into a visual advantage.
Built for the Real World – Rugged, Reliable, and Ready
The integrated projected capacitive touch panel features chemically strengthened cover glass with ≥6H pencil hardness, anti-glare (10% haze) treatment, and anti-UV surface protection. The ILI12511 touch controller supports both 3.3V and 5V operation with I²C, USB, or UART interfaces, delivering reliable touch performance even in fog or with surface water droplets. Operating from -20°C to +70°C and storage from -30°C to +80°C, this module is certified for the harshest environments.
Technical Specifications for System Integration
| Parameter | Value |
|---|---|
| Active Area | 293.76mm × 165.24mm |
| Pixel Pitch | 0.153mm × 0.153mm |
| Display Colors | 16.7M |
| Interface | eDP 2 lanes |
| Clock Frequency | 100–147.8 MHz |
| Frame Rate | 60 Hz |
| Backlight Type | Edge-lit LED |
| Backlight Voltage | 27V–33V (typ. 30V) |
| Backlight Current | 600mA total (300mA per string) |
| LED Lifetime | 40,000 hours |
| Touch Controller | ILI12511 |
| Touch Interface | I²C / USB / UART (selectable) |
| Touch Voltage | 3.3V or 5V (selectable) |
Customization & Engineering Support
While this module comes as a complete display-touch-driver solution, Saef offers semi-custom and full-custom options to match your exact requirements:
Optical Customization: Adjust brightness levels, anti-glare finish, or add anti-fingerprint (AF) coating
Mechanical Modifications: Tailor outline dimensions, FPC length, or mounting hole positions
Touch Upgrades: Integrate different touch controllers or support glove-touch functionality
Interface Adaptation: Modify eDP lane count or add LVDS output options
Firmware Tuning: Customize OSD language, color engine, or DCR settings
Why 2000 Nits Matters
The 2000-nit threshold is the industry benchmark for true sunlight readability. While 1000-nit displays offer partial visibility, 2000 nits ensures clear, strain-free viewing even under the brightest summer sun. This module delivers that performance without excessive power draw or thermal issues, thanks to advanced LED backlight engineering.
Designed by Engineers, for Engineers.
At Saef, we partner with engineering teams from concept to production – providing detailed technical documentation, evaluation samples, and responsive design support to ensure your display solution performs flawlessly in the field.
Mechanical Dimensions
![]()
Touchscreen Mechanical Dimensions
![]()
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
| Operating Temperature | TOP | +20 | +70 | ℃ |
| Storage Temperature | TST | -30 | +80 | ℃ |
| Operating Ambient Humidity | Hop | - | 90 | %RH |
| Storage Humidity | Hst | - | 90 | %RH |
| Heat Release Requirement | Trls | 15 | ℃ | |
TFT LCD Module Electrical Characteristics
|
Parameter |
Symbol | Ratings |
Unit |
||
| MIN | TYP | MAX | |||
| Power Supply Input Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Power Supply Current | IDD | - | - | - | mA |
|
LED Driver Power Supply Voltage |
HVDD | 2.7 | 24 | V | |
|
LED Driver Power Supply Current |
IHVDD | 20 |
- |
mA | |
| LED Power Consumption | PLED | 2.7 | W | ||
| Positive-going Input Threshold Voltage | VIT+ | +100 | mV | ||
| Negative-going Input Threshold Voltage | VIT- | -100 | mV | ||
| Differential input common mode voltage | Vcom | TBD | V | ||
Back-light Unit Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
| Supply Voltage | Vf | 27 | 30 | 33 | V | If=300 mAX 2 |
| Supply Current | If | - | 600 | - | mA | - |
| Reverse Voltage | Vr | - | - | 5 | V | 10uA |
| Power dissipation | Pd | - | 18 | - | W | - |
| Uniformity for LCM | - | 80 | - | - | % | If=600mA |
| Life Time | - | 40000 | - | - | Hr | If=600 mA |
| Backlight Color | White | |||||
CTP Specification
| Category | Parameter | Specification |
|
General |
Structure | Cover Glass + DITO Glass |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness |
≥6H (Pencil Hardness) |
|
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -20℃ ~ +70℃, ≤85% RH | |
| Storage Temperature | -30℃ ~ +80℃, ≤85% RH | |
|
Electrical |
Interface | IIC / USB / UART |
| Touch IC | IL12511 | |
| Power Supply Voltage (VDD) |
3.3V or 5V (Selectable) |
|
|
Host Resistance (SDA/SCL) |
Configurable on Main-board |
|
| Environmental | Operating Conditions | Functional in fog/surface water |
|
Surface Properties |
Surface Ink | Anti-UV |
| Surface Treatment | Anti-Glare (Haze: 10%) | |
| LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |
