Product Details:
|
Brightness: | 1000 Cd/m² (Sunlight Readable) | Screen Size: | 13.3-inch Diagonal |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Storage Temp.: | -20°C To +70°C |
Operating Temp.: | -30°C To +80°C | Touch Technology: | Capacitive Touch Panel |
Interface: | 2-lane EDP 1.2 (2.7Gbps) | Color Gamut: | 72% NTSC |
Viewing Angles: | 85°/85°/85°/85° | Backlight Lifetime: | 50,000 Hours (LED, @25°C) |
Surface Treatment: | AG/AR/AF Coatings (Selectable) | Contrast Ratio: | 800:1 (Typical) |
Surface Hardness: | ≥6H (Anti-Glare, Haze 10%) | IC Options: | EETI, ILITEK, Cypress, Goodix |
Environmental Resistance: | Operational In Fog/Surface Moisture | Compliance: | RoHS, Halogen-Free, ISO 9001/14001 (EU/US Certified) |
Highlight: | eDP Interface TFT LCD Display Module,Industrial TFT LCD Display Module,Industrial TFT LCD Display Module |
Industry-Leading 1000nits TFT Display for Extreme Visibility
The SFTO1330SM-7208A3CT2 redefines high-brightness performance with an exceptional 1000 cd/m² luminance, engineered for critical applications across North America and Europe. Ideal for outdoor kiosks, industrial HMI, and medical equipment, this 13.3-inch FHD TFT LCD module delivers unmatched clarity in direct sunlight or high-ambient environments. Featuring a rugged capacitive touchscreen (glove-compatible) and ultra-wide operating temperature range (-20°C to +70°C), it meets stringent EU/US industrial standards.
Core Innovations
Sunlight-Readable Clarity: 1000nits brightness + 72% NTSC color gamut for vivid visuals under harsh lighting.
Industrial-Grade Touch: Anti-glare cover glass (6H hardness), supports operation in fog/condensation (IP65-equivalent robustness).
High-Speed Connectivity: 2-lane eDP 1.2 interface (2.7Gbps) ensures zero-lag data transmission for real-time control systems.
50,000-Hour Backlight: Energy-efficient LEDs with PWM dimming (100Hz–1.6KHz) reduce power consumption by 40% vs. CCFL.
Plug & Play Integration: Supports 3.3V logic power + 12V/24V backlight input, compatible with HDMI 2.0 driver boards (included in datasheet).
Technical Superiority for EU/US Markets
Optical Excellence: 85° viewing angles, 800:1 contrast ratio, and <35ms response time for smooth video playback.
Extreme Environment Ready: Operates at -20°C (freezing conditions) to +70°C (factory floors), with 72-hour humidity/thermal shock certification.
Zero-Compliance Risk: RoHS, Halogen-Free, ISO 9001/14001 certified – fully aligned with European EMC and US FCC directives.
Compact & Durable: Slim 5.2mm profile, shock-resistant design, and EMI-shielded I-PEX connectors.
Target Applications
Outdoor Payment Terminals (POS/Kiosks)
Industrial Control Panels (Automation, Robotics)
Medical Imaging Devices
Transportation Infotainment (Buses, Trains)
Smart Factory Equipment
Why Global Customers Trust This Display
Manufactured by Saef Technology (Shenzhen), the SFTO1330SM-7208A3CT2 combines military-grade durability with cutting-edge optics. Its eDP interface simplifies integration with NVIDIA Jetson, Raspberry Pi, and industrial PCs, while the sunlight-readable panel eliminates costly external shielding. Backed by a 2-year warranty, this module is the optimal choice for OEMs targeting reliability-driven markets in the USA, Germany, UK, and Scandinavia.
External Dimensions
Interface Pin Definition
Pin No. | Symbol | I/O | Function |
1 | CABC_ EN / NC | - | Reserved for CD |
2 | H_GND | P | High Speed round |
3 | Lane1_N | I | Complement Signal Link Lane 1 |
4 | Lane1_P | I | True Signal Link Lane 1 |
5 | H_GND | P | High Speed round |
6 | Lane0_N | I | Complement Signal Link Lane 0 |
7 | Lane0_P | I | True Signal Link Lane 0 |
8 | H_GND | P | High Speed round |
9 | AUX_CH_P | I | True Signal Auxiliary Channel |
10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
11 | H_GND | P | High Speed round |
12 | LCD_VDD | P | LCD logic and driver power(3.3V) |
13 | LCD_VDD | P | LCD logic and driver power(3.3V) |
14 | NC | I | Reserved for LCD manufacturer’s use |
15 | LCD_GND | P | LCD logic and driver ground |
16 | LCD_GND | P | LCD logic and driver ground |
17 | HPD | O | HPD signal pin |
18 | LED-1 | P | Backlight ground |
19 | LED-2 | P | Backlight ground |
20 | LED-3 | P | Backlight ground |
21 | LED-4 | P | Backlight ground |
22 | BL_ ENABLE | I | Backlight on/off |
23 | BL_PWM_DIM | I | System PWM |
24 | SCL/NC | - | Reserved for LCD manufacturer’s use |
25 | SDA/NC | - | Reserved for LCD manufacturer’s use |
26 | BL_PWR | P | Backlight power |
27 | BL_PWR | P | Backlight power |
28 | BL_PWR | P | Backlight power |
29 | BL_PWR | P | Backlight power |
30 | NC | - | Reserved for LCD manufacturer’s use |
Optical Characteristics
Para meter | Conditions | Min. | Typ. | Max. | Unit | |
Viewing Angle (CR>10) |
Horizontal | θL | - | 85 | - |
degree |
θ R | - | 85 | - | |||
Vertical | θT | - | 85 | - | ||
θB | - | 85 | - | |||
Contrast Ratio | Center | 600 | 800 | - | - | |
Response Time | Tr+Td | - | 30 | 35 | ms | |
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.05 |
TBD |
Typ. +0.05 |
- | |
Red y | TBD | - | ||||
Green x | TBD | - | ||||
Green y | TBD | - | ||||
Blue x | TBD | - | ||||
Blue y | TBD | - | ||||
White x | (0.323) | - | ||||
White y | (0.379) | - | ||||
NTSC ratio | % | (72) | - | |||
Center Luminance of white |
YLI | 800 | 1000 | cd/m2 |
Backlight Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit |
Supply voltage | VBL | 5 | 12.0 | 37 | V |
Power supply Current for Backlight |
ILED | 6 |
- |
25 | mA |
Power supply for Back light | PLED | 0.18 | - | 5.55 | W |
Modulated light signal voltage | VPWM H | 1.2 | - | 5.0 | V |
VPWM L | 0 | - | 0.6 | V | |
Brightness Control Duty Ratio | Duty | 1 | - | 100 | % |
Brightness Control frequency | fPWM | 100 | - | 1,600 | KHz |
LED-BL ON/OFF High voltage | VCNTH | 1.2 | 5.0 | V | |
LED-BL ON/OFF low voltage | VCNTL | 0 | - | 0.6 | V |
LED lifetime | - | 40,000 | 50,000 | - | h |
CTP Specification
Category | Parameter | Specification |
General | Structure | Cover Glass + DITO Glass |
Cover Lens Strengthening | Chemically Strengthened | |
Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
Light Transmission Rate | ≥85% | |
Operation Temperature | -20℃ ~ +70℃, ≤85% RH | |
Storage Temperature | -30℃ ~ +80℃, ≤85% RH | |
Electrical | Interface | IIC / USB / UART |
Touch IC | IL12511 | |
Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
Host Resistance (SDA/SCL) | Configurable on Main-board | |
Environmental | Operating Conditions | Functional in fog/surface water |
Surface Properties | Surface Ink | Anti-UV |
Surface Treatment | Anti-Glare (Haze: 10%) | |
LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
Compliance | Material Standards | RoHS & Halogen-Free Compliant |

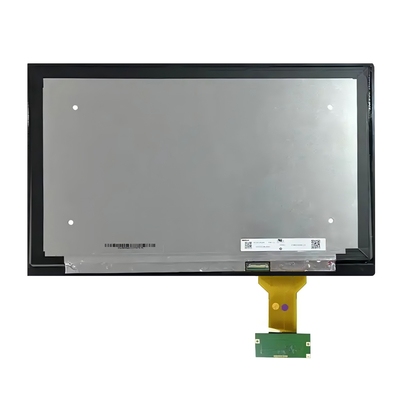

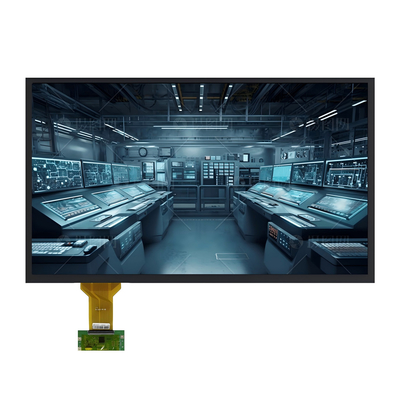

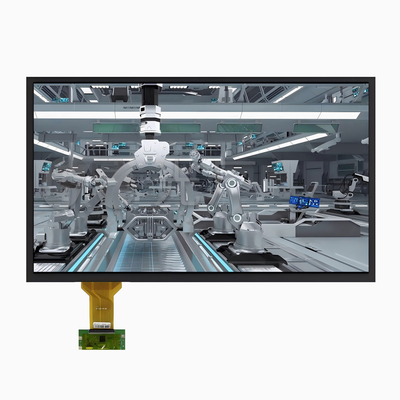

Product Image
