Product Details:
|
Screen Size: | 15.6-inch Diagonal | Brightness: | 1500 Cd/m² (Typ) |
---|---|---|---|
Resolution: | 1920×1080 FHD | Viewing Angle: | 85°/85°/85°/85° (CR≥10) |
Operating Temp.: | -30°C To +85°C | Interface: | 40-pin 2-Channel LVDS |
Power Consumption: | 4W (Typ) @ 3.3V | Contrast Ratio: | 800:1 (Typ) |
Backlight: | External LED Light Bar | LED Lifetime: | 24.35W, 50,000hrs Lifespan |
Surface Treatment: | Anti-Glare, 3H Hard Coating | Color Gamut: | 72% NTSC |
Vibration/ESD Rated: | MIL-STD-202G Compliant | Compliance: | REACH & RoHS Compliant |
Highlight: | FHD TFT LCD Display,Sunlight Readable TFT LCD Display,Industrial Sunlight Readable LCD Display |
Unmatched Visibility in Harsh Environments

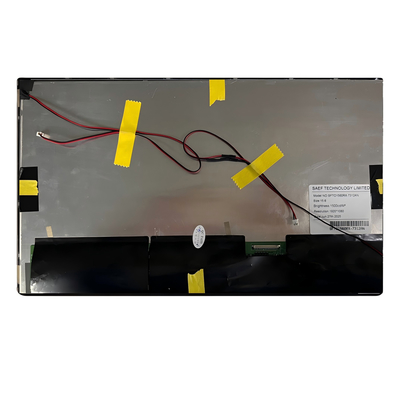

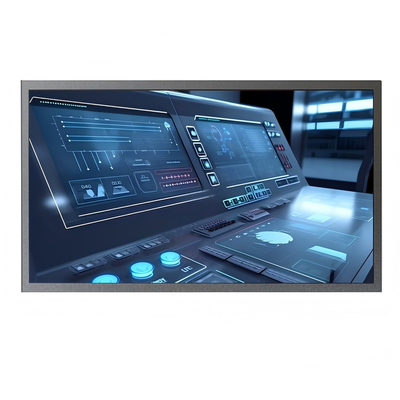

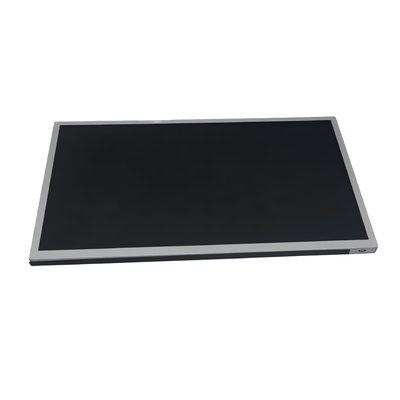

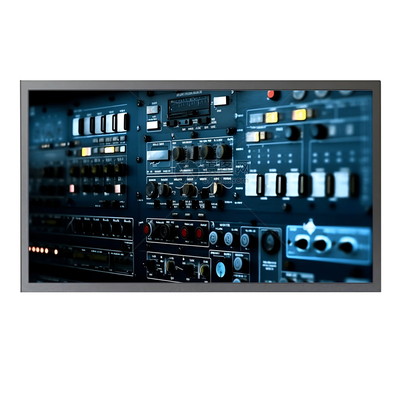

The SFTO1560RX-7312AN 15.6" High-Brightness TFT LCD Display delivers 1500nits luminance for crystal-clear visibility under direct sunlight. Engineered for industrial applications, this FHD (1920×1080) display features an anti-glare 3H hard coating and operates flawlessly from -30°C to 85°C – ideal for outdoor kiosks, transportation systems, and heavy machinery.
Key Technical Advantages
Industrial Durability: Passes thermal shock (-30°C↔85°C), vibration (10-55Hz), and ±12kV ESD tests.
Long-Lifetime Backlight: 50,000-hour LED system with 45.1V input (540mA typ).
Flexible Integration: LVDS interface with reverse scan control (REV_SCAN pin) for versatile mounting.
True Color Performance: 72% NTSC color gamut and 800:1 contrast ratio.
Certified Reliability
ISO 9001/14001 certified and compliant with EU RoHS/REACH standards. Includes 1-year functional warranty.
Ideal For:
Outdoor Digital Signage
Construction & Agricultural Equipment
Aviation Cockpit Displays
Marine Navigation Systems
Medical Devices
Request a Sample: Contact our EU/US support team at sales2@saef.com.cn for industrial pricing and customization options.
Specifications
Item | Specification | Unit |
Screen Size | 15.6” real diagonal | |
Beael Opening | 365.72x220.39x12.5 | mm |
Pixel Number | 1920 x R.G.B. x 1080 | pixel |
Pixel Pitch | 0.17925 (H) x 0.17925 (V) | mm |
Display Area | 344.16x193.59 | mm |
Display Colors | 16.7M | color |
Transmissive Mode | Normally Black | - |
Surface Treatment | AG type, 3H hard coating, | - |
Power Consumption | Total cell | |
TC | 8100 | k |
NTSC | 72 (Typ) | % |
External Dimensions
Interface Pin Definition
Pin | Name | Description |
1 | NC | Not connection, this pin should be open |
2 | NC | Not connection, this pin should be open |
3 | NC | Not connection, this pin should be open |
4 | NC | Not connection, this pin should be open |
5 | NC | Not connection, this pin should be open |
6 | NC | Not connection, this pin should be open |
7 | NC | Not connection, this pin should be open |
8 | NC | Not connection, this pin should be open |
9 | NC | Not connection, this pin should be open |
10 | NC | Not connection, this pin should be open |
11 | LCD_VCC | LCD logic and driver power 3.3V |
12 | LCD_VCC | LCD logic and driver power 3.3V |
13 | LCD_VCC | LCD logic and driver power 3.3V |
14 | NC | Not connection, this pin should be open |
15 | NC | Not connection, this pin should be open |
16 | NC | Not connection, this pin should be open |
17 | REV_SCAN |
Low → Normal Mode. High → Horizontal & Vertical Reverse Scan |
18 | RXO0- | Negative LVDS differential data input. Channel O0 (odd) |
19 | RXO0+ | Positive LVDS differential data input. Channel O0 (odd) |
20 | RXO1- | Negative LVDS differential data input. Channel O1 (odd) |
21 | RXO1+ | Positive LVDS differential data input. Channel O1 (odd) |
22 | RXO2- | Negative LVDS differential data input. Channel O2 (odd) |
23 | RXO2+ | Positive LVDS differential data input. Channel O2 (odd) |
24 | LCD GND | LCD logic and driver ground |
25 | RXOC- | Negative LVDS differential clock input. (odd) |
26 | RXOC+ | Positive LVDS differential clock input. (odd) |
27 | LCD GND | LCD logic and driver ground |
28 | RXO3- | Negative LVDS differential data input. Channel O3(odd) |
29 | RXO3+ | Positive LVDS differential data input. Channel O3 (odd) |
30 | RXE0- | Negative LVDS differential data input. Channel E0 (even) |
31 | RXE0+ | Positive LVDS differential data input. Channel E0 (even) |
32 | RXE1- | Negative LVDS differential data input. Channel E1 (even) |
33 | RXE1+ | Positive LVDS differential data input. Channel E1 (even) |
34 | LCD GND | LCD logic and driver ground |
35 | RXE2- | Negative LVDS differential data input. Channel E2 (even) |
36 | RXE2+ | Positive LVDS differential data input. Channel E2 (even) |
37 | RXEC- | Negative LVDS differential clock input. (even) |
38 | RXEC+ | Positive LVDS differential clock input. (even) |
39 | RXE3- | Negative LVDS differential data input. Channel E3 (even) |
40 | RXE3+ | Positive LVDS differential data input. Channel E3 (even) |
