Product Details:
|
| Product: | TFT LCD Display | Screen Size: | 13.3 Inch (Diagonal) |
|---|---|---|---|
| Resolution: | 1920 (H) X 1080 (V) Full HD | Brightness: | 2000 Cd/m² (nits), High Brightness |
| Interface: | EDP (Embedded DisplayPort) – 2 Lanes | Touchscreen (CTP): | Projected Capacitive (PCAP), Glass-Glass |
| Operating Temperature: | -20°C To +70°C (Wide Temp) | Viewing Angle: | 85°/85°/85°/85° (All Directions) |
| Color Gamut: | 72% NTSC (Typical) | Panel Type: | TFT LCD, Normally Black, IPS |
| Key Application: | Industrial HMI, Medical Devices, POS | Compliance: | REACH, RoHS, Halogen-Free |
| Highlight: | 13.3-inch TFT LCD display module,FHD eDP interface LCD,2000 nits sunlight-readable display |
||
Sunlight-Readable 13.3-inch FHD Display Engineered for Outdoor & High-Ambient-Light Applications

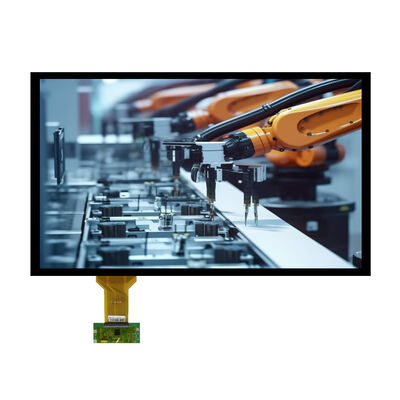

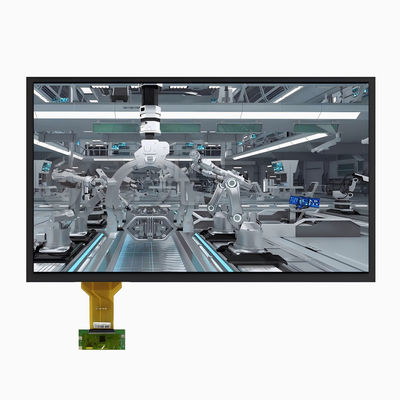

Saef Technology Limited presents the SFTO1330WN-7432A-CT2, a premium 13.3-inch TFT LCD module purpose-built for applications where visibility under direct sunlight and environmental robustness are non-negotiable. Delivering 2000 cd/m² typical brightness, Full HD 1920×1080 resolution, and an integrated projected capacitive touch panel with anti-glare and anti-UV surface treatment, this module is the ideal display solution for outdoor kiosks, digital signage, industrial HMIs, marine navigation, and transportation infrastructure.
Engineered to Solve Critical Design Challenges:
Sunlight Readability Without Compromise: At 2000 nits, this display maintains exceptional clarity even in direct sunlight. The 1000:1 contrast ratio and 89° wide viewing angles ensure content remains legible from any perspective.
Rugged Touch Interface: The PCAP touch panel features chemically strengthened cover glass with ≥6H pencil hardness, anti-glare (10% haze) and anti-UV surface treatment, and remains functional even in fog or with surface water droplets. The ILI12511 touch controller supports 3.3V or 5V operation and I²C/USB/UART interfaces for flexible system integration.
High-Speed eDP Interface: The embedded DisplayPort interface delivers Full HD video at 60Hz with minimal signal degradation, supporting modern processor and FPGA platforms. The interface is designed for DE-only mode operation with clock frequencies up to 147.8MHz.
Industrial-Grade Reliability: Certified for operation from -20°C to +70°C and storage from -30°C to +80°C, with comprehensive reliability testing including thermal shock, humidity, vibration, and ESD (±8kV air, ±4kV contact).
Technical Specifications for System Design:
| Parameter | Value |
|---|---|
| Active Area | 293.76mm × 165.24mm |
| Pixel Pitch | 0.153mm × 0.153mm |
| Display Colors | 16.7M |
| Backlight Type | Edge-lit LED, 2 strings × 5 LEDs |
| Backlight Voltage | 27V–33V (typ. 30V) |
| Backlight Current | 600mA total (300mA per string) |
| Power Supply | VCC = 3.3V, BLU = 12V |
| Touch Interface | I²C / USB / UART (selectable) |
| Touch Voltage | 3.3V or 5V (selectable) |
| MTBF | 40,000 hours (backlight) |
Customization & Engineering Support
While this module comes as a complete display-touch-driver solution, Saef offers semi-custom and full-custom options to match your exact requirements:
Optical Customization: Adjust brightness, anti-glare level, or add anti-fingerprint (AF) coating
Mechanical Modifications: Tailor outline dimensions, FPC length, or mounting hole positions
Touch Upgrades: Integrate different touch controllers or support glove-touch functionality
Interface Adaptation: Modify eDP lane count or add LVDS output options
Firmware Tuning: Customize OSD language, color engine, or DCR settings
Ideal For:
Outdoor digital signage and kiosks
Marine and navigation displays
Transportation and wayfinding systems
Industrial control panels in bright environments
Medical diagnostic equipment (operating room displays)
Aerospace applications
High-end consumer electronics (gaming, creative workstations)
Built for the Harshest Environments, Designed for Seamless Integration.
At Saef, we partner with engineering teams from concept to production—providing detailed technical documentation, evaluation samples, and responsive design support to ensure your display solution performs flawlessly in the field.
Mechanical Dimensions
![]()
Touchscreen Mechanical Dimensions
![]()
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
| Operating Temperature | TOP | +20 | +70 | ℃ |
| Storage Temperature | TST | -30 | +80 | ℃ |
| Operating Ambient Humidity | Hop | - | 90 | %RH |
| Storage Humidity | Hst | - | 90 | %RH |
| Heat Release Requirement | Trls | 15 | ℃ | |
TFT LCD Module Electrical Characteristics
|
Parameter |
Symbol | Ratings |
Unit |
||
| MIN | TYP | MAX | |||
| Power Supply Input Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Power Supply Current | IDD | - | - | - | mA |
|
LED Driver Power Supply Voltage |
HVDD | 2.7 | 24 | V | |
|
LED Driver Power Supply Current |
IHVDD | 20 |
- |
mA | |
| LED Power Consumption | PLED | 2.7 | W | ||
| Positive-going Input Threshold Voltage | VIT+ | +100 | mV | ||
| Negative-going Input Threshold Voltage | VIT- | -100 | mV | ||
| Differential input common mode voltage | Vcom | TBD | V | ||
Back-light Unit Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
| Supply Voltage | Vf | 27 | 30 | 33 | V | If=300 mAX 2 |
| Supply Current | If | - | 600 | - | mA | - |
| Reverse Voltage | Vr | - | - | 5 | V | 10uA |
| Power dissipation | Pd | - | 18 | - | W | - |
| Uniformity for LCM | - | 80 | - | - | % | If=600mA |
| Life Time | - | 40000 | - | - | Hr | If=600 mA |
| Backlight Color | White | |||||
CTP Specification
| Category | Parameter | Specification |
|
General |
Structure | Cover Glass + DITO Glass |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness |
≥6H (Pencil Hardness) |
|
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -20℃ ~ +70℃, ≤85% RH | |
| Storage Temperature | -30℃ ~ +80℃, ≤85% RH | |
|
Electrical |
Interface | IIC / USB / UART |
| Touch IC | IL12511 | |
| Power Supply Voltage (VDD) |
3.3V or 5V (Selectable) |
|
|
Host Resistance (SDA/SCL) |
Configurable on Main-board |
|
| Environmental | Operating Conditions | Functional in fog/surface water |
|
Surface Properties |
Surface Ink | Anti-UV |
| Surface Treatment | Anti-Glare (Haze: 10%) | |
| LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |
