8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN

8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN
8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN 8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN 8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN 8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN

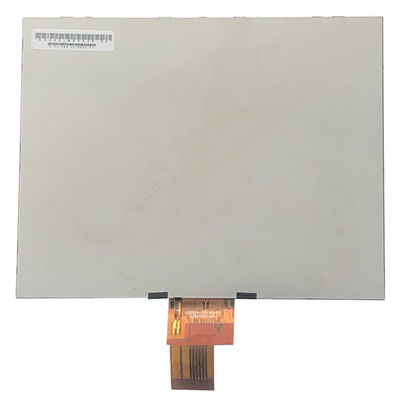

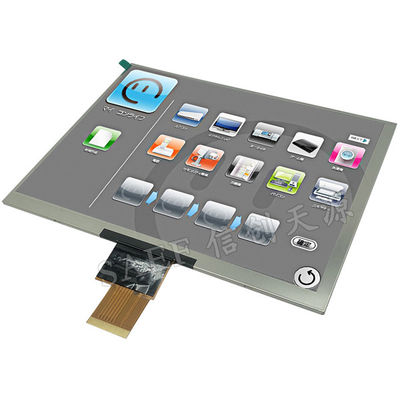

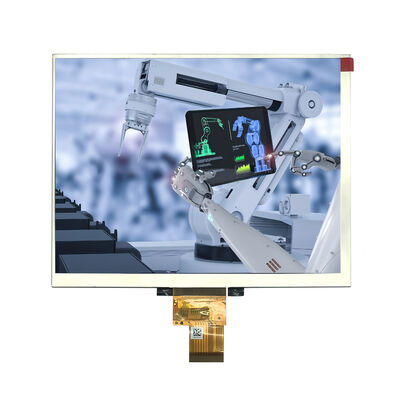

Large Image :  8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO800SH-8833AN
Document: SFTO800SH-8833AN Datasheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD20- 25 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN

Description

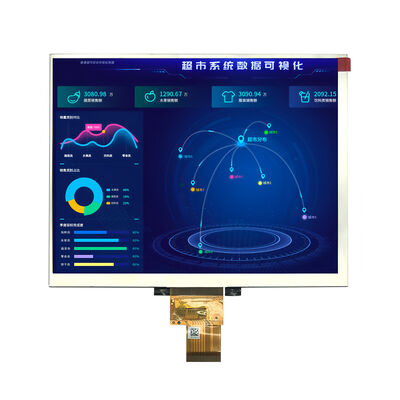

Screen Size: 8.0-inch Diagonal Resolution: 1024 × 768 (XGA)
Technology: IPS TFT, A-Si Active Matrix Color Depth: 16.7 Million Colors
Viewing Angle: 170° (CR≥10) Interface: LVDS Digital Input
Surface Luminance: 300 Cd/m² (typical) Contrast Ratio: 800:1 (typical)
Backlight: LED, 12V, 300mA Touch Screen: Available (RTP/CTP Optional)
Power Consumption: 0.383W (panel Only, Typical) Mechanical Compatibility: Drop-in Replacement For Innolux HJ080IA-01E
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant
Highlight:

8-inch TFT LCD display module

,

1024x768 XGA IPS panel

,

Saef Technology LCD display



Engineer-Ready 8-Inch TFT LCD Module for Demanding Industrial & Medical Applications



Saef Technology’s SFTO800SH-8833AN is a high-performance 8-inch TFT LCD display module designed for engineers and system integrators who require reliability, optical clarity, and seamless integration in critical environments. Featuring an IPS panel with XGA resolution (1024×768), this module delivers consistent color reproduction and wide viewing angles up to 170°, making it ideal for human-machine interfaces (HMIs), medical monitors, test equipment, and industrial control systems.



Why Choose This 8-Inch TFT LCD Module?

  1. Plug-and-Play Compatibility

    • Fully compatible with Innolux HJ080IA-01E displays, enabling easy upgrades without mechanical redesign.

    • LVDS interface supports 6-bit/8-bit data input with flexible scan direction control (L/R, U/D pins).

  2. Engineered for Reliability

    • Operates in extended temperature ranges (-20°C to +60°C) with high humidity resistance.

    • Robust construction meets ISO9001 and ISO14001 standards, backed by a one-year functional warranty.

  3. Optimized Optical Performance

    • 300 cd/m² brightness and 800:1 contrast ratio ensure readability in high-ambient light conditions.

    • 70% NTSC color gamut and hard-coating surface reduce glare and enhance durability.

  4. Power & Backlight Efficiency

    • Low power consumption (0.383W typical) with CABC (Content Adaptive Brightness Control) support for dynamic backlight management.

    • LED backlight rated for 40,000 hours (50% brightness lifetime), reducing maintenance cycles.

  5. Design Flexibility & Customization

    • We offer free or semi-custom solutions including touch integration (RTP/CTP), tailored connectors, bezel modifications, and firmware adjustments.

    • Pin-to-pin compatibility and detailed mechanical drawings (provided) simplify PCB layout and enclosure design.



Technical Highlights for System Designers:

  • Timing Controller: Supports DE-only mode; SYNC mode not required.

  • Power Sequencing: Strictly defined rise/fall times to prevent latch-up and ensure long-term stability.

  • ESD & Handling: Full static protection guidelines included for assembly and integration.



Target Applications:

  • Industrial HMIs & PLC panels

  • Medical diagnostic devices & patient monitors

  • Automotive dashboards & instrumentation

  • Test & measurement equipment

  • Kiosks & POS systems



Certified & Safe:
Compliant with RoHS (2011/65/EU, 2015/863/EU), REACH, and packaged under 94-62/EC guidelines.



Get Your Display Solution Ready:
Whether you need a drop-in replacement or a fully customized 8-inch TFT LCD with touch, Saef Technology provides expert support from prototype to production. Contact us today for datasheets, CAD files, and a complimentary design review.





Mechanical Outline Dimensions



8-Inch TFT LCD Display Module – 1024×768 XGA IPS Panel | Saef Technology SFTO800SH-8833AN 0



Interface Pin Definition



Pin No. Symbol I/O Function
1 VCOM P Common Voltage
2 VDD P Power Voltage for digital circuit
3 VDD P Power Voltage for digital circuit
4 NC --- No connection
5 Reset I Global reset pin

6

STBYB

I

Standby mode, Normally pulled high STBYB = “1”, normal operation

STBYB = “0”, timing controller, source driver will turn off, all output are High-Z

7 GND P Ground
8 RXIN0- I - LVDS differential data input
9 RXIN0+ I + LVDS differential data input
10 GND P Ground
11 RXIN1- I - LVDS differential data input
12 RXIN1+ I + LVDS differential data input
13 GND P Ground
14 RXIN2- I - LVDS differential data input
15 RXIN2+ I + LVDS differential data input
16 GND P Ground
17 RXCLKIN- I - LVDS differential clock input
18 RXCLKIN+ I + LVDS differential clock input
19 GND P Ground
20 RXIN3- I - LVDS differential data input
21 RXIN3+ I + LVDS differential data input
22 GND P Ground
23 NC --- No connection
24 NC --- No connection
25 GND P Ground
26 NC --- No connection
27 DIMO O Backlight CABC controller signal output
28 SELB I 6bit/8bit mode select
29 AVDD P Power for Analog Circuit
30 GND P Ground
31 LED- P LED Cathode
32 LED- P LED Cathode
33 L/R I Horizontal inversion
34 U/D I Vertical inversion
35 VGL P Gate OFF Voltage
36 CABCEN1 I CABC H/W enable
37 CABCEN0 I CABC H/W enable
38 VGH P Gate ON Voltage
39 LED+ P LED Anode
40 LED+ P LED Anode



Absolute Maximum Rating



Item

Symbol

Values



Unit

Min. Max.

Power voltage

VCC -0.3 5.0 V
AVDD 6.5 13.5 V
VGH -0.3 40 V
VGL -20 0.3 V
VGH-VGL - 40 V
Operation Temperature Storage Temperature TOP -20 60
TST -30 7 0



Typical Operation Conditions



Item

Symbol

Values



Unit

Min. Typ. Max.

Power voltage

VCC 3.0 3.3 3.6 V
AVDD 9.8 10 10.2 V
VGH 18.6 18.9 19.2 V
VGL -8.1 -7.8 -7.5 V
Input signal voltage VCOM 3.0 3.6 3.9 V
Input logic high voltage VIH 0.7Vcc - Vcc V
Input logic low voltage VIL 0 - 0.3Vcc V



Current Consumption



Item

Symbol

Values

Unit

Remark

Min. Typ. Max.

Current for Driver

IGH - 0.65 1.0 mA VGH=18.9V
IGL - 0.65 1.0 mA VGL=-7.8V
ICC - 35 60 mA Vcc=3.3V
IAVDD - 25 40 mA AVDD=10.0V



Backlight Driving Conditions



Item

Symbol

Values

Unit

Min. Typ. Max.
Voltage for LED backlight VL 11. 12 13.2 V
Current for LED backlight IL - 300 - mA
LED life time - 30,000 40,000 - Hr



AC Electrical Characteristics



Parameter Symbol Values Unit
Min. Typ. Max.
Clock frequency RxFCLK 20 - 71 MHz
Input data skew margin TRSKM 500 - - ps
Clock high time TLVCH - 4/(7* RxFCLK) - ns
Clock low time TLVCL - 3/(7* RxFCLK) - ns



DC Electrical Characteristics



Parameter Symbol Values Unit
Min. Typ. Max.
Differential input high Threshold voltage RxVTH

-

-

+0.1 V
Differential input low Threshold voltage RxVTL -0.1

-

-

V
Input voltage range (singled-end) RxVIN 0

-

2.4 V
Differential input common mode voltage RxVCM |VID |/2

-

2.4-|VID |/2 V
Differential voltage |VID | 0.2 - 0.6 V
Differential input leakage current RVxliz -10 - +10 uA



Optical Specifications



Item

Symbol

Condition

Values

Unit

Min. Typ. Max.

Viewing angle (CR≥ 10)

θL Φ=180°(9 o’clock) 75 85 -

degree

θR Φ=0°(3 o’clock) 75 85 -
θT Φ=90°(12 o’clock) 75 85 -
θB Φ=270°(6 o’clock) 75 85 -
Response time TON+ TOFF     25 50

msec

Contrast ratio CR Normal θ=Φ=0° 600 800 - -



Color chromaticity

WX 0.238 0.288 0.338 -
WY 0.276 0.326 0.376

-

Transmittance Tr

-

3.8 4.3

-

%
Uniformity

-

-

75

-

-

%
Luminance

L

-

-

300

-

cd/m2
