Product Details:
|
| Product: | 2.4 Inch TFT LCD Display | Resolution: | 240 × 320 Pixels (RGB) |
|---|---|---|---|
| Cover Glass Dimension: | Customizable | Viewing Direction: | 12 O’clock Viewing Direction |
| Interface: | MPU 8/9/16/18-bit Parallel, SPI, RGB | Backlight: | White LED, 4-channel, 80mA Drive |
| Driver IC: | ILI9341 | Contrast Ratio: | 250:1 (typical) |
| Surface Luminance: | 350 Cd/m2 | Operating Temp: | -20°C To +70°C |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Touch Ready: | 4-wire Resistive Touch Panel | Customization: | Available For CTP/RTP Integration |
| Highlight: | 2.4-inch TFT LCD module with ILI9341 driver,240x320 IPS industrial display,flexible interface TFT LCD module |
||

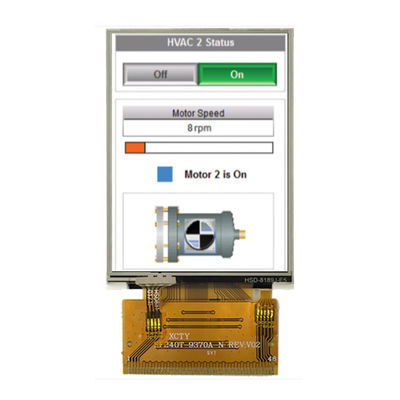

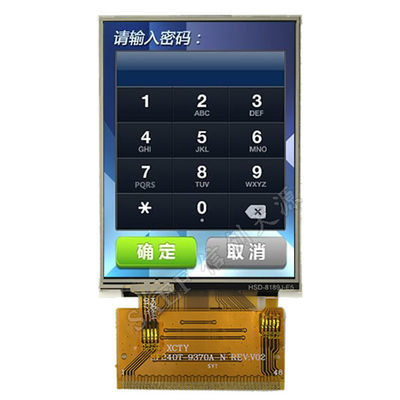

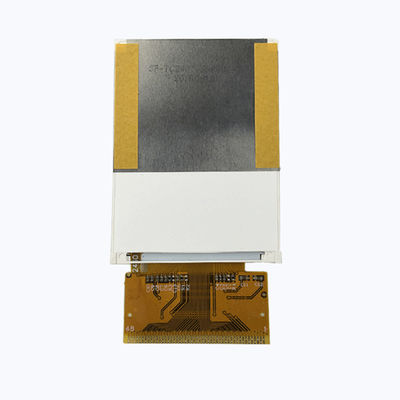

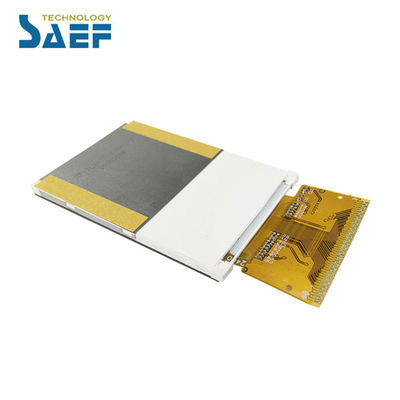

Highly Configurable 2.4-inch TFT LCD for Versatile Embedded & Industrial Applications
Saef Technology Limited introduces the SF-TC240H-8944A-N, a versatile 2.4-inch TFT LCD module designed for engineers who require interface flexibility without compromising display performance. With a 240x320 resolution, the ILI9341 driver, and support for multiple interface modes—including parallel MPU, SPI, and RGB—this module is ideal for industrial HMIs, medical devices, test equipment, consumer electronics, and IoT dashboards.
Engineered for Design Flexibility & Ease of Integration:
Multi-Interface Support: Configure as MPU 8/9/16/18-bit parallel, SPI, or RGB interface via IM[3:0] pins, allowing seamless compatibility with a wide range of MCUs and processors.
Bright & Readable Display: 250 cd/m² brightness and 250:1 contrast ratio ensure clear visibility in various lighting conditions. The 12 o’clock viewing direction is optimized for portrait-mode applications.
Touch Panel Ready: Includes dedicated pins (YU, XL, YD, XR) for easy integration of a 4-wire resistive touch panel, simplifying touch-enabled designs.
Robust & Reliable: Operating temperature range of -20°C to +70°C and comprehensive reliability testing ensure stable performance in demanding environments.
Technical Specifications for System Integration:
Active Area: ~36.72mm × 48.96mm
Module Dimensions: 42.72mm × 60.26mm × 2.3mm
Supply Voltage: VCI = 2.6V–3.3V, VDD3 = 1.8V–3.3V
Backlight: 4 white LEDs, Vf = 3.0V–3.4V, If = 80mA total
Interface Signals: Includes TE (tearing effect), DOTCLK, HSYNC/VSYNC for RGB mode
Compliance: Designed to meet industrial standards with environmental and reliability testing
Why Partner with Saef for Your Display Solution?
While this module is designed for resistive touch integration, Saef specializes in custom and semi-custom display solutions. We can:
Upgrade to Capacitive Touch: Integrate projected capacitive touch (PCT) with I²C/SPI interface.
Modify Interface & Pinout: Tailor the FPC layout, signal mapping, or connector type to match your PCB design.
Adjust Optical Performance: Customize brightness, contrast, color gamut, or viewing angle characteristics.
Mechanical Customization: Modify outline dimensions, bezel width, or mounting features.
Ideal For:
Industrial human-machine interfaces (HMIs)
Portable medical monitoring devices
Handheld test and measurement instruments
Smart home control panels
Automotive dashboard displays
Consumer electronics and gaming devices
Designed to Adapt, Built to Last.
At Saef, we work closely with engineering teams to ensure displays integrate smoothly and perform reliably. From prototype to production, we provide the technical support and customization needed to bring your product to market faster.
Call to Action for High-Value Inquiries:
Need a versatile display that fits your interface requirements? Request a datasheet, evaluation sample, or a custom design consultation with our engineering team today.
Mechanical Outline Dimensions
![]()
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | YU | I | Touch Panel Pin |
| 2 | XL | I | Touch Panel Pin |
| 3 | YD | I | Touch Panel Pin |
| 4 | XR | I | Touch Panel Pin |
| 5 | GND | I | Ground |
| 6 | VCI | I | Power Supply 2.8V Voltage |
| 7 | VDD3 | I | Power Supply 2.8V/1.8V Voltage |
| 8 | VDD3_P(NC) | - | Set Open |
| 9 | BC_CTRL(NC) | - | Set Open |
| 10 | BC(NC) | - | Set Open |
|
11 |
TE |
O |
Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. |
| 12-29 | DB17-DB0 | I/O | Display Data I/O |
| 30 | SDA | I/O | Serial input signal |
| 31 | DOTLCK | I | Dot Clock Signal for RGB Interface Operation |
| 32 | ENABLE | I | Data Enable Signal for RGB Interface Operation |
| 33 | HSYNC | I | Line Horizontal Synchronizing Signal |
| 34 | VSYNC | I | Frame Vertical Synchronizing Signal |
| 35 | RDX | I | Read strobe signal input pin |
| 36 | WRX | I | Write strobe signal input pin |
| 37 | DCX | I | Register select signal |
| 38 | CSX | I | Input pin for chip selection signal |
| 39 | RESET | I | LCM Reset input signal |
| 40 | IM0 |
I |
Please refer to the fourth page, Select the MCU interface mode |
| 41 | IM1 | ||
| 42 | IM2 | ||
| 43 | IM3 | ||
| 44 | LED_A | I | LED Anode |
| 45 | LED_K1 | I | LED Cathode |
| 46 | LED_K2 | I | LED Cathode |
| 47 | LED_K3 | I | LED Cathode |
| 48 | LED_K4 | I | LED Cathode |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics
| Item | Symbol | Min | Type | Max | Unit | Test condition |
|
Operating voltage |
VDD | 2.6 | 2.8 | 3.3 | V | - |
| Supply current | IDD | - | - | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | - | VDD | V |
- |
| VIL | 0 | - | 0.2VDD | V | ||
|
Input leakage current |
IIL | -1.0 | - | 1.0 | μA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
| Supply Voltage | Vf | 3.0 | 3.2 | 3.4 | V | If=80mA |
| Supply Current | If | - | 80 | - | mA | - |
| Reverse Voltage | Vr | - | - | 5 | V | - |
| Power dissipation | Pd | - | 288 | - | mW | - |
| Luminous Intensity for LCM |
- |
- | 250 | - | Cd/m2 | If=80mA |
| Uniformity for LCM | - | 80 | - | - | % | If=80 mA |
| Backlight Color | White | |||||
Optical Characteristics
| No. | Item | Symbol | Conditions | Specification | Unit | |||
| Min | Typ | Max | ||||||
| 1 | Response Time | Tr+Tf | 25℃ |
- |
15 |
- |
Ms | |
| 2 | Transmittance (With PL) | T(%) | - | - | 7.1 | - | - | |
|
3 |
Contrast Rate |
Cr |
θ=0, Normal viewing angle |
- |
250 |
- |
- |
|
|
4 |
Viewing Angle |
Hor. | θR |
CR>10 |
- | 45 | - |
Deg |
| θL | - | 45 | - | |||||
| Ver. | Θ+ | - | 35 | - | ||||
| Θ- | - | 15 | - | |||||
