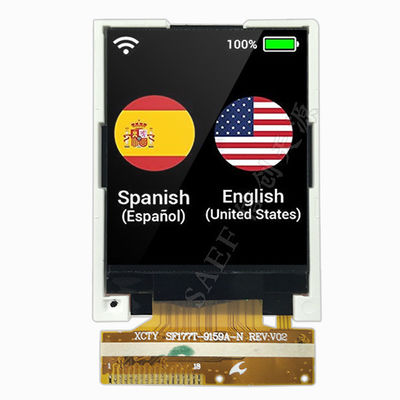

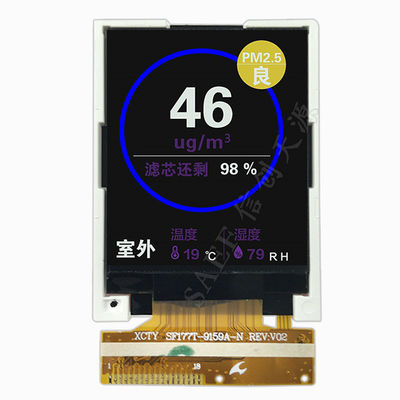

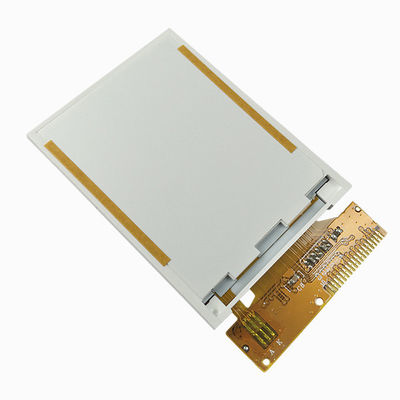

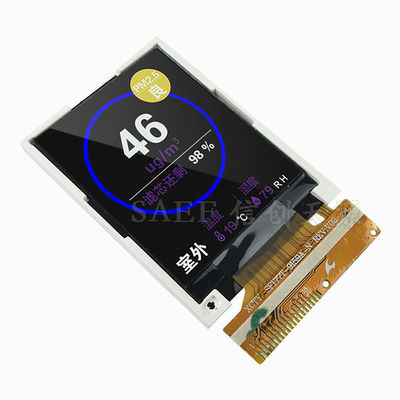

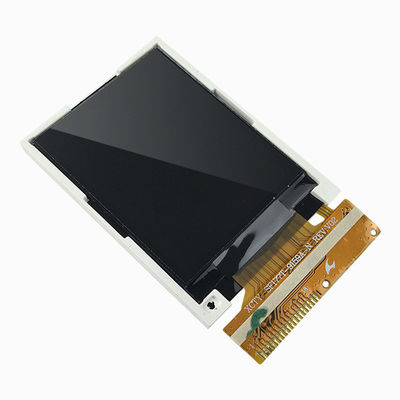

1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display

1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display
1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display 1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display 1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display 1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display 1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display

Large Image :  1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC177T-9159B-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD1.3 - 1.8 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3000K pcs per month

1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display

Description
Product: 1.8 Inch TFT Screen Resolution: 128x160 Pixels
Driver IC: ILI9163C Outline Dim.: 34.0 X 43.70 X 2.4 Mm
Touch Screen: Without Touch Screen Viewing Direction: 6:00
Interface: SPI Interface Connection: Soldering
Pin Number: 18 Pins Surface Luminance: 250 Cd/m2(nits)
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

1.77-inch TFT LCD touch screen

,

128x160 SPI TFT display

,

compact embedded LCD with resistive touch



Compact, Cost-Effective Touch Display Solution for Embedded & Industrial Applications



Saef Technology Limited presents the SF-TC177T-9159B-N, a reliable 1.77-inch TFT LCD module designed for applications where space, cost, and touch functionality are key. Featuring a 128x160 resolution, integrated 4-wire resistive touch panel, and an SPI interface driven by the ILI9163C IC, this module is ideal for handheld devices, industrial controls, portable instruments, and consumer electronics interfaces.



Engineered for Simplicity & Durability:

  • Integrated Resistive Touch: With 1,000,000+ touch cycles and linearity within ±1.5%, this RTP offers reliable input in environments where capacitive touch may not be suitable, such as gloved operation or dusty conditions.

  • SPI Interface for Easy Integration: Minimizes pin count and simplifies PCB layout, making it compatible with a wide range of microcontrollers and reducing system complexity.

  • Compact Footprint: Measuring only 34.0mm × 43.70mm × 2.4mm, this display is ideal for space-constrained designs without sacrificing functionality.

  • Wide Operating Temperature Range: Certified for -20°C to +70°C operation, ensuring stable performance in varying environmental conditions.



Technical Specifications for Design Validation:

  • Active Area: Approx. 28.03mm × 35.04mm (calculated based on typical pixel pitch)

  • Power Supply: VDD = 2.6V–3.3V, VDDIO = 2.8V/1.8V

  • Backlight: White LED, 3.0V–3.4V forward voltage (30mA drive)

  • Touch Panel Ratings: X-axis resistance 150–500Ω, Y-axis 200–800Ω; operating voltage ≤7V DC

  • Compliance: Designed to meet industrial reliability standards with testing for high/low temperature, humidity, thermal shock, and vibration resistance



Why Choose Saef for Your Display Solution?

While this module comes standard with a resistive touch panel, Saef offers free semi-customization to adapt the display to your exact needs:

  • Touch Panel Upgrades: Switch to capacitive touch (PCT) with I²C/SPI interface.

  • Interface Flexibility: Modify to RGB or parallel interfaces based on your MCU selection.

  • Optical Customization: Adjust brightness, contrast, or viewing angle characteristics.

  • Mechanical Tailoring: Customize outline dimensions, FPC length, or mounting options.



Ideal For:

  • Handheld industrial terminals

  • Portable medical monitoring devices

  • Smart home control panels

  • Automotive aftermarket displays

  • Consumer electronics interfaces

  • IoT device dashboards



Built to Integrate, Designed to Perform.
At Saef, we partner with engineers through the design cycle—offering samples, technical support, and customization to ensure your display integrates seamlessly and performs reliably in your application.





Mechanical Outline Dimensions



1.77-inch TFT LCD with 4-Wire Resistive Touch Screen | 128x160 SPI Interface | ILI9163C Driver | Compact Embedded Display 0





Interface Pin Definition



NO. PIN NAME I/O Description
1 VSS I Ground
2 LED- O LED Cathode
3 LED+ O LED Anode
4 VSS I Ground
5 RESET I LCM Reset input signal
6 A0 I Register select signal
7 SDA I Display Data input signal
8 SCK I Display Clock input signal
9 VDD I Power Supply 2.8V Voltage
10 VDDIO I Power Supply 2.8V/ 1.8V Voltage
11 CS I Input pin for chip selection signal
12 VSS I Ground
13 YD I Touch Panel input signal
14 XL I Touch Panel input signal
15 YU I Touch Panel input signal
16 XR I Touch Panel input signal
17 VSS I Ground
18 VSS I Ground





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C





DC Characteristics



Item Symbol Min Type Max Unit Test condition

Operating

voltage

VDD 2.6 2.8 3.3 V -
Supply current IDD - - 5 mA VDD=2.8V,Ta=25.C
Input voltage VIH 0.8VDD - VDD V



-

VIL 0 - 0.2VDD V

Input leakage

current

IIL -1.0 - 1.0 μA VIN=VDD or VSS





Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf 3.0 3.2 3.4 V If=30 mA
Supply Current If - 30 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 288 - mW -
Luminous Intensity for LCM

-

- 250 - Cd/m2 If=30mA
Uniformity for LCM - 80 - - % If=30 mA
Backlight Color White





Optical Characteristics



No. ITEM Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃

-

15

-

Ms
2 Transmittance (With PL) T(%) - - 7. 1 - -



3

Contrast Rate

Cr

θ=0, Normal

viewing angle

-

250

-

-





4

Viewing

Angle

Hor. θR

CR>10

- 45 -

Deg

θL - 45 -
Ver. Θ+ - 35 -
Θ- - 15 -
