1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display

1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display
1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display 1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display 1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display 1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display

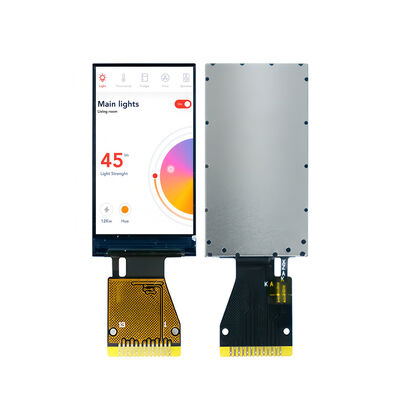

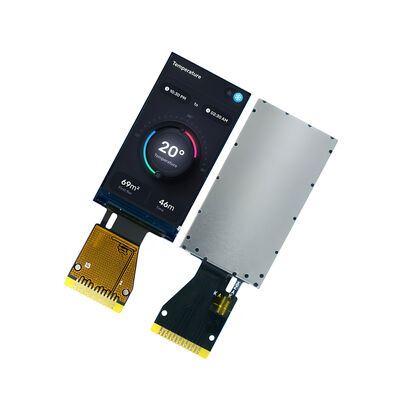

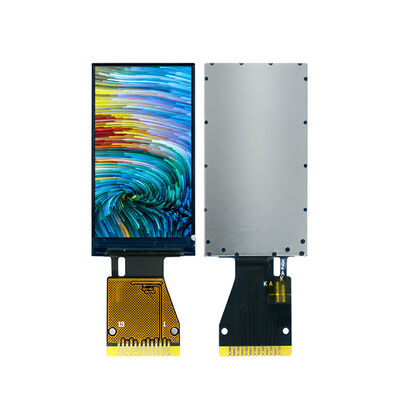

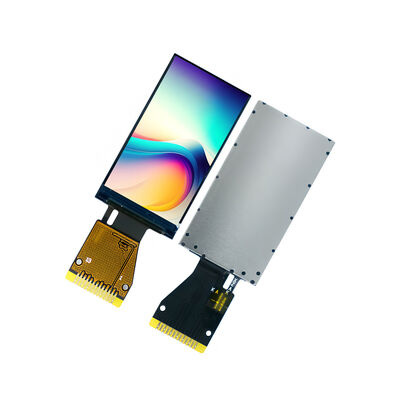

Large Image :  1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO114JY-7422AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD1.2 - 1.7 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3000K pcs per month

1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display

Description
Product: 1.14-inch TFT LCD Resolution: 135 X 240 Pixels (RGB)
Display Type: IPS TFT, Normally Black Interface: 4-wire SPI
Operating Temp: -20°C To +70°C Driver IC: ST7789V
Surface Luminance: 400 Cd/m² (typical) Viewing Direction: 80° All Directions
Supply Voltage: 2.5V – 3.3V Backlight: White LED, 20mA Drive Current
Touch Panel: Not Included (Customizable Upon Request) Compliance: REACH & RoHS Compliant
Highlight:

1.14-inch TFT LCD module

,

SPI interface TFT display

,

low-power ST7789V LCD module



Ultra-Compact, High-Performance TFT LCD for Space-Constrained Embedded Designs



Saef Technology Limited introduces the SFTO114JY-7422AN, a 1.14-inch TFT LCD module engineered for applications where size, power efficiency, and visual clarity are critical. With a 135×240 resolution, 400 cd/m² brightness, and an ultra-compact footprint of 17.6mm × 31.0mm, this display is ideal for wearable devices, portable medical monitors, IoT dashboards, handheld instruments, and smart home interfaces.



Optimized for Low-Power & High-Integration Designs:

  • Efficient SPI Interface: The 4-line SPI interface minimizes pin count and simplifies PCB layout, making it ideal for microcontroller-based systems with limited I/O.

  • High Brightness & Contrast: At 400 cd/m² and 800:1 contrast ratio, this display ensures excellent readability in both indoor and outdoor-adjacent environments.

  • Wide Temperature Operation: Certified for -20°C to +70°C operation, suitable for devices exposed to varying environmental conditions.

  • Low Power Profile: Consumes only 8mA typical during operation and as low as 15µA in sleep mode, extending battery life in portable applications.



Technical Specifications for Engineering Evaluation:

  • Active Area: 14.864mm × 24.912mm

  • Pixel Pitch: 0.1101mm (H) × 0.1038mm (V)

  • Supply Voltage: VDD = 2.4V–3.3V, VDDIO = 1.65V–3.3V

  • Backlight Voltage: 2.9V–3.1V (typical 3.0V)

  • Operating Life: 30,000 hours typical

  • Compliance: RoHS, REACH, ISO9001:2015, ISO14001:2015



Why Partner with Saef for Your Display Solution?

While this module is offered as a standard non-touch display, Saef specializes in semi-custom and fully custom display solutions. We can integrate resistive or capacitive touch panels, modify interfaces, adjust brightness levels, or tailor mechanical outlines to fit your exact design requirements—all with engineering support throughout the process.



Ideal For:

  • Wearable health and fitness devices

  • Portable medical diagnostic equipment

  • Smart home control panels

  • IoT sensor displays

  • Handheld test and measurement tools

  • Industrial status indicators

  • Consumer electronics auxiliary displays



Designed to Fit, Built to Perform.
At Saef, we understand that every pixel and pin counts. Our engineering team is ready to help you integrate this display seamlessly into your product—or customize it to better meet your needs.





Call to Action for High-Value Inquiries:
Need a compact display solution that doesn’t compromise on performance? Request a sample, datasheet, or a custom design consultation with our engineering team today.





Mechanical Dimensions



1.14-inch High-Brightness TFT LCD Module | 135×240 SPI Interface | ST7789V Driver | Low-Power Embedded Display 0



Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Supply Voltage (I/O) VDD -0.3 4.6 V
Analog Supply Voltage VDDIO -0.3 4.6 V
Logic Input Voltage VIN -0.3 VDD+0.3 V
Operation Temperature Top -20 70
Storage Temperature Tst -30 80





Electrical Characteristics



Parameter Symbol Min TYP MAX Unit
Voltage for LED backlight VbL 2.9 3.0 3.1 V
Supply Voltage for Logic VDD 2.4 2.8 3.3 V
Interface Operation Voltage VDDIO 1.65 1.8 3.3 V
Gate Driver High Voltage VGH 12.2 - 14.97 V
Gate Driver Low Voltage VGL -12.5 - -7.16 V
Operating Current for VDD IDD -- 8 10 mA
Current for LED backlight I bL   20 - mA
Brightness Lbr 350 400 -- cd/m2
Sleep In Mode VDD I dd -- 15 30 uA
Sleep In Mode VDDIO I ddio -- 5 10 uA

Operating Life Time

--

20000

30000

--

Hours





Interface Pin Definition



NO. Symbol Description
1 NC No Connect.
2 NC No Connect.
3 SDA SPI interface input/outpur pin.
4 SCL This pin is used to be serial interface clock.
5 RS Display data/command selection pin in 4-line serial interface.
6 RESET This signal will reset the device,Signal is active low.
7 CS Chip selection pin,Low enable,High disable.
8 GND Power Ground.
9 NC No Connect.
10 VDD Power Supply for Analog
11 LEDK LED Canthode
12 LEDA LED Anode
13 GND Power Ground.





Optical Characteristics



Item Symbol

Measuring

Conditions

Min. Typ. Max. Unit
Response Time Tr+Tf

θ = 0o

φ = 0o

25 oC

-

30 40

ms

Viewing Angle



θ

φ = 0o 25 oC - 80 -

Deg

φ =180o 25 oC - 80 -

θ

φ = 90o 25 oC - 80 -
φ =270o 25 oC - 80 -
Contrast Ratio CR - 25 oC   800 - -

Color of CIE

Coordinate

White X 25 oC 0.304 0.306 0.308

-

Y 25 oC 0.325 0.327 0.329
Red X 25 oC 0.608 0.610 0.612
Y 25 oC 0.331 0.333 0.335
Green X 25 oC 0.279 0.281 0.283
Y 25 oC 0.531 0.533 0.535
Blue X 25 oC 0.144 0.146 0.148
Y 25 oC 0.136 0.138 0.140

Transmittance

(with polarizer)

        4.8   %
