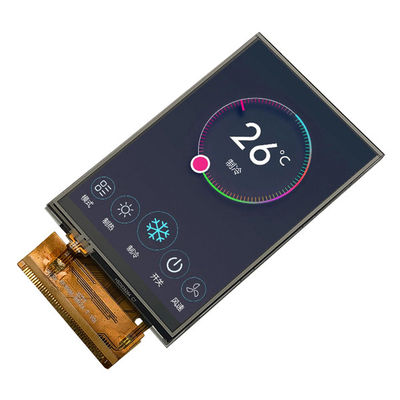

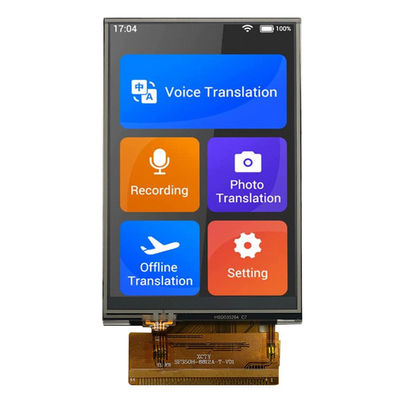

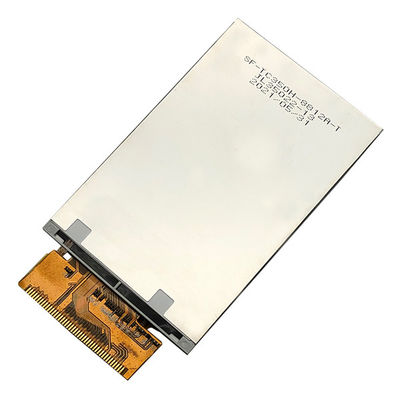

3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver

3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver
3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver 3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver 3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver

Large Image :  3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC350H-8812A-T
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD4.0 - 5.0 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3000K pcs per month

3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver

Description
Product: 3.5 Inch TFT LCD Resolution: 320 × 480 Pixels (RGB)
Interface: 16-bit Parallel (DBI Type B) Outline Dim.: 54.48*84.71*3. 25 Mm
Viewing Direction: 12 O’clock Touch Screen: With Resistive Touch Panel
Driver IC: ILI9488 Contrast Ratio: 250:1
Touch Durability: 1,000,000+ Input Cycles Surface Luminance: 300 Cd/m² (typical)
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant
Highlight:

3.5-inch TFT LCD

,

TFT LCD with Resistive Touch Panel

,

320×480 TFT LCD Display



Reliable, Cost-Effective Touch Display Solution for Demanding Embedded Applications



Saef Technology Limited presents the SF-TC350H-8812A-T, a robust 3.5-inch TFT LCD module engineered for applications where durability, simplicity, and reliability are paramount. Featuring a 320×480 resolution, integrated resistive touch panel, and a widely supported 16-bit parallel interface driven by the ILI9488 IC, this module is ideal for industrial HMIs, medical devices, point-of-sale systems, and embedded control panels.



Engineered for Stability & Ease of Integration:

  • Proven Resistive Touch Technology: With over 1,000,000 input cycles and linearity within ±1.5%, this RTP delivers reliable performance in environments where capacitive touch may be less suitable, such as gloved operation or dusty conditions.

  • Wide Operating Temperature Range: Certified for -20°C to +70°C operation and -30°C to +80°C storage, ensuring consistent performance in challenging environments.

  • Simple Interface & Low System Overhead: The 16-bit parallel interface reduces development complexity and is compatible with a wide range of microcontrollers and embedded processors, speeding up time-to-market.

  • Optical Performance Tailored for Readability: 300 cd/m² brightness and 250:1 contrast ratio provide clear visibility in typical indoor and industrial lighting conditions. The 12 o’clock viewing direction optimizes display orientation for vertical-mounted applications.



Technical Specifications for Design Consideration:

  • Power Supply: VDD = 2.8V ±0.2V, IOVCC = 1.8V–2.8V

  • Backlight: White LED edge-lit, 19.2V typical forward voltage (20mA drive)

  • Touch Panel Ratings: X-axis resistance 300–900Ω, Y-axis 200–500Ω; operating voltage ≤7V DC

  • Mechanical Outline: 54.48mm × 84.71mm × 3.25mm (max)

  • Compliance: Designed to meet industrial reliability standards with testing for high/low temperature, humidity, thermal shock, and vibration resistance



Why Choose Saef for Your Display Solution?

While this module comes standard with a resistive touch panel, we understand that project requirements evolve. Saef offers free semi-customization options, including:

  • Touch Panel Upgrades: Migrate from resistive to capacitive touch (PCT) with I²C/SPI interface.

  • Interface Adaptation: Modify to RGB, SPI, or MIPI DSI interfaces based on your system architecture.

  • Optical & Mechanical Tweaks: Adjust brightness, bonding methods, FPC length, or outline dimensions.

  • Custom Branding: Add logos, custom masks, or decorative borders.



Ideal For:

  • Industrial control panels and HMIs

  • Medical monitoring and diagnostic equipment

  • Portable test and measurement devices

  • Retail POS terminals and kiosks

  • Automotive aftermarket displays

  • Home automation and security panels



Designed for Engineers, by Engineers.
At Saef, we partner with you through the design cycle—providing samples, technical documentation, and customization support to ensure your display integrates seamlessly and performs reliably.



Call to Action for High-Value Inquiries:
Need a display that matches your reliability requirements? Contact our engineering team for datasheets, evaluation samples, or a custom design consultation.





Mechanical Dimensions



3.5-inch TFT LCD with Resistive Touch Panel | 320×480 16-bit Parallel Interface | ILI9488 Driver 0



Interface Pin Definition



NO. PIN NAME I/O Description
1 GND I Power Ground
2 LED-K6 I LED Cathode
3 LED-K5 I LED Cathode
4 LED-K4 I LED Cathode
5 LED-K3 I LED Cathode
6 LED-K2 I LED Cathode
7 LED-K1 I LED Cathode
8 LED-A I LED Anode
9 GND I Power Ground
10 GND I Power Ground
11 VCC I 2.8V Power Source
12 /RESET I Reset Signal Pin
13 GND I Power Ground
14 GND I Power Ground
15--30 DB15-DB0 I/O Data Signal
31 /RD I Read strobe signal input pin
32 /WR I Write strobe signal input pin
33 RS I Register select signal
34 CS I Input pin for chip selection signal
35 GND I Power Ground
36 IOVCC I 1.8V~2.8V Power Source
37 GND I Power Ground
38 GND I Power Ground
39 YD I



Touch Panel Pin

40 XR I
41 YU I
42 XL I
43 GND I Power Ground
44 GND I Power Ground





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C





DC Characteristics



Item Symbol Min Type Max Unit Test condition

Operating

voltage

VDD 2.6 2.8 3.0 V -
Supply current IDD - TBD - mA VDD=2.8V,Ta=25°C
Input voltage VIH 0.7VDD - VDD V



-

VIL 0 - 0.3VDD V

Input leakage

current

IIL - TBD - μA VIN=VDD or VSS





Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf   19.2   V If=20 mA
Supply Current If - 20 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 384 - mW -
Luminous Intensity for LCM



-

- 300 - Cd/m2 If=20mA
Uniformity for LCM - 80 - - % If=20 mA
Backlight Color White





Touch Screen Panel Specifications



It em Symbol Min. Type. Max. unit Remark
TransParency - - 82 - % JIS K-7105
Haze - - 1 - % JIS K-7105
Hardness Of Surface - - 3 - H 150gf 45°
FPC Peeling Strength - 5   - N Upward 90°
FPC Bending - - 3 - cycle R=1.0, 90°
Input Force - -   50 gf -
Rated Voltage V touch     7 V DC
X-axis Resistance Rx 300   900



FPC PIN

X-axis Resistance Ry 200   500
Linearity - - ±1.5 ±2.0 % -
Chattering - - - 20 ms -
Insulation Resistance Ri 10 - - MΩ -
Notes Life - 100,000 - - Times -
Input Life - 1,000,000 - - Times -





Optical Specifications



No. ITEM Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃

-

15

-

Ms
2 Transmittance (With PL) T(%) - - 7.1 - -

3

Contrast Rate

Cr

θ=0, Normal

viewing angle

-

250

-

-

4

Viewing

Angle

Hor. θR

CR>10

- 45 -

Deg

θL - 45 -
Ver. Θ+ - 45 -
Θ- - 30 -
