1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness

1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness
1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness 1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness 1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness 1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness

Large Image :  1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO105JY-7403AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD1.0 - 1.5 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3000K pcs per month

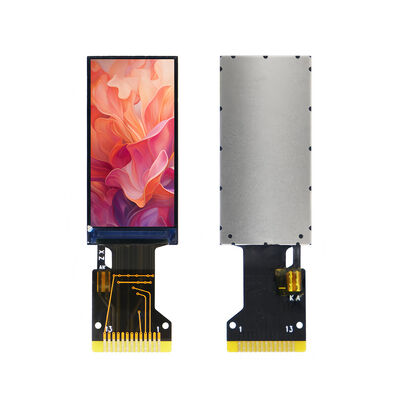

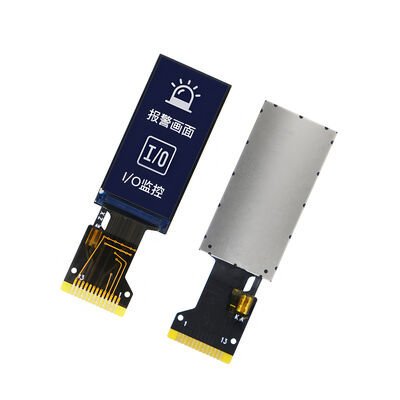

1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness

Description
Product: 1.05-inch TFT LCD Resolution: 120 X 240 Pixels (RGB)
Display Type: IPS TFT, Normally Black Interface: 4-wire SPI
Operating Temp: -20°C To +70°C Driver IC: GC9A01
Surface Luminance: 400 Cd/m² (typical) Viewing Direction: 80° All Directions
Supply Voltage: 2.5V – 3.3V Dimensions: 14.25mm X 28.60mm X 1.56mm
Touch Panel: Not Included (Customizable Upon Request) Compliance: REACH & RoHS Compliant
Highlight:

1.05-Inch TFT LCD Display Module

,

120x240 TFT LCD Display Module

,

400 cd/m2 TFT LCD Display Module

1.05-Inch TFT LCD Display Module – High Brightness, SPI Interface, Ideal for Embedded Applications

Saef Technology Limited introduces the SFTO105JY-7403AN, a premium 1.05-inch TFT LCD module designed for engineers and product developers seeking a compact, high-performance display solution. With a sharp 120x240 IPS panel and 400 cd/m² brightness, this module delivers exceptional readability in both indoor and outdoor environments. Driven by the GC9A01 controller and featuring a 4-wire SPI interface, it integrates seamlessly into space-constrained embedded systems, IoT devices, wearables, and industrial HMIs.



Key Features & Design Advantages:

  • Crisp, Wide-Angle IPS Display:
    Enjoy consistent color and clarity across an 80° viewing angle with a 262K color palette. The IPS technology ensures minimal color shift, making it ideal for multi-orientation applications.

  • Optimized for Harsh Environments:
    Operates reliably from -20°C to +70°C, with storage tolerance from -30°C to 80°C. Designed to maintain performance in demanding conditions, from automotive dashboards to outdoor monitoring equipment.

  • Low-Power, Efficient Design:
    Supports 2.5V–3.3V supply and features a single white LED backlight with typical current of 20mA. Ideal for battery-powered and energy-sensitive applications.

  • Compact & Easy to Integrate:
    Module size is just 14.25mm x 28.60mm x 1.56mm, with an active area of 11.88mm x 23.76mm. The 4-wire SPI reduces pin count and simplifies PCB layout.

  • No Touch by Default – But Fully Customizable:
    This standard model does not include a touch panel. However, Saef offers free or semi-customized options including resistive or capacitive touch overlays (RTP/CTP), tailored interfaces, connectors, and mechanical adaptations to meet your exact design requirements.



Designed for Engineers, by Engineers

We understand the challenges you face: selecting a display that balances size, clarity, power consumption, and environmental robustness. The SFTO105JY-7403AN addresses these needs with:

  • High Brightness & Optical Performance:
    400 cd/m² ensures visibility in brightly lit settings. Contrast ratio of 800:1 and fast response time enhance user experience in dynamic content applications.

  • Reliable Connectivity & Signal Integrity:
    Clear timing characteristics and well-defined pinout (including RESET, D/C, and CS control) ensure stable communication with host MCUs such as STM32, ESP32, and Raspberry Pi.

  • Quality-Backed & Compliance-Ready:
    Each module undergoes stringent inspection per MIL-STD-105E, with AQL limits for major and minor defects. Compliant with ROHS, REACH, and EU environmental directives—ready for European and North American markets.

  • Extended Durability Testing:
    Subjected to high/low temperature operation, thermal cycling, vibration, ESD (±8kV air, ±4kV contact), and drop tests to ensure long-term reliability in real-world deployments.



Why Choose Saef Technology Limited?

  • Expert Support & Customization:
    We work directly with engineering teams to provide display customization, technical documentation, and integration support. Whether you need a different interface, modified form factor, or touch functionality, we can adapt quickly.

  • Fast Prototyping & Volume Supply:
    Ideal for both R&D and scaling production. Our manufacturing facility in Shenzhen is equipped to deliver high-quality modules with consistent performance.

  • Global Logistics & Direct Engineer Access:
    Serving OEMs and system integrators across Europe and the USA with reliable shipping and direct technical contact.



Target Applications:

  • Wearable Devices

  • Portable Medical Instruments

  • Industrial Control Panels

  • Smart Home Interfaces

  • Automotive Displays

  • IoT Gateways & Sensors

  • Consumer Electronics



Elevate your product with a display that combines clarity, durability, and design flexibility.
Contact Saef Technology today for datasheets, custom quotes, and engineering samples.





Mechanical Dimensions

1.05-Inch TFT LCD Display Module – 120x240 IPS, SPI Interface, GC9A01 Driver, 400 cd/m2 Brightness 0



Absolute Maximum Ratings



Item Symbol Min. Max. Unit
Analog Supply Voltage VCC -0.3 4.6 V
Operating temperature Top -20 70
Storage temperature Tst -30 80





DC Characteristics



Item Symbol Min. Typ. Max. Unit
Analog Supply Voltage VCC 2.5 2.8 3.3 V
Input high voltage VIN 0.7*IOVCC - IOVCC V
Input low voltage VIL VSS - 0.3*IOVCC V
Output high voltage VOH 0.8*IOVCC - IOVCC V
Output low voltage VOL VSS - 0.2*IOVCC V
Input Current IIN - 20 - mA





Backlight Characteristic



Item Symbol Min. Typ. Max. Unit
Forward Voltage VF 2.9 3.0 3.1 V
Forward Current IF - 20 - mA
Power dissipation Pd - 60 - mW
LED Life Time(25 ºC) - 30000 40000 - Hrs
Surface Brightness - - 400 - cd/m2





Interface Pin Definition



Pin.No Symbol Description
1 NC No connect.
2 NC No connect.
3 SDA SPI interface input/output pin.
4 SCL Serial interface clock.
5 D/C Display data/command selection pin
6 RESX

This signal will reset the device and it must be applied to properly initialize the chip.

-Signal is active low



7



CSX

-Chip selection pin

Low enable.

High disable.

8 GND Ground.
9 NC No connect.
10 VCC Power supply for Analog.
11 LED-K Backlight cathode
12 LED-A Backlight anode
13 GND Ground.





Optical Characteristics



Item Symbol

Measuring

Conditions

Min. Typ. Max. Unit
Response Time Tr+Tf

θ = 0o

φ = 0o

25 oC

-

30 40

ms

Viewing Angle



θ

φ = 0o 25 oC - 80 -

Deg

φ =180o 25 oC - 80 -

θ

φ = 90o 25 oC - 80 -
φ =270o 25 oC - 80 -
Contrast Ratio CR - 25 oC   800 - -

Color of CIE

Coordinate

White X 25 oC 0.304 0.306 0.308

-

Y 25 oC 0.325 0.327 0.329
Red X 25 oC 0.608 0.610 0.612
Y 25 oC 0.331 0.333 0.335
Green X 25 oC 0.279 0.281 0.283
Y 25 oC 0.531 0.533 0.535
Blue X 25 oC 0.144 0.146 0.148
Y 25 oC 0.136 0.138 0.140

Transmittance

(with polarizer)

        5.09   %
