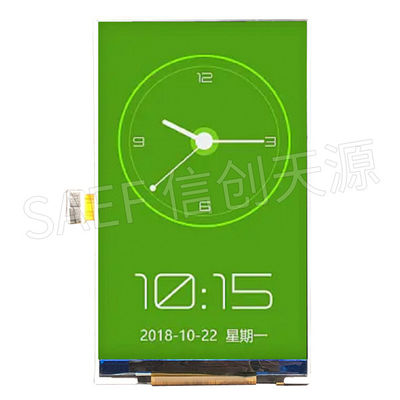

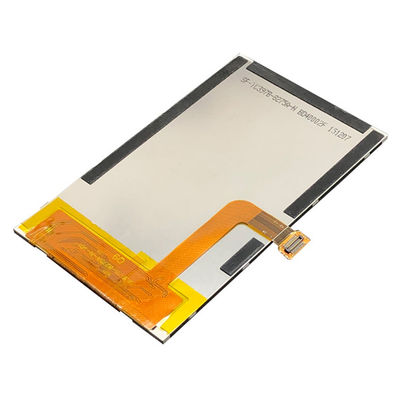

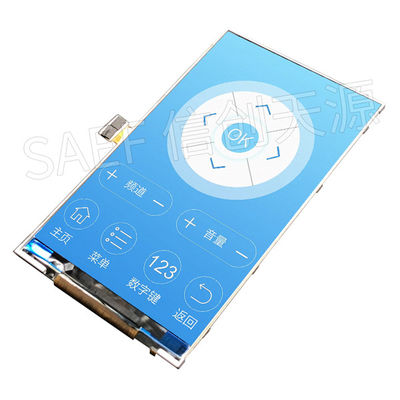

3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver

3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver
3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver 3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver 3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver

Large Image :  3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC397B-8275A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD4.0 - 5.0 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3000K pcs per month

3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver

Description
Product: 3.97-inch TFT LCD Resolution: 480 X 800 Pixels (RGB)
Driver IC: NT35512SH Or Equivalent Outline Dim.: 57.14 X 96.85 X 1.95 Mm
Operating Temp: -20°C To +70°C Touch Panel Option: Customizable (RTP/CTP Available)
Viewing Direction: All Viewing Angles (IPS) Interface: MIPI (DSI)
Contrast Ratio: 800:1 (Typ.) Pin Number: 24 Pins
Surface Luminance: 420 Cd/m2(nits) Backlight Type: White LED
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

3.97-inch TFT LCD display module

,

480x800 MIPI interface display

,

high brightness NT35512SH driver



High-Brightness 3.97-inch TFT LCD Module – MIPI Interface, Ideal for Outdoor & Industrial Displays



Saef Technology Limited introduces the SF-TC397B-8275A-N, a robust 3.97-inch TFT LCD module engineered for applications requiring superior visibility in high-ambient light conditions. Featuring a 480×800 RGB resolution, MIPI (DSI) interface, and an exceptional 420 cd/m² brightness, this display is perfect for industrial HMIs, outdoor equipment, medical devices, and automotive displays.



Designed for Engineers – Key Technical Highlights:

  • Ultra-High Brightness (420 cd/m²) – Ensures clear readability even under direct sunlight or bright indoor lighting.

  • MIPI DSI Interface – Low-power, high-speed serial interface ideal for modern embedded processors (ARM, Qualcomm, etc.).

  • Wide Operating Temperature (–20°C to +70°C) – Reliable performance in extreme environments.

  • High Contrast Ratio (800:1) – Delivers sharp images with deep blacks and vibrant colors.

  • All-Direction Viewing – Consistent image quality from any angle.

  • NT35512SH Driver IC – Supports advanced display control and low-power modes.



Customization & Integration Support:
This module is available as a standalone display or can be fully customized with resistive or capacitive touch panels (RTP/CTP), tailored FPC lengths, interface adaptations, and optical bonding. Our engineering team provides complimentary design-in support to ensure seamless integration into your system.

Built for Reliability & Longevity:
Each unit undergoes stringent testing per MIL-STD-105E, including high/low temperature storage, humidity resistance, thermal shock, and AQL-based visual inspection. With a 50,000-hour operational lifetime, this display is built to endure demanding applications.



Why Partner with Saef Technology?

  • Expert Technical Guidance – Direct access to our display engineers for schematic reviews, firmware tuning, and optical optimization.

  • Fast Prototyping – Custom samples available within 2–3 weeks.

  • EU & US Market Ready – Designed to meet international safety and environmental standards.

  • OEM/ODM Flexibility – From semi-custom to full-custom designs, we adapt to your supply chain and compliance needs.



Ideal Applications:

  • Outdoor POS and kiosks

  • Industrial control panels and HMIs

  • Medical monitors and diagnostic devices

  • Automotive dashboards and infotainment

  • Aviation and marine displays

  • High-brightness handheld terminals



Contact us today for datasheets, pricing, and a free customization consultation. Let Saef Technology be your trusted partner in high-performance display solutions.





Mechanical Dimensions





3.97-inch TFT LCD Display Module, 480x800 MIPI Interface, High Brightness, NT35512SH Driver 0





Interface Pin Definition



NO. PIN NAME Description
1 MIPI_TCN DSI-CLK- clock signals
2 MIPI_TCP DSI-CLK+ clock signals
3 GND GROUND
4 MIPI_TDN0 DSI-D0- data signals
5 MIPI_TDP0 DSI-D0+ data signals
6 GND GROUND
7 MIPI_TDP1 DSI-D1+ data signals
8 MIPI_TDN1 DSI-D1- data signals
9 GND GROUND
10-11 NC NC
12 GND GROUND
13-14 NC NC
15 GND GROUND
16 VDD18_PMU Power Supply 1.8V-2.8V
17 NC NC
18 LRSTB LCM reset input
19 NC NC
20 LPTE Tearing effect output
21 VDD28_PMU Power Supply 2.8V
22 GND GROUND
23 VLED_P LED Anode
24 VLED_N LED Cathode



Absolute Maximum Ratings



Item Symbol Min. Max. Unit
Supply Voltage Power supply VDD -0.3 +5.1 V
Analog - - - V
IO IOVDD -0.3 +5.1 V
Input Voltage Vi -0.3 IOVDD+0.3 V
Storage temperature T stg -30 +80 ºC
Operating temperature T op -20 +70 ºC
Storage humidity Hstg 10 Note 1 %RH
Operating humidity H op 10 Note 1 %RH

Note 1: 90%RH max, If Ta is below 50ºC; 60%RH max, If Ta is over 60ºC.





DC Characteristics



Item Symbol Min. Typ. Max. Unit
Supply Voltage Power supply VDD 2.4 2.8 3.3 V
Analog VCI 2.4 2.8 3.3 V
IO IOVDD 1.65 1.8/2.8 3.3 V
Logic Low input voltage VIL -0.3IOVDD - 0.3IOVDD V
Logic High input voltage VIH 0.7IOVDD - IOVDD V
Logic Low output voltage VOL - - 0.2IOVDD V
Logic High output voltage VOH 0.8IOVDD - - V
Current Consumption Normal display Ivdd - 30 - mA
Standby mode Ivdd - 100 - uA
Frame Frequency fFR - 60 - Hz





Optical Characteristics



Backlight On (Transmissive Mode) Item Symbol Condition Specification Unit
Min. Typ. Max.
Luminance on surface(If =15mA) Lv

Normally

viewing

angle

θX = θY =0º

360 420 - cd/m²
Contrast ratio CR - 1000 - -
Response time TR - 10 20 ms
TF - - 20 30







Chromaticity

Transmissive

Red XR



-

0.645 0.660 0.675 -
YR 0.300 0.315 0.330 -
Green XG 0.229 0.244 0.259 -
YG 0.554 0.569 0.584 -
Blue XB 0.128 0.143 0.158 -
YB 0.073 0.088 0.103 -
White XW 0.273 0.288 0.303 -
YW 0.293 0.308 0.326 -

Viewing

Angle

Horiz

ontal

θX+



Center

CR≥10

- 80 -





Deg.

θX- - 80 -

Vertic

al

θY+ - 80 -
θY- - 80 -
  NTSC Ratio(Gamut) - - - 60 - %
