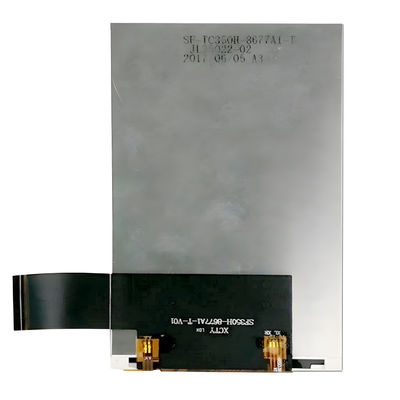

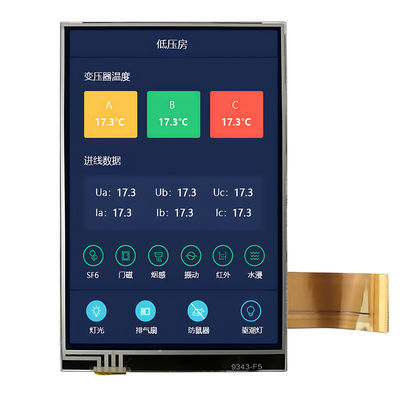

3.5-inch TFT LCD Display Module – 320x480 RGB, ILI9488 MCU Interface, Industrial Grade, Wide Temperature

3.5-Inch TFT LCD Display Module – High-Brightness, Wide-Temperature, MCU Interface for Industrial HMI & Embedded Systems

Saef Technology Limited introduces a robust 3.5-inch TFT LCD display module, engineered for demanding applications where clarity, reliability, and ease of integration are critical. Featuring a bright 320×480 RGB panel, ILI9488 driver, and wide operating temperature range, this display is ideal for industrial HMIs, medical devices, automotive dashboards, IoT terminals, and portable instruments.

Key Features & Technical Advantages:

✅ High-Resolution TFT Display
320 × 480 RGB pixels deliver sharp text, graphics, and icons with true color representation.

✅ Wide Operating Temperature Range
Rated for -20°C to +70°C, ensuring stable performance in challenging environments—from factory floors to outdoor kiosks.

✅ MCU Parallel Interface with ILI9488 Driver
Simple 16-bit parallel interface enables fast data transfer and easy integration with common microcontrollers (STM32, PIC, AVR, NXP).

✅ High Brightness & Excellent Contrast
200 cd/m² brightness and 700:1 contrast ratio ensure clear visibility even under bright ambient light.

✅ Wide Viewing Angles
Horizontal viewing angle up to 45° left/right, vertical up to 35° top / 30° bottom, suitable for multi-user applications.

✅ Low Power Consumption
Typical logic current <5mA, with efficient LED backlight design for extended battery life in portable devices.

✅ Industrial-Grade Reliability
Tested under thermal shock, humidity, and extended temperature cycles per industry reliability standards.

✅ Customizable Touch & Design Options
We offer free semi-custom design support—add resistive or capacitive touch panels, modify connectors, adjust firmware, or tailor mechanical outlines to your exact specifications.

Engineered for Hassle-Free Integration

Saef’s 3.5-inch TFT module is designed with the system engineer in mind:

• Integrated DC/DC converter simplifies power supply design

• Detailed timing diagrams & initialization code provided for faster prototyping

• FPC with reinforced bending area ensures reliable connections in compact designs

• Mechanical drawings with tolerances included for precise mounting and assembly

Whether you’re developing an industrial control panel, a medical monitor, a vehicle display, or a smart home controller—this module delivers reliable performance with minimal design overhead.

Why Partner with Saef Technology?

• Technical Expertise: Our engineering team supports schematic review, firmware tuning, and customization requests.

• Fast Prototyping: Samples available within 5–7 business days with full documentation.

• Market Ready: Compliant with ROHS, REACH, and CE directives for seamless entry into European and North American markets.

• Quality Assured: Each unit undergoes AQL inspection per MIL-STD-105E Level II, with 0.65% AQL for major defects.

Ideal Applications:

• Industrial HMIs & Control Panels

• Medical Monitoring & Diagnostic Devices

• Automotive & Marine Displays

• Portable Test & Measurement Equipment

• IoT Gateways & Smart Home Panels

• Retail POS & Kiosk Systems

Ready to Design with Confidence?
Contact our technical sales team for datasheets, sample initialization code, or a free design consultation. Let us help you integrate a display that meets your exact requirements.

Mechanical Dimensions

Pin Interface Definition

Maximum Absolute Limit

DC Characteristics

Backlight Electrical-optical Characteristics

Optical Characteristics
