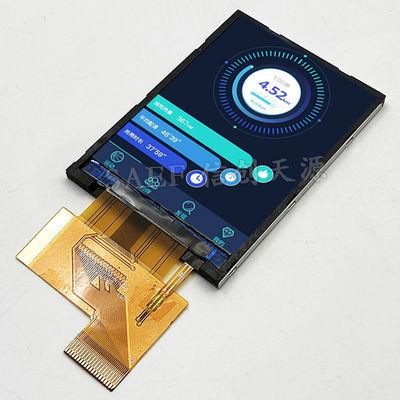

QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface

QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface
QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface

Large Image :  QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC220T-8607A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD 3 - 3.8 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 4-8 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3,000,000 Pieces per Month

QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface

Description
Product: 2.2" QVGA RGB TFT LCD Resolution: 240x320 Pixels
Touch Screen: Without Touch Screen Viewing Direction: 12 O'clock
Interface: RGB 18bits Pin Number: 39 Pins
Connection: Plugging Surface Luminance: 300 Cd/m2
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant

SF-TC220T-8607A-N: A High-Performance 2.2-Inch TFT LCD Module Designed for Versatile Embedded System Integration
Saef Technology Limited presents the SF-TC220T-8607A-N, a robust and versatile 2.2-inch TFT LCD module delivering sharp QVGA (240x320) resolution. Engineered with the capable ST7789V driver IC and offering a flexible, configurable parallel interface (RGB or MCU mode), this module is designed for engineers and developers in the USA and Europe who require a reliable, high-visibility display for industrial controls, portable medical devices, smart home interfaces, and IoT terminals. Its compact form factor and -20°C to +70°C operational range make it a dependable choice for both commercial and demanding environments.

Technical Deep Dive: Addressing Core Integration Challenges
Engineered to Solve Specific Design Hurdles in Embedded Displays:

  • Interface Flexibility for Optimal Processor Matching: The module's key strength is its configurable parallel interface. Using the IM[3:0] pins, engineers can select between 16/18-bit RGB mode for high-speed, dedicated display controllers or MCU parallel mode (8080/6800 series) for direct connection to microcontrollers. This solves the common dilemma of choosing a display that matches your host processor's native interface, preventing the need for external bridge ICs and simplifying your PCB design.

  • Superior Optical Performance in a Compact Size: With a typical brightness of 300 nits and a contrast ratio of 700:1, this 2.2-inch display ensures excellent readability. The 12 o'clock viewing direction is optimized for typical vertical mounting in handheld devices or control panels, providing consistent color and contrast to the primary user.

  • Robust Construction for Long-Term Reliability: Designed to withstand the rigors of continuous operation, the module is rated for a wide industrial temperature range and subjected to comprehensive reliability testing, including high/low temperature operation, thermal shock, and humidity resistance. This ensures stable performance in applications from factory floors to automotive interiors.

  • Simplified Power Design: Separate logic (IOVCC: 1.8V/2.8V) and analog (VDD: 2.8V) supply pins allow for fine-grained power management, helping to optimize overall system power consumption—a critical factor in battery-powered portable devices.

Targeted Applications & Customization Potential
Ideal for Enhancing User Interaction in:

  • Industrial Handheld Terminals & HMIs: For data loggers, portable test equipment, and control panels where a clear, responsive display is needed in varying environmental conditions.

  • Consumer Electronics & Smart Appliances: Perfect for high-end remote controls, thermostat interfaces, audio equipment displays, and smart kitchen gadgets requiring a vibrant color UI.

  • Automotive Aftermarket & Telematics: Suitable for dash-mounted displays, rear-seat entertainment controls, or diagnostic tools within the specified temperature range.

Saef Technology: Your Partner for Tailored Display Solutions

  1. Bridge the Gap with Customization: Does your design require resistive (RTP) or capacitive (CTP) touch functionality? Need a specific FPC length, connector type, or backlight brightness? We offer flexible customization services with low MOQs. We can integrate touch panels, modify configurations, or adjust specifications to create a display module that fits your product seamlessly, not the other way around.

  2. Design-In Support for Engineers: We provide complete and clear technical documentation: detailed pinout descriptions, interface timing specifications (setup/hold times), power sequencing guidelines, and initialization code examples. This empowers your engineering team to integrate quickly and confidently.

  3. Quality and Compliance for Global Markets: Manufactured under an ISO9001:2015 certified quality system and adhering to RoHS and REACH environmental standards, our modules are designed to meet the stringent requirements of North American and European markets, ensuring a smooth path to certification for your end product.

Call to Action for Technical Buyers

  • Designed for Decision-Makers: We understand the criteria engineers and procurement specialists evaluate: technical specs, reliability data, supplier flexibility, and total cost of integration.

  • Request for Evaluation: We invite product designers, embedded engineers, and sourcing professionals to evaluate the SF-TC220T-8607A-N. Contact our technical sales team to request samples, discuss your specific application requirements, or explore customization options for your project. Choose Saef as a technology partner committed to providing not just components, but optimized display solutions that bring your product vision to life.




Mechanical Dimensions


QVGA 240x320 2.2 Inch TFT Display , 39 Pin LCD Display ST7789V 18 Bits Interface 0




PIN Interface Definition



NO. PIN NAME I/O Description
1 LEDA O LED Anode
2 LEDK O LED Cathode
3 IOVCC I Power Supply 2.8V/1.8V Voltage
4 VDD I Power Supply 2.8V Voltage
5 SDO I SPI Interface output Pin
6 TE I Tear effect output pin
7-24 DB17-DB0 I/O Display Data I/O
25 SDA I SPI Interface Input Pin
26 DOTCLK I Clock Signal to Sample each date
27 ENABLE I Data enable signal for RGB interface operation
28 HSYNC I Horizontal Synchronizing Signal
29 VSYNC I Vertical Synchronizing Signal
30 RD I Read strobe signal input pin
31 WRX I Write strobe signal input pin
32 DCX I Register select signal
33 CS I Input pin for chip selection signal
34 RESET I LCM Reset input signal
35 IM0 I The MCU interface mode select.
36 IM1 I The MCU interface mode select.
37 IM2 I The MCU interface mode select.
38 IM3 I The MCU interface mode select.
39 GND I Ground





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 0.3~4.6 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C




DC Characteristics



Item Symbol Min Type Max Unit Test condition

Operating

voltage

VDD 2.6 2.8 3.3 V

-

Supply current IDD - - 5 mA VDD=2.8V,Ta=25.C
Input voltage VIH 0.8VDD - VDD V

-

VIL 0 - 0.2VDD V

Input leakage

current

IIL -1.0

-

1.0 μA VIN=VDD or VSS




LED Backlight Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf - 3.2 - V If= 80mA
Supply Current If - 80 - mA -
Reverse Voltage Vr - - - V -
Power dissipation Pd - - - mW -
Luminous Intensity for LCM

-

- 300

-

Cd/m2 If= 80 mA
Uniformity for LCM - - - - % If=80 mA
Backlight Color White




Optical Characteristics



No. Item Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃

-

25

-

Ms
2 Transmittance (With PL) T(%)

-

-

6.1

-

-

3

Contrast Rate

Cr

θ=0, Normal viewing

angle

500

700

-

-

4

Viewing

Angle

Hor. θR

CR>10

- 60 -

Deg

θL - 60 -
Ver. Θ+ - 35 -
Θ- - 45 -
