0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact

0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact
0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact 0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact 0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact

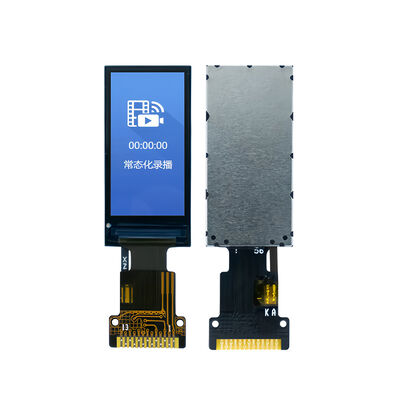

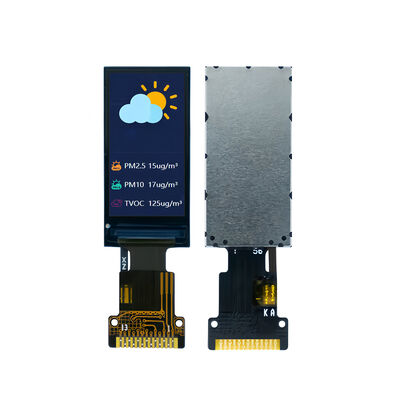

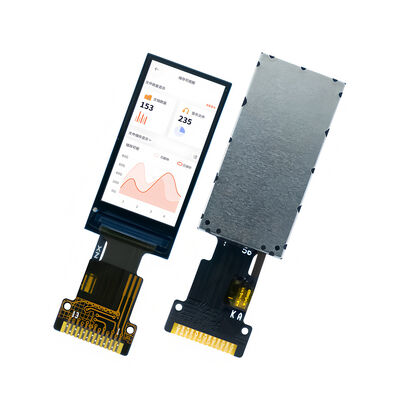

Large Image :  0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO096JY-7419AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD 0.69 - 0.99 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 4-8 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, PayPal
Supply Ability: 3,000,000 Pieces per Month

0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact

Description
Product: TFT LCD Display Screen Size: 0.96 Inch (Diagonal)
Resolution: 80 (RGB) X 160 Pixels Interface: 4-Wire SPI (Serial Peripheral Interface)
Driver IC: ST7735S Brightness: 260 Cd/m² (Typical)
Viewing Angle: 80° (All Directions) Operating Temp.: -20°C To +70°C
Module Dimensions: 13.5mm (H) X 27.9mm (V) X 1.5mm (D) Supply Voltage: 2.8V / 3.3V (VCC), 1.8V/2.8V/3.3V (IOVCC)
Backlight: 1x White LED (20mA Typical) Compliance: RoHS, REACH

SFTO096JY-7419AN: The Ultimate Ultra-Compact Color Display Solution for Space-Constrained Embedded Systems


Engineered by Saef Technology Limited, the SFTO096JY-7419AN defines the benchmark for miniaturized color displays. This 0.96-inch TFT LCD module delivers a crisp 80x160 resolution within an incredibly compact footprint of 13.5mm x 27.9mm. Driven by the popular ST7735S IC via a simple 4-wire SPI interface, it offers engineers in the USA and Europe a reliable, low-power color display solution for wearable technology, IoT sensors, portable medical devices, and compact industrial controls where every cubic millimeter counts.



Engineered for Integration Where Others Cannot Fit:

  • Maximizing Minimal PCB Real Estate: With an active area of just 10.8mm x 21.7mm and a total module depth of 1.5mm, this display solves the primary challenge of adding a user interface to postage-stamp-sized devices. It enables color status indication, basic graphics, and data readouts where previously only LEDs were possible.

  • Microcontroller-Friendly Efficiency: The 4-wire SPI interface minimizes pin count requirements (CS, DC, RESET, SDA, SCL), freeing critical GPIOs on resource-constrained microcontrollers (MCUs) like ARM Cortex-M0+ or ESP32. This simplifies PCB routing and reduces firmware overhead compared to parallel interfaces.

  • High Visibility in a Tiny Package: Despite its size, it delivers a bright 260-nit output with an 800:1 contrast ratio, ensuring clear readability in various lighting conditions. The 80-degree viewing angle provides flexibility in device orientation.

  • Robust for Demanding Applications: Rated for -20°C to +70°C operation and subjected to full environmental stress testing (thermal cycling, vibration, ESD), this module is designed to endure the rigors of portable and outdoor use.

  • Simplified Power Management: Flexible logic (IOVCC: 1.8V/3.3V) and analog (VCC: 2.8V/3.3V) supply voltages, combined with a single low-current LED backlight, ease integration into low-power system architectures.

Ideal for Your Next-Generation Micro-Device:

  • Wearable Electronics & Health Monitors (Fitness Bands, Smart Patches): Provides essential user feedback with minimal size and power impact.

  • Industrial IoT Sensors & Handheld Tools: For displaying real-time readings, configuration menus, or status codes on portable diagnostic equipment.

  • Consumer Electronics Interfaces (Smart Home, Audio Devices): Adds premium feedback to compact remotes, Bluetooth trackers, or smart appliance controls.

  • Portable Medical & Diagnostic Devices: Suitable for compact monitors where displaying vital numeric data or simple waveforms is required.

Saef Technology: Your Partner for Miniaturized Display Solutions

  1. Customize to Your Exact Need: Need a touch-enabled version (RTP or PCAP) for interactive micro-interfaces? Require a different connector or FPC orientation? We specialize in low-MOQ customizations and semi-custom designs to adapt this 0.96-inch platform to your specific mechanical and electrical requirements.

  2. Designed for Reliable Manufacturing: The module undergoes AQL inspection per MIL-STD-105E, ensuring consistent quality for volume production. We provide complete integration support: schematic references, driver libraries, and precise 2D/3D mechanical files.

  3. A Trusted Supply Chain for Global Markets: As an ISO-certified manufacturer, our products are designed to meet EU RoHS and REACH compliance, facilitating smooth integration into products destined for North American and European markets.

Technical Assurance for Engineers

  • Proven Reliability: Comprehensive reliability testing validates performance under thermal, mechanical, and environmental stress.

  • Engineer-Centric Documentation: We provide clear datasheets, initialization sequences, and application notes to accelerate your prototyping phase from days to hours.

  • Sample & Support Ready: We invite embedded hardware engineers, product designers, and procurement specialists to evaluate the SFTO096JY-7419AN. Contact our technical sales team to request samples, discuss your customization ideas, or obtain a project-specific quotation. Partner with Saef to overcome size constraints without compromising on display capability or supplier reliability.



Mechanical Dimensions



0.96 Inch TFT LCD Module | 80x160 SPI Interface, ST7735S Driver, Ultra-Compact 0



Pin Interface Definition



Pin.No Symbol Description
1 TP0 TP Interface
2 TP1 TP Interface
3 SDA

Serial data input

4 SCL

Serial clock pin.

5

D/C

Register select pin

D/C=’ 1’: Display data.

D/C=’0’: Command data.

6 RESET

LCM Reset pin

7 CS

Chip select pin(“Low” enable)

8 GND Ground
9 NC Empty PIN
10 VCC

Power supply for Analog(2.8V-3.3V)

11 LEDK

Cathode of Backlight

12 LEDA

Anode of Backlight

13 GND Ground





Absolute Maximum Ratings



Parameter Symbol Min Max Unit
Logic Supply Voltage IOVCC -0.3 4.6 V
Analog Supply Voltage VCC -0.3 4.6 V
Operating temperature Top -20 70
Storage temperature Tst -30 80
Humidity RH

--

90%(Max60C) RH





Electrical Characteristics



Parameter Symbol Min Typ Max Unit
Logic Supply Voltage IOVCC 1.65 1.8/2.8 3.3 V
Analog Supply Voltage VCC 2.6 2.8 3.3

--

Input Current Idd

--

20

--

mA





Backlight Unit Characteristics



Item Symbol Min Typ Max Unit
Forward Voltage Vf 3.0 3.2 3.4 V
Forward Current If

--

20

--

mA
Operating Life Time

--

20000 30000

--

Hrs
Surface Brightness

--

--

260

--
