2.4 Inch IPS TFT LCD Module with RTP Touch | 240x320, MCU Interface, Industrial Grade

Description

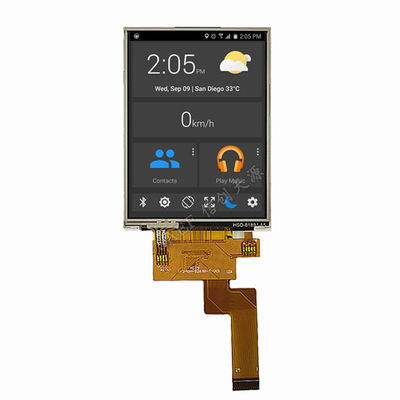

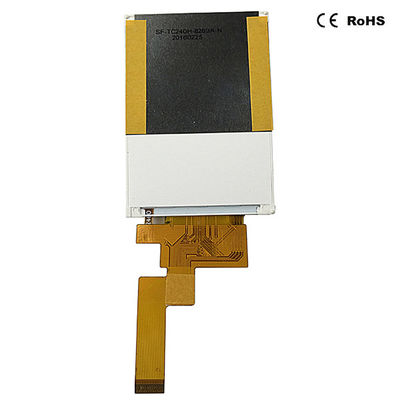

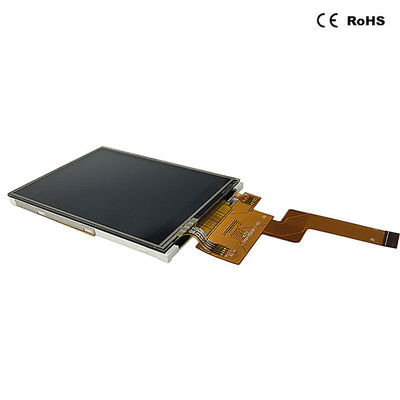

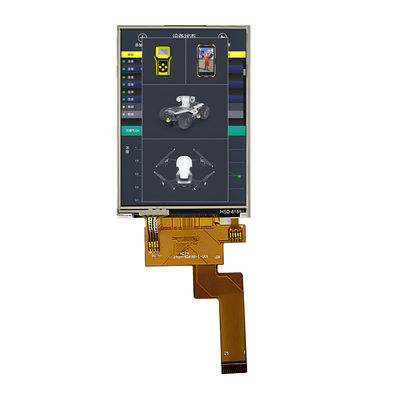

Product: TFT LCD Display With RTP Screen Size: 2.4 Inch (Diagonal)
Resolution: 240 (RGB) X 320 Pixels (QVGA) Panel Technology: IPS (In-Plane Switching)
Driver IC: ST7789V Interface: 8-bit MCU Parallel (8080-series Compatible)
Touchscreen: 4-Wire Resistive Touch Panel (RTP) Brightness (Typical): 250 Cd/m²
Operating Temperature: -20°C To +70°C Viewing Angle: 80° / 80° / 80° / 80° (IPS Wide View)
Compliance: REACH & RoHS Compliant Package: FPC With Connector

SF-TC240H-8269B-T: A Compact, Reliable 2.4-Inch IPS TFT LCD Module Optimized for Embedded Systems and HMI Applications


Engineered by Saef Technology Limited, the SF-TC240H-8269B-T is a high-visibility, 2.4-inch TFT LCD module featuring IPS technology for wide viewing angles and a built-in 4-wire Resistive Touch Panel (RTP). With its 240x320 QVGA resolution, straightforward 8-bit MCU parallel interface, and robust -20°C to +70°C operating range, this module is the ideal display solution for engineers in the USA and Europe designing portable medical devices, industrial handheld terminals, consumer appliances, and IoT dashboards where space, cost, and reliability are paramount.



Addressing Core Design Challenges in Compact Device Development:

  • Superior Readability from Any Angle: The IPS panel technology ensures consistent color and contrast across an 80-degree viewing cone in all directions. This solves the common issue of image inversion or color shift when operators view handheld tools or fixed panels from non-perpendicular angles.

  • Simplified Integration for Microcontrollers: The direct 8-bit MCU parallel interface (8080-series compatible) and ST7789V driver IC eliminate the need for complex protocol converters. Engineers can connect it directly to a wide range of low-cost microcontrollers (ARM Cortex-M, etc.), significantly reducing BOM cost and firmware complexity compared to SPI-only or MIPI-based displays.

  • Proven & Cost-Effective Touch Input: The integrated 4-wire Resistive Touch Panel (RTP) offers reliable single-touch input with a 1,000,000-touch lifespan, works with a stylus or glove, and is immune to accidental touches from liquids or debris—a practical choice for many industrial and medical environments where capacitive touch may be unsuitable.

  • Built for Long-Term Reliability: Subjected to 120-hour high/low temperature and humidity operational tests, the module is designed for endurance. The LED backlight offers adjustable brightness and good uniformity, ensuring long-term performance in varied ambient lighting conditions.

  • Space-Efficient Form Factor: With a compact outline of 60.26mm x 42.72mm x 3.4mm and a connection via a single FPC, it maximizes the available space for your core electronics, a critical consideration for portable and wearable device design.



Ideal for Solving Interface Challenges in:

  • Industrial Handheld Tools & Test Equipment (US/Germany Focus): For data loggers, multimeters, and portable scanners where clear visibility in bright light and reliable glove-compatible touch input are essential.

  • Medical & Wellness Monitoring Devices: Suitable for patient monitors, infusion pumps, and diagnostic tools requiring a robust, easy-to-clean interface that functions reliably in clinical environments.

  • Smart Home Controls & Consumer Electronics: Perfect for thermostat interfaces, security panel keypads, and appliance displays where a cost-effective, user-friendly touch interface is needed.



Saef Technology: Your Flexible Display Partner

  1. Adapt to Your Exact Needs: Need a version without touch (RTP) to reduce cost? Or require a different touch controller interface? We offer flexible customization and low MOQ options to tailor this 2.4-inch module to your specific project requirements, accelerating your time-to-market.

  2. Designed for Manufacturing: The module undergoes AQL inspection per MIL-STD-105E Level II, ensuring consistent quality for your production line. Complete documentation—including precise mechanical drawings, pinout definitions, and initialization code examples—is provided to streamline your PCB layout and software development.

  3. Trusted Supply for Global Markets: As an ISO-certified manufacturer, Saef ensures products are built to meet international standards, providing a reliable supply chain for OEMs in North America and the European Union.



Technical Assurance & Next Steps

  • Robust Quality Foundation: Manufactured under a stringent quality management system, with comprehensive reliability testing validating performance across environmental stresses.

  • Engineer-Centric Support: We provide the technical data you need for confident integration. Our team understands the challenges of embedded design and is ready to support your prototyping phase.

  • Evaluate for Your Project: We invite embedded systems engineers, product designers, and procurement professionals to evaluate the SF-TC240H-8269B-T. Contact us today to request samples, discuss customization possibilities, or obtain a competitive quotation. Choose Saef for a display partner that combines proven performance with the flexibility to match your unique design vision.



Mechanical Dimensions

2.4 Inch IPS TFT LCD Module with RTP Touch | 240x320, MCU Interface, Industrial Grade 0

2.4 Inch IPS TFT LCD Module with RTP Touch | 240x320, MCU Interface, Industrial Grade 1



Pin Interface Definition



NO. PIN NAME I/O Description
1 LED_K O LED Cathode
2 LED_A O LED Anode
3 GND I Ground
4 VCC I Power Supply 2.8V Voltage
5 IOVCC I Power Supply 2.8V/1.8V Voltage
6 FMARK O Tear effect output pin
7 /CS I Input pin for chip selection signal
8 RESET I LCM Reset input signal
9 RS I Register select signal
10 /WR I Write strobe signal input pin
11 /RD I Read strobe signal input pin
12 GND I Ground
13-20 DB7-DB0 I/O Display Data I/O
21 GND I Ground
22 XR O Touch Panel Pin
23 YD O Touch Panel Pin
24 XL O Touch Panel Pin
25 YU O Touch Panel Pin





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C





DC Characteristics



Item Symbol Min Type Max Unit Test condition

Operating voltage

VDD 2.6 2.8 3.3 V -
Supply current IDD - - 5 mA VDD=2.8V,Ta=25°C
Input voltage VIH 0.8VDD - VDD V



-

VIL 0 - 0.2VDD V

Input leakage current

IIL -1.0 - 1.0 μA VIN=VDD or VSS





Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf 3.0 3.2 3.4 V If=80mA
Supply Current If - 80 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd -   - mW -
Luminous Intensity for LCM

-

- 250 - Cd/m2 If=80mA
Uniformity for LCM - 80 - - % If=80 mA
Backlight Color White





Resistive Touch Panel Specifications



Item Symbol Min. Type. Max. unit Remark
TransParency - - 82 - % JIS K-7105
Haze - - 1 - % JIS K-7105
Hardness Of Surface - - 3 - H 150gf45°
FPC Peeling Strength - 5   - N Upward 90°
FPC Bending - - 3 - cycle R= 1.0, 90°
Input Force - -   50 gf -
Rated Voltage V touch     7 V DC
X-axis Resistance Rx 300   900

FPC PIN

X-axis Resistance Ry 200   500
Linearity - - ±1.5 ±2.0 % -
Chattering - - - 20 ms -
Insulation Resistance Ri 10 - - -
Notes Life - 100,000 - - Times -
Input Life - 1,000,000 - - Times -
