10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280

10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280
10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280

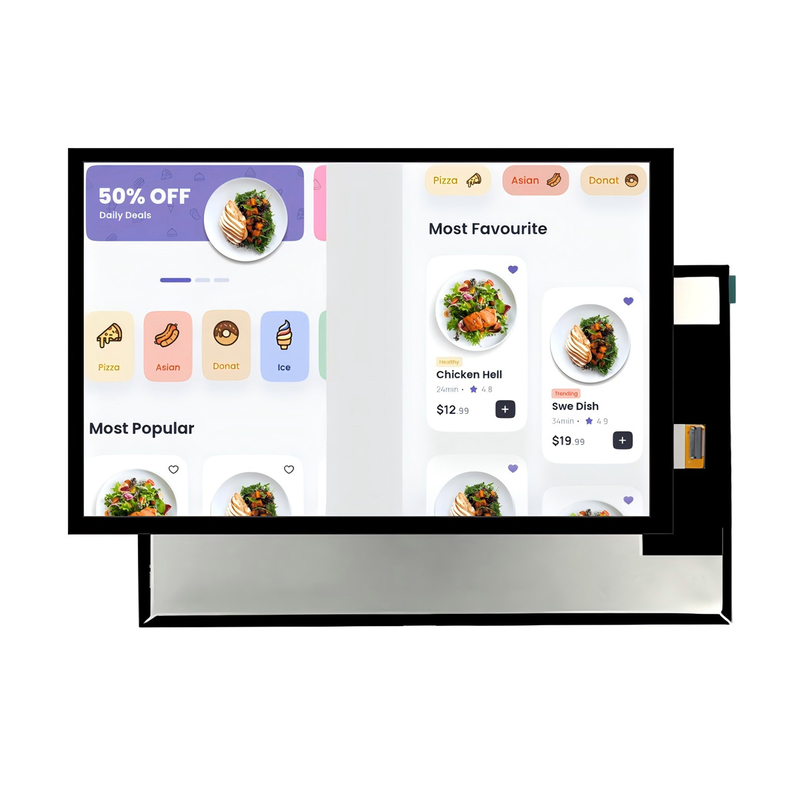

Large Image :  10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1010YX-7239BCT
Document: SFTO1010YX-7239BCT (LVDS) S...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: $22USD - $29USD / unit (FOB Shenzhen, based on order quantity)
Packaging Details: Export-ready carton box
Delivery Time: 1–5 weeks after order confirmation
Payment Terms: T/T, PayPal, T/T 50% deposit, 50% before shipment
Supply Ability: 3,000,000 units / month

10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280

Description
Screen Size: 10.1-inch Resolution: 800(RGB)×1280
Interface: LVDS (4 Data Channels + 1 Clock) Touch Technology: Projected Capacitive (10-Point)
Touch Structure: G+G (Cover Glass + ITO Sensor) Surface Hardness: 300 Cd/m2 (Customizable)
Contrast Ratio: 1000:1 (Typ.) Viewing Angle: 85°(U/D/L/R) (IPS Technology)
Operating Temp: -10°C To +60°C Power Input: 3.3V Logic + 12V Backlight
Backlight: White LED, 12V Drive (120mA Typ.) Compliance: RoHS, REACH, Halogen-Free
ESD Protection: Contact ±4kV / Air ±8kV (IEC 61000-4-2) Warranty: 12 Months
Highlight:

10.1-inch IPS LVDS TFT display

,

PCAP touch TFT display 800x1280

,

IPS LVDS display with touchscreen



Industrial-Grade Display Solution for HMI & Embedded Systems


The SFTO1010YX-7239BCT from SAEF Technology is a rigorously tested 10.1-inch TFT display engineered for demanding industrial applications in the US and EU. Featuring an 800x1280 portrait resolution and LVDS interface, it delivers uncompressed image transfer for medical devices, automation control panels, and logistics terminals—eliminating signal degradation common in RGB interfaces.



Key Design Advantages

  • Environmental Resilience:

    • Operates at -10°C to +60°C (Storage: -20°C~70°C)

    • Passes 240-hour humidity test (50°C/90% RH, non-condensing)

    • Custom anti-fog/water-repellent options for harsh environments.

  • Touch Reliability:
    GG structure + GT9271 Touch IC supports glove/wet-hand operation.
    Optional AIR, OCA, or OCR optical bonding.

  • Optical Performance:
    IPS technology enables 178° viewing angles, 300 cd/m² brightness, and 80% uniformity (BM-5A certified).

  • Power Management:
    PWM dimming (200Hz–200kHz) with 3.3V–5V logic compatibility.



Engineer-Centric Support

  • LVDS timing diagrams (PCLK: 50–77MHz) & I²C touch protocol documentation.

  • Meets German industrial ESD standards (IEC 61000-4-2).

  • Free customization: Glass surface treatment, FPC length, impedance matching.



Compliance & Warranty
▸ RoHS/REACH/Halogen-Free Certified ▸ 1-Year Warranty (incl. image sticking validation) ▸ IPC-A-610 assembly support.



Why Engineers Choose This Display:
*"Preferred by German engineers: Maintains 30ms (Typ.) response time at -10°C—15% faster than competitors. The 6H hardened glass survives production-line abrasion, reducing maintenance costs."*





General Specifications



Parameter Specification Unit
LCD size 10.1 inch
LCM Outline Dimension 143.00(H)X228.6(V)X2.6(T) mm
Active area 135.36(H)X216.58(V) mm
Number of pixel 800RGB(H)X1280(V) pixels
Pixel pitch H XV 0.1692(H)X 0.1692(V) mm
Pixel arrangement RGB Vertical stripe colors
Display colors 16.7M
Display mode Normally Black
Color Gamut Typ. 56%, Min. 52% NTSC
Brightness Typ:300 , Min: 250 cd/m2
LED Q'ty 32 (4Serial 8Paralle)
Viewing angle (CR 10) Typ:80/80/80/80
Contrast Ratio Typ 1000:1,min 800:1
Driver IC JD9365DA-H3
Interface 3/4 Lane MIPI (Default 4 Lane)
Module Weight TBD g
Touch IC GT9271
Touch structure G+G




Outline Drawing
10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 0


Touchscreen Outline Drawing

10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 1



CTP Specification



Category Parameter Specification
General Structure Cover Glass + ITO Sensor Glass (G+G)
Cover Lens Strengthening Chemically Strengthened
Cover Lens Surface Hardness ≥6H (Pencil Hardness)
Light Transmission Rate ≥85%
Operation Temperature -10℃ ~ +60℃, ≤90% RH
Storage Temperature -20℃ ~ +70℃, ≤90% RH
Electrical Touch Point 10 Points
Interface I2C
Touch IC GT9271
Power Supply Voltage (VDD) 2.8V ~ 3.3V
Host Resistance (SDA/SCL) Configurable on Main-board
Environmental Operating Conditions Customizable
Surface Properties Surface Ink Clear type
Surface Treatment Customizable
LCD-TP Lamination AIR, OCA and OCR Bonding Optional
Compliance Material Standards RoHS & Halogen-Free Compliant





Interface Pin Description



Pin No. Symbol Function
1 NC No connect
2 VCC Power supply 3.3V
3 IOVCC Power supply 1.65~3.3V
4 GND Ground
5 RST(GRB) LCM Global reset(Reset :H= IOVCC)
6 NC No connect
7 GND Ground
8 D0- MIPI differential data input (Negative)
9 D0+ MIPI differential data input (Positive)
10 GND Ground
11 D1- MIPI differential data input (Negative)
12 D1+ MIPI differential data input (Positive)
13 GND Ground
14 CLK- MIPI differential clock input (Negative)
15 CLK+ MIPI differential clock input (Positive)
16 GND Ground
17 D2- MIPI differential data input (Negative)
18 D2+ MIPI differential data input (Positive)
19 GND Ground
20 D3- MIPI differential data input (Negative)
21 D3+ MIPI differential data input (Positive)
22 GND Ground
23-24 NC No connect
25 GND Ground
26-29 NC No connect
30 GND Ground
31 LEDK Backlight Cathode
32 LEDK Backlight Cathode
33-38 NC No connect
39 LEDA Backlight Anode
40 LEDA Backlight Anode





Absolute Maximum Ratings



Item Symbol Values Unit
    Min. Max.

Power Voltage

IOVCC -0.3 3.6 V
  VCC -0.3 6.0 V
  AVEE -- -- V
Input Signal Voltage VI -0.3 IOVCC V
Operation Temperature TOP -20 70
Storage Temperature TST -30 80





Backlight Characteristics



Characteristics Symbol Min. Type Max. Unit
LED Forward current IF -- 180 225 mA
LED Forward Voltage of every LED String VF-string 11.6 -- 13.6 Volt
LED life time

N/A

30000

40000

--

Hr



Optical Characteristics



Item Symbol Condition Values
      Min. Typ. Max.

Viewing angle

Θu

CR≧10

80 85 -
  ΘD   80 85 -
  ΘL   80 85 -
  ΘR   80 85 -
Response time TON+TOFF

θ=Φ =0 °

Normal

viewing angle

-

30 40
Contrast ratio CR   800 1000

-

Luminance L   280 300 -
Luminance uniformity YU   75 80 -

Color chromaticity

(CIE1931)

White

WX     0.320
    WY     0.346


Red

RX     0.644
    RY     0.329


Green

GX     0.328
    GY     0.565


Blue

BX     0.137
    BY
NTSC       57%





Product Photo

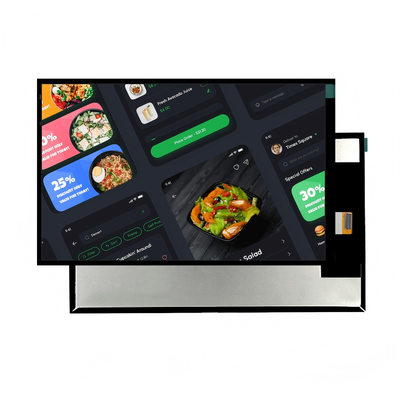

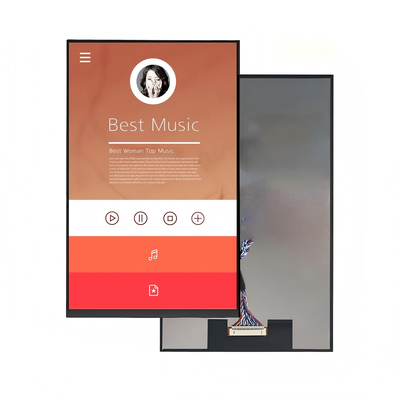

10.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 210.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 310.1-inch IPS LVDS TFT Display with PCAP Touch 800x1280 4



Contact Details
Shenzhen Saef Technology Ltd.

Contact Person: Cologne Ke

Tel: +8613502983321

Fax: 86-755-2370-9419

Send your inquiry directly to us (0 / 3000)
