Product Details:
|
Display Size: | 27-inch | Surface Luminance: | 1000 Cd/m² (Typical) |
---|---|---|---|
Resolution: | 3840×2160 (UHD) | Interface: | 4-Lane EDP 1.4 (5.4Gbps) |
Contrast Ratio: | 1000:1 (Typical) | Pin Number: | 30pins |
Viewing Angle: | 89° (CR>10, All Directions) | Mounting: | Vesa Mount Compatible |
Color Depth: | 1.07 B (8bit+A-FRC) | Color Gamut: | NTSC 90%, SRGB 98% (Typical) |
Power Supply: | 10V ±1V (Logic), 24V (Backlight) | Operating Temp.: | 0℃ To +50℃ |
Storage Temp.: | -20℃ To +60℃ | Backlight Lifetime: | 30,000 Hours (L70 @ 25°C) |
Response Time: | 14ms (GTG Typical) | Compliance: | RoHS, Halogen-Free, REACH |
Highlight: | Industrial TFT Display 4K,UHD Industrial TFT Display,High Brightness Industrial TFT Display |
SFTO2700B-7125AN – 27” UHD High Brightness Industrial TFT Display for Professional Applications in the EU & US Markets
The SFTO2700B-7125AN is a cutting-edge 27-inch ultra-high-definition (UHD 4K) industrial-grade TFT display designed for demanding environments in the United States and Europe. Engineered for engineers, system designers, and technical professionals, this display combines exceptional brightness (1000 cd/m²), low reflection, and industry-leading color accuracy to deliver optimal performance in industrial automation, medical imaging, outdoor kiosks, and professional AV systems.
4K UHD Resolution (3840 × 2160): Ensures crystal-clear visuals for data-intensive applications.
High Brightness & Contrast: 1000 cd/m² brightness and 1000:1 contrast ratio for visibility in direct sunlight and low-light conditions.
Advanced Color Reproduction: 10-bit color depth (8-bit + A-FRC) with NTSC 90% and sRGB 98% color gamut for precise color matching in design, simulation, and inspection workflows.
Low Reflection Coating: Minimizes glare for seamless operation in bright environments.
Wide Viewing Angles (178°): Maintains consistent image quality even at extreme angles.
Industrial-Grade Durability: Operates reliably in temperatures ranging from -20°C to +70°C.
Compliance with EU & US Standards: RoHS, REACH, CE, FCC, and IP65 front-panel certifications for global deployment.
Interface: eDP 4-channel (inversion type), 5.4 Gbps link rate for high-speed data transfer.
Pixel Structure: a-Si TFT active matrix with vertical RGB stripe pixel arrangement.
Backlight: Edge-lit LED for uniform illumination and energy efficiency.
Mounting: VESA-compatible (200 x 200 mm) for flexible integration into industrial enclosures.
Designed for Professional Use: Ideal for machine vision, control panels, and digital signage in harsh environments.
Global Compliance: Pre-certified for EU (CE, RoHS) and US (FCC) markets to streamline procurement.
Reliability & Longevity: Rigorously tested for 50,000+ hours of operation (typical).
Target Applications:
Industrial automation and HMI systems
Outdoor digital signage and kiosks
Medical imaging and diagnostic equipment
Automotive and aerospace control panels
Professional video walls and simulation systems
Ready to integrate the SFTO2700B-7125AN into your next project? Contact our engineering team for datasheets, CAD files, or sample requests. Our EU/US-based support ensures seamless compliance and technical guidance for your application.
Mechanical Dimensions
Parameter | Specification | Unit |
Active area | 596.736(H)×335.664(V) | mm |
Number of pixels | 3840(H)×2160(V) | pixels |
Pixel pitch | 0.1554(H)×0.1554(V) | mm |
Pixel arrangement | RGB Vertical stripe | |
Color Depth | 1.07 B(8bit+A-FRC) | colors |
Display mode | Normally Black | |
Dimensional outline | 630.0(H)×368.2(V)×20.98(Depth) | mm |
Weight | 3340(typical) | g |
Bezel width (L/R/U/D) | 13.71/13.71/13.74/13.74 | mm |
Surface Treatment | Haze 25%,3H | |
Back-light | Long side,2-LED Lighting Bar type |
Electrical Specifications
Parameter | Min. | Typ. | Max. | Unit | |
Power Supply Voltage | VDD | 9 | 10.0 | 11 | V |
Power Supply Current | DD | - | 460 | 900 | |
In-Rush Current | IRUSH | - | 2.0 | 3.0 | |
Permissible Input Ripple Voltage | VRF | - | - | 400 | |
High Level Differential Input Threshold Voltage |
VIH |
- |
- |
+100 | |
Low Level Differential Input Threshold Voltage |
VIL | -100 |
- |
mV | |
Differential input voltage | |VID | |
100 |
- | 600 | mV |
Differential input common mode voltage | Vcm |
0 |
2 | ||
Power Consumption |
PD | - | 4.6 | 9 | W |
55 | 58 | W | |||
Ptotal | - | 59.6 | - | W |
Backlight Unit Specifications
Parameter | Min. | Typ. | Max. | Unit | |
LED Light Bar Input Voltage Per Input Pin | VPIN | 33.6 | 37.2 | 39.6 | V |
LED Light Bar Input Current Per Input Pin |
IPIN |
- |
110 |
mA |
|
LED Power Consumption | PBL | - |
55 |
58 | W |
LED Life-Time |
- |
30,000 |
- |
Hrs |
LCD Module Optical Specifications
Parameter | Symbol | Condition | Min. | Typ | Max. | Unit | ||
Viewing Angle range |
Horizontal |
Θ3 |
|
85 |
89 | - | Deg. | |
Θ9 | 85 | 89 | - | Deg. | ||||
Vertical |
Θ12 | 85 | 89 | - | Deg. | |||
Θ6 | 85 | 89 | - | Deg. | ||||
Luminance Contrast ratio | CR |
Θ = 0. (Center) Normal Viewing Angle |
700 | 1000 | ||||
Luminance of White | 800 | 1000 | - | cd/m2 | ||||
White luminance uniformity | 80 | 85 | % | |||||
Reproduction of color |
|
|
0.283 | 0.313 | 0.343 | - | ||
Wy | 0.299 | 0.329 | 0.359 | - | ||||
|
Rx | 0.646 | 0.676 | 0.706 | - | |||
Ry | 0.269 | 0.299 | 0.329 | - | ||||
Green |
Gx | 0.197 | 0.227 | 0.257 | - | |||
Gy | 0.649 | 0.679 | 0.709 | - | ||||
Blue |
Bx | 0.123 | 0.153 | 0.183 | - | |||
By | 0.029 | 0.059 | 0.089 | - | ||||
Response Time |
GTG | Tg | 14 | 20 | ms | |||
Cross Talk | CT | - | - | 2.0 | % |
Pin Definition
Pin No | Symbol | Function |
1 | VDD | Power Supply (10.0V) |
2 | VDD | Power Supply (10.0V) |
3 | VDD | Power Supply (10.0V) |
4 | VDD | Power Supply (10.0V) |
5 | VDD | Power Supply (10.0V) |
6 | GND | Ground |
7 | GND | Ground |
8 | NC |
SCL PGMA |
9 | NC | SDA PGMA |
10 | GND | GND |
11 | HPD | Hot Plug Detection Signal |
12 | GND | Ground |
13 | DAUXN | Negative Signal for Auxiliary |
14 | DAUXP | Positive Signal for Auxiliary |
15 | GND | Ground |
16 | DRX0P 9 | Positive Signal For eDP Lane0 |
17 | DRX0N | Negative Signal For eDP Lane0 |
18 | GND | Ground |
19 | DRX1P | Positive Signal For eDP Lane1 |
20 |
DRX1N |
Negative Signal For eDP Lane1 |
21 |
GND | Ground |
22 | GRX2P | Positive Signal For eDP Lane2 |
23 | DRX2N | Negative Signal For eDP Lane2 |
24 | GND | Ground |
25 | DRX3P | Positive Signal For eDP Lane3 |
26 | DRX3N | Negative Signal For eDP Lane3 |
27 | GND | Ground |
28 | GND | Ground |
29 | NC | No connection |
30 | BIST | BIST Function |

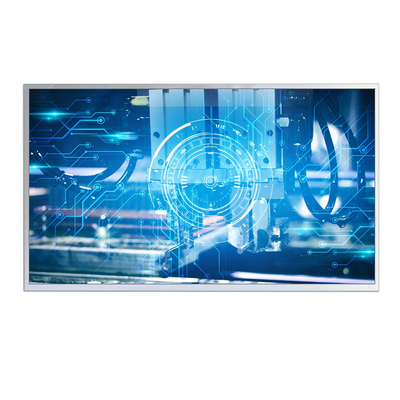

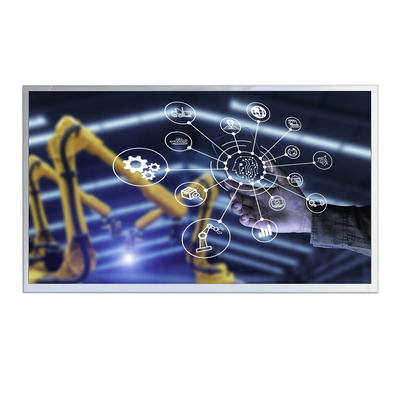

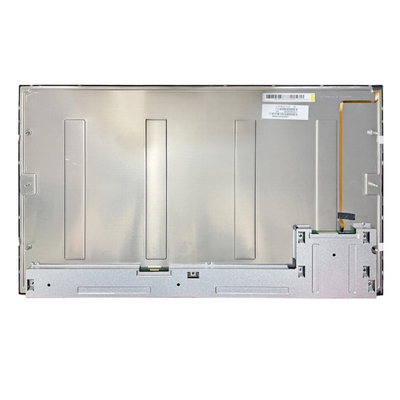

Product Image
