SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning

SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning
SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning

Large Image :  SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFBM2004HX-A-Y
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning

Description
Display Type: 20 Characters X 4 Lines STN LCD Voltage: 3.0V ±0.2V (Low Power Consumption)
Viewing Direction: 6 O’Clock Interfaces: 8-bit MPU Parallel
Driver IC: SPLC780D Or Equivalent (Industrial-Grade) Backlight: Yellow-Green LED (100 Cd/m² Typ.)
Operating Temp: -20°C To +70°C Dimension: 98(L) X 60(W) X 13.2(T)
Viewing Area: 77(L) * 25.2(W) Contrast Adjustment: VO Pin (Easy Tuning)
Duty/Bias: 1/16 Duty, 1/5 Bias ESD Protection: ±8kV Air / ±4kV Contact (Robust)
Reliability: MIL-STD-105E Tested (Industrial Durability) Compliance: ROHS, REACH, EU Directives
Highlight:

STN 20x4 Character LCD Module

,

Yellow/Green 20x4 LCD Module





Professional-Grade 20x4 LCD for Industrial & Embedded Systems


The SFBM2004HX-A-Y is a high-reliability 20×4 character LCD module engineered for demanding applications in automation, medical devices, and laboratory equipment. Operating at 3V with ultra-low power consumption (0.15mA typ.), it delivers exceptional performance across industrial temperature ranges (-20°C to +70°C).



Key Technical Advantages

  • SPLC780D Controller Compatibility:Seamless integration with industry-standard HD44780 protocols—accelerate development with existing code libraries and reference designs.
  • Superior Optical Performance:STN Yellow/Green transflective display with 6 o’clock viewing angle ensures clarity under ambient lighting. Backlight uniformity >75% (100 cd/m² typ.) eliminates hot spots.
  • Engineered for Harsh Environments:
  1. ESD Hardened: ±8kV air/±4kV contact discharge protection
  2. Validated per MIL-STD-105E (Major Defect AQL 0.4)
  3. Humidity resistant (20-90% RH non-condensing)

Technical Specifications Deep Dive

  • Timing Control: 270kHz oscillator, 450ns E-pulse width (Write Mode)
  • Memory Mapping: DDRAM addresses support 4-line wraparound (Hex: Line1=00-13, Line2=40-53)
  • Electrical Safety: VDD=2.8-3.5V, VLCD=VDD-12V to VDD-0.3V
  • Mechanical Precision: 0.56mm dot pitch, 98×60mm footprint with 13.2mm max. thickness



Compliance & Longevity

  • Full ROHS 2011/65/EU, REACH 1907/2006/EC compliance
  • 1-year warranty with >120hrs validation in thermal cycling (-30°C↔80°C) and vibration tests (10-55Hz XYZ axis)



For Design Engineers

Download pinout diagrams, timing waveforms (Page 9), and DDRAM mapping tables in the full datasheet. Compatible with ARM, PIC, and AVR MCUs.





Mechanical Dimensions

SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning 0



Specifications



Item Standard Value
Display Type 20characters ´ 4 lines
LCD Type STN(Y-G),POSITIVE,TRANSMISSIVE
Driver Condition LCD Module : 1/16Duty , 1/5Bias
Viewing Direction 6 O’clock
Backlight Type Yellow Green
Interface 8-bit MPU interface
Driver IC SPLC780D





Absolute Maximum Ratings



Item Symbol Condition Min. Max. Unit
System Power Supply Voltage VDD - -0.3 5.5 V
LCD Driver Supply Voltage VLCD - 4.0 5.0 V
Input Voltage VIN - -0.3 5.5 V
Operating Temperature TOP - -20 70 °C
Storage Temperature TST - -30 80 °C
Storage Humidity HD Ta < 40 °C 20 80 %RH





DC Electrical Characteristics



Item Symbol Condition Min. Typ. Max. Unit
Logic Supply Voltage VDD - 2.8 3.0 3.5 V
Input High Voltage VIH - 2.2 - 5.0 V
Input Low Voltage VIL - 0 - 0.6 V
Output High Voltage VOH - 2.4 - 5.0 V
Output Low Voltage VOL - 0 - 0.4 V




Backlight Characteristics



Item Symbol Conditions Min. Typ. Max. Unit
Forward Voltage Vf If=30mA 2.9 3.0 3.1 V
Reverse Current Ir If=5v     5 uA
Average Brightness IV If=30mA 100     cd/m2
Uniformity Δ% IVMin / IVMax *100% 75 - - %
Color Y-G

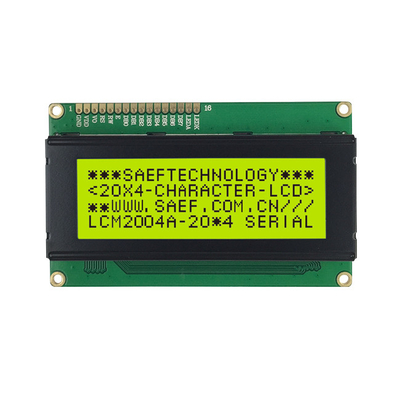

Product Image

SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning 1

SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning 2

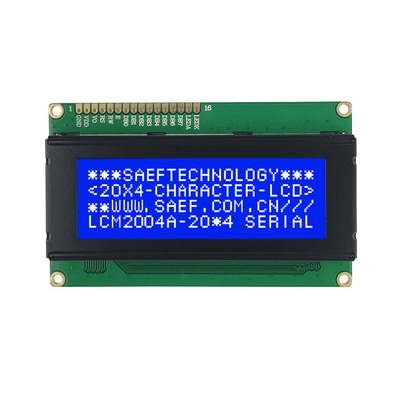

STN Blue Mode Optional

SFBM2004HX-A-Y 20x4 Character LCD Display Module 3V STN Yellow/Green SPLC780D Compatible Contrast Adjustment VO Pin Easy Tuning 3
