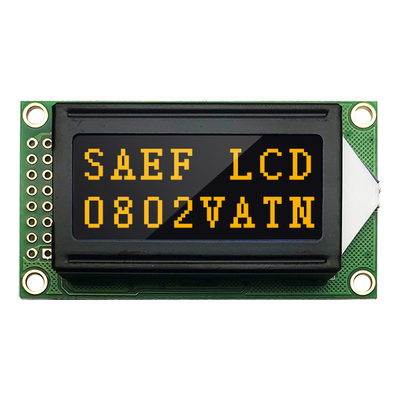

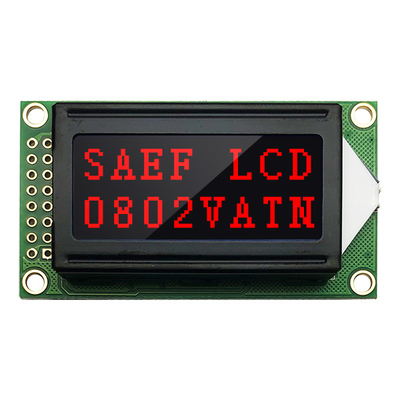

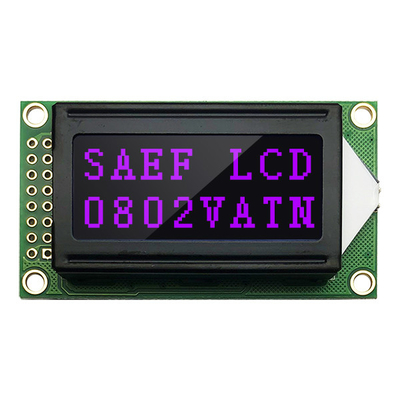

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display
VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display

Large Image :  VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF0802YB01VA
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD1.xx Reference price, Price is negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month
Contact Now

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display

Description
Product: VATN 8x2 Character LCD Module Characters / Columns: 8 Characters X 2 Lines
LCD Type: VATN, Negative, Transmissive Backlight Color: White, Blue, Yellow, Red, Green, Purple And Amber
Operating Voltage: 5V, 3V Optional Optics: All Viewing Angles
Outline Dim.: 58.0(L) X 32.0(W) X 13.2(T) Mm Viewing Area: 38.0(L) X 16.0(W) Mm
Driving Method: 1/16 Duty, 1/5 Bias Operating Temp: -20°C To +70°C ( Customizable )
Pin Number: 16 Pins ( Customizable ) Controller: SPLC780D Or Equivalent
Interface: 6800, MPC, I2C Optional Compliance: REACH & RoHS Compliant
Highlight:

VATN 8x2 Character LCD Module

,

Alphanumeric 8x2 Character LCD Module

,

5×8 Dots lcd display 8x2

8x2 VATN Characters Monochrome LCD Display Module 5×8 dots includes cursor alphanumeric display



VATN Alphanumeric LCD Display 8x2, Display LCD 8x2 Description





This is a 8 character by 2 line LCD display with a black background and red led backlight. This model VATN LCD is with outline dimension of 58 x 32 mm. We provide 6800, SPI and I2C interface to meet customer's different requirement.
The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it's very suitable for many applications. Below are the examples for reference.



-  Industrial: Automotive application, Digital meter, UPS
-  Medical: medical device & medical equipment
-  Home appliance: audio, coffee machine, microwave oven
-  Automobile: dashboard, car audio





Pin Definition:

1  VSS,  (0V)   Power ground

2  VDD, (5V)   Power Supply For Logic

3  V0,              Contrast adjust

4  RS,   (H/L)  H: Data  L: Command

5  R/W, (H/L)  R: Read  W: Write

6  E,     (H,H->L)   Enable Signal

7~14   DB0--DB7,   (H/L)  Databus

15  LED A,  5.0V  Power supply for LED backlight

16  LED K,  0V Power supply for LED backlight







Product: VATN 8x2 Character LCD Module Characters / Columns: 8 Characters X 2 Lines
LCD Type:



VATN, Negative, Transmissive

 Backlight Color:

White, Blue, Yellow, Red,

Green, Purple And Amber
Operating Voltage: 5V, 3V Optional Optics: All Viewing Angles
Outline Dim.: 58.0(L) X 32.0(W) X 13.2(T) mm Viewing Area: 38.0(L) X 16.0(W) mm
Driving Method: 1/16 Duty, 1/5 Bias Operating Temp: -20°C To +70°C
Pin Number: 16 Pins ( Customizable ) Controller: SPLC780D Or Equivalent
Interface: 6800, MPC, I2C Optional Compliance: REACH & RoHS Compliant







The features of VATN display LCD are in high contrast, wide viewing angle, high brightness. VA Display can replace Black Mask and DFSTN ( Double Film Conpensative STN ). It is suitable for Security control, White goods, Audio, Medical devices, POS, Dash board applications. VATN Display is an alternative for traditional lcd alphanumeric display. SAEF’s VATN display, alphanumeric LCD display module are available in 8x2 LCD,16x1 LCD,16x2 LCD,16x4 LCD,20x2 LCD,20x4 LCD with backlight options in white, blue, yellow, red, green, purple and amber color.









VATN Alphanumeric LCD Display 8x2, Display LCD 8x2 Drawing





VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 0

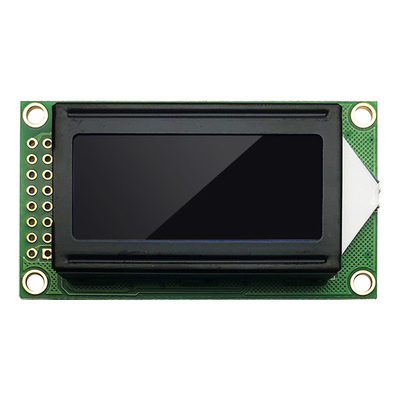

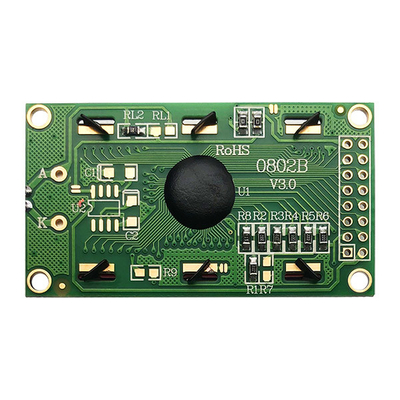

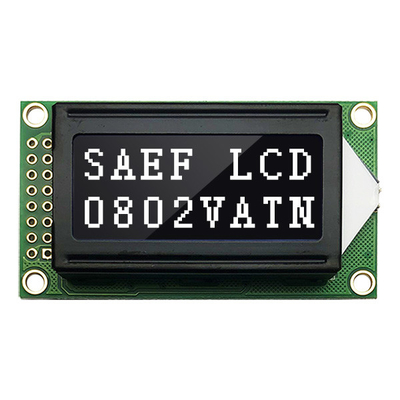

VATN Alphanumeric LCD Display 8x2, Display LCD 8x2 Real Product Image



VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 1VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 2

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 3VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 4VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 5VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 6VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 7VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 8















FACTORY AND FACILITIES

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 9

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 10

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 11VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 12

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 13VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 14VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 15

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 16VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 17

VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 18VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 19VATN 8x2 Character LCD Module Display 5×8 dots with cursor alphanumeric display 20
