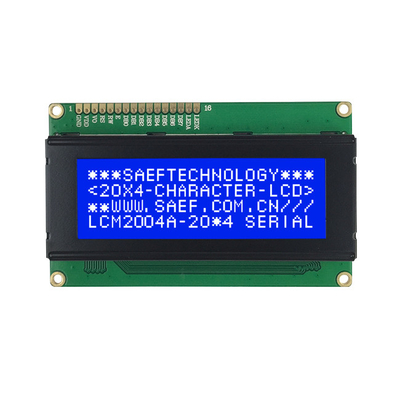

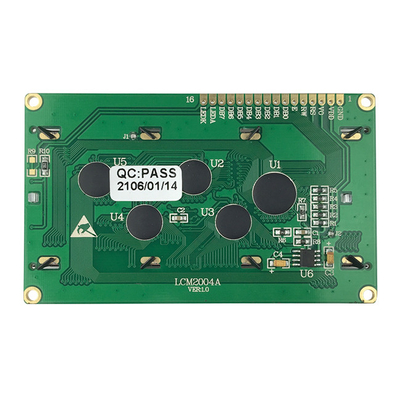

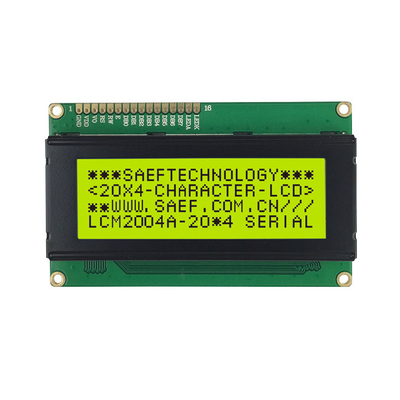

20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant

20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant
20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant 20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant 20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant

Large Image :  20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFBM2004HX-A-Y(3.3V)
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: The lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: PayPal, T/T
Supply Ability: 3000K pcs per month

20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant

Description
Display Type: Character LCD Format: 20 Characters X 4 Lines
Technology: STN Positive Transmissive Display Color: Yellow/Green
Viewing Direction: 6 O'clock Backlight: White LED (Side-lit)
Interface: 8-bit Parallel (HD44780 Compatible) Driver IC: SPLC780D
Logic Voltage: 3.3V Operating Temp: -20°C To +70°C
Life Time: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

20x4 Character LCD display

,

STN Character LCD Display Module

,

Character LCD Display Module



Industrial 20×4 Character LCD Module for HMI & Control Systems



Saef Technology's rugged display delivers crisp Yellow/Green text in harsh environments, engineered for German and American industrial automation with 3.3V compatibility.



Key Advantages for Engineers:

HD44780-Compatible Design

  • Plug-and-play replacement for legacy systems | 8-bit parallel interface | SPLC780D controller

​​Industrial-Grade Reliability

  • -20°C cold start capability (tested @ -20°C for 120hrs)
  • ESD protection: ±8kV air / ±4kV contact discharge
  • Vibration resistant (10-55Hz, 1.5mm amplitude)

Optimized Power Efficiency

  • Single 3.3V supply for logic and backlight
  • Low consumption: 0.8mA max (logic) + 40mA (LED)
  • VO pin for contrast adjustment



Technical Specifications:

Character Size: 4.76×2.96 mm

View Area: 77×25.2 mm

Dimensions: 98×60×13.2 mm

Duty/Bias: 1/16 Duty, 1/5 Bias



Applications:

Factory Automation (Industrie 4.0)

CNC Machine Controls | Medical Devices

Laboratory Equipment | HVAC Systems

Retail POS Terminals | Embedded Controllers



Compliance & Warranty:

RoHS/REACH compliant | ISO 9001/14001 certified

1-year warranty | MIL-STD-105E inspection standard




Mechanical Dimensions

20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant 0





Specifications



Item Standard Value
Display Type 20characters× 4lines
LCD Type STN ,Positive, Yellow/Green, Transmissive
Driver Condition LCD Module : 1/16Duty , 1/5Bias
Viewing Direction 6 O’clock
Backlight Type SIDE WHIET
Interface 8-bit MPU interface
Driver IC SPLC780D





Mechanical Specifications



Item Standard Value Unit
Outline Dimension 98(L) * 60(W) * Max 13.2(T) mm
Viewing Area 77(L) * 25.2( W) mm
Dot size 0.56(W) × 0.56(H) mm
Dot pitch 0.6(W) × 0.6 (H) mm
Character size 4.76(W) × 2.96(H) mm





Absolute Maximum Ratings



Item Symbol Condition Min. Max. Unit
System Power Supply Voltage VDD - -0.3 3.5 V
LCD Driver Supply Voltage VLCD - VDD-12 VDD-0.3 V
Input Voltage VIN - -0.3 VDD + 0.3 V
Operating Temperature TOP - -20 70 °C
Storage Temperature TST - -30 80 °C
Storage Humidity HD Ta < 40 °C 20 90 %RH





DC Electrical Characteristics



Item Symbol Condition Min. Typ. Max. Unit
Logic Supply Voltage VDD - - 3.3 - V
Input High Voltage VIH - 0.8VDD - VDD V
Input Low Voltage VIL - GND - 0.3VDD V
Output High Voltage VOH - 0.7VDD - VDD V
Output Low Voltage VOL - GND - 0.2VDD V





Product Images

20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant 1

20x4 Character LCD Display Module Yellow/Green STN 3.3V Logic Backlight -20°C-70°C Viewing Direction 6 o'clock Compliance REACH RoHS Compliant 2
