Product Details:
|
Screen Size: | 23.8-inch Diagonal | Resolution: | 1920×1080 Pixels (RGB Stripe) |
---|---|---|---|
Brightness: | 350 Cd/m² | Interface: | LVDS (2-Port, 8-bit) |
Color Gamut: | 72% NTSC | Color Depth: | 16.7 Million Colors (6-bit Hi-FRC) |
Viewing Angles: | Wide Viewing Angle (Low Reflection) | Storage Temp.: | 0°C To +50°C |
Operating Temp.: | -20°C To +60°C | Power Supply: | 5V DC (4.5V–5.5V) |
Touch Technology: | Capacitive Touch Panel | Backlight Lifetime: | 50,000 Hours (LED, @25°C) |
Surface Hardness: | ≥6H (Anti-Glare, Haze 10%) | Contrast Ratio: | 800:1 (Typical) |
IC Options: | EETI, EXC3189 | Environmental Robustness: | Functional In Fog/Surface Water |
Compliance: | RoHS, REACH, Halogen-Free, ISO 9001/14001 (EU/US Certified) | ||
Highlight: | EU/US Certified Industrial LCD Display,350 cd/m2 Industrial LCD Display,23.8 Industrial TFT LCD Display |
Ultra-Reliable 23.8" FHD TFT LCD for Demanding EU/US Applications
The SFTO2380HY-7253ACT is a high-performance 23.8-inch TFT LCD module engineered for industrial and commercial use across North America and Europe. Featuring Full HD resolution (1920×1080), LVDS interface, and extended operating temperature range (0°C to +50°C), this display delivers exceptional clarity and reliability in harsh environments like factories, medical facilities, and outdoor kiosks. Certified to RoHS, REACH, and ISO standards, it meets stringent EU/US regulatory requirements.
Industrial-Grade Durability: Anti-glare hard coating (6H surface) withstands scratches, chemicals, and moisture.
High-Speed LVDS Interface: Dual-port LVDS (2x8-bit) ensures seamless data transmission for real-time control systems.
50,000-Hour LED Backlight: Energy-efficient design with PWM dimming support, reducing power consumption by 30% vs. CCFL.

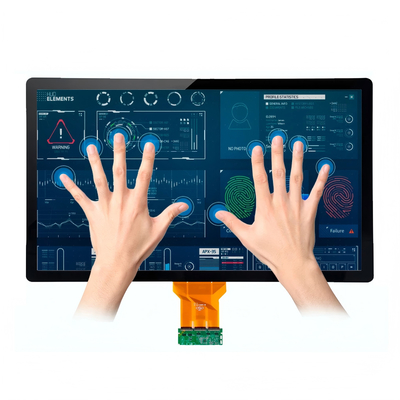

Capacitive Touch Ready: Optional EXC3189 touch IC supports glove/wet-surface operation (I²C/USB interface).
Wide Temperature Operation: Reliable performance from freezing conditions (0°C) to high-heat industrial settings (+50°C).
Optical Performance: 300 cd/m² brightness, 16.7M colors, and low-reflection technology for sunlight readability.
Robust Construction: Slim 8.2mm profile, vibration/drop tested (60cm height), and ESD protected (±15kV air/±8kV contact discharge).
Easy Integration: 5V DC power input, I²C-adjustable VCOM, and plug-and-play LVDS connector (Starconn 300B30-0000RA-M4).
Certified Reliability: 120-hour thermal cycling (-10°C↔+60°C), humidity testing (90% RH), and halogen-free materials.
Industrial Control Panels (Automation, Robotics)
Medical Diagnostic Equipment
Digital Signage & Public Information Displays

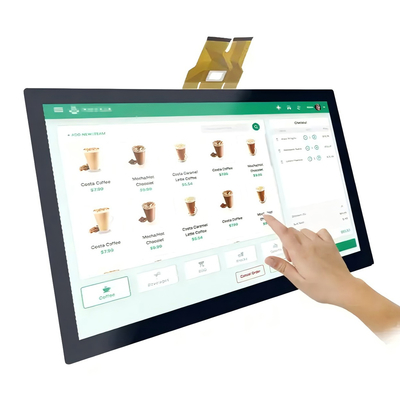

POS/Retail Terminals
Transportation Infotainment Systems
Manufactured by Saef Technology (Shenzhen), the SFTO2380HY-7253ACT combines military-grade resilience with cutting-edge display technology. Its LVDS interface simplifies integration with Raspberry Pi, NVIDIA Jetson, and industrial PCs, while RoHS/REACH compliance eliminates import barriers to Germany, France, UK, and the USA. Backed by a 1-year warranty, this module is optimized for 24/7 operation in Europe’s strict EMC and North America’s FCC-regulated environments.
External Dimensions
Specification
Parameter | Specification | Unit |
Active area | 527.04(H) × 296.46(V) | MM |
Number ofpixels | 1920(H) ×1080(V) | pixels |
Pixel pitch | 0.2745*0.2745 | MM |
Pixel arrangement | RGB Vertical stripe | |
BLU Brightness | 350 | Cd/㎡ |
Display colors | 16.7M | colors |
Display mode | Transmissive Mode, Normally Black | |
Dimensional outline |
543(H) × 317.4(V) × 8.2(D) typ. |
mm |
Surface Treatment | Anti-Glare ,Hardcoating(3H) | |
Back-light | 1-LED Lighting Bar type | Pcs |
Interface Pin Definition
Pin | Symbol | Description |
1 | RO(0)N | Odd LVDS Signal- |
2 | RO(0)P | Odd LVDS Signal+ |
3 | RO(1)N | Odd LVDS Signal- |
4 | RO(1)P | Odd LVDS Signal+ |
5 | RO(2)N | Odd LVDS Signal- |
6 | RO(2)P | Odd LVDS Signal+ |
7 | GND | Ground |
8 | ROCLK- | Odd LVDS Clock- |
9 | ROCLK+ | Odd LVDS Clock + |
10 | RO(3)N | Odd LVDS Signal- |
11 | RO(3)P | Odd LVDS Signal+ |
12 | RE(0)N | Even LVDS Signal- |
13 | RE(0)P | Even LVDS Signal+ |
14 | GND | Ground |
15 | RE(1)N | Even LVDS Signal- |
16 | RE(1)P | Even LVDS Signal+ |
17 | GND | Ground |
18 | RE(2)N | Even LVDS Signal- |
19 | RE(2)P | Even LVDS Signal+ |
20 | RECLK- | Even LVDS Clock- |
21 | RECLK+ | Even LVDS Clock + |
22 | RE(3)N | Even LVDS Clock- |
23 | RE(3)P | Even LVDS Clock + |
24 | GND | Ground |
25 | WP | Write Protect (High: Write Enable, Low or Open: Write Disable ) |
26 | SCL | I2C Serial Clock (for adjust VCOM) |
27 | SDA | I2C Serial Clock (for adjust VCOM) |
28 | 5V | DC power supply |
29 | 5V | DC power supply |
30 | 5V | DC power supply |
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Max. |
Unit |
Power Supply Voltage |
V DD |
-0.3 |
6 |
V |
Logic Supply Voltage |
V IN |
VSS-0.3 |
V DD +0.3 |
V |
Operating Temperature |
T OP |
0 |
50 |
℃ |
Storage Temperature |
T ST |
-20 |
60 |
℃ |
Backlight Characteristics
Parameter |
Min. |
Typ. |
Max. |
Unit |
|
LED Light Bar Input Voltage Per Input Pin |
VPIN |
- |
55.2 |
- |
V |
LED Light Bar Input Current Per Input Pin |
IPIN |
- |
60 |
- |
MA |
LED Power Consumption |
P BL |
- |
13.2 |
- |
W |
BLU Brightncs |
- |
300 |
350 |
- |
Cd/㎡ |
LED Life-Time |
|
|
50000 |
|
Hrs |
CTP Specification
Category |
Parameter |
Specification |
General |
Structure |
Cover Glass + ITO Sensor Glass |
|
Cover Lens Strengthening |
Physically Strengthened |
|
Cover Lens Surface Hardness |
≥6H (Pencil Hardness) |
|
Light Transmission Rate |
≥85% |
|
Operation Temperature |
-10℃ ~ +60℃, ≤85% RH |
|
Storage Temperature |
-20℃ ~ +70℃, ≤85% RH |
Electrical |
Interface |
IIC / USB Optional |
|
Touch IC |
EXC3189 |
|
Power Supply Voltage (VDD) |
IIC:3.3V USB:5V |
|
Host Resistance (SDA/SCL) |
Configurable on Main-board |
Environmental |
Operating Conditions |
Functional in fog/ surface water/Glove |
Surface Properties |
Surface Ink |
Anti-UV |
|
Surface Treatment |
Anti-Glare (Haze: 3%) |
|
LCD-TP Lamination |
OCR (Optically Clear Resin) |
Compliance |
Material Standards |
RoHS & Halogen-Free Compliant |

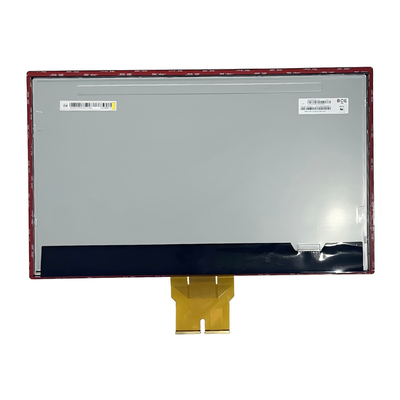

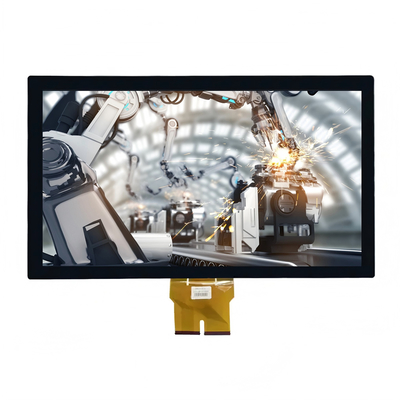

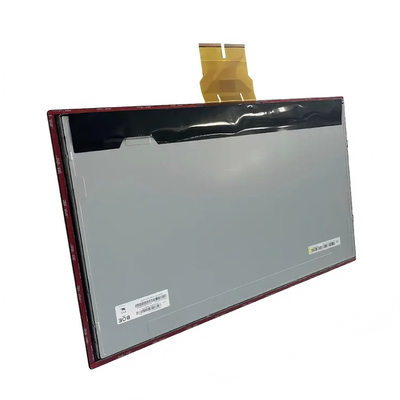

Product Image
