Product Details:
|
Product: | 5.7 Inch TFT LCD Display | Resolution: | 640x480 VGA |
---|---|---|---|
Brightness: | 500 Cd/m² (Typical) | Viewing Direction: | 80° (All Directions, CR≥10) |
Contrast Ratio: | 1200:1 | Interface: | 6-bit RGB (40-pin) |
Operating Temp.: | -30°C To +80°C | Customization: | Glass/Sensor/FPC Tailoring |
Driver IC: | JD9168S | LED Lifetime: | 30,000 Hours |
Touch: | Projected Capacitive (PCAP) | Compliance: | Rohs & Reach Compliant |
Highlight: | PCAP Touch Industrial TFT LCD,JD9168S Industrial TFT LCD,640x480 Industrial TFT LCD |
Rugged 5.7" TFT LCD Display 500Nits with PCAP Touch - Industrial Grade Wide Temperature
Saef Technology's SFTO570DX-7263AN delivers exceptional performance in extreme environments. With 500 nits brightness, -30°C to +80°C operational range, and 80° all-direction viewing angles, this 5.7-inch VGA TFT is engineered for industrial HMI, medical devices, and automotive dashboards across Europe and North America.
✅ Extreme Environment Ready: Operates in Arctic cold to desert heat (-30°C~80°C) with 120hrs thermal shock certification.
✅ Industrial Durability: 3H hardened surface withstands scratches + random vibration resistance (0.015G²/Hz, 5-500Hz).
✅ Optimized Power: Only 1.5W backlight consumption + PWM dimming control (1-50kHz).
✅ High Visual Clarity: 1200:1 contrast ratio + 60% NTSC color gamut.
Seamless Touch Integration
Upgrade your solution with our Projected Capacitive (PCAP) touch customization:
Glass Options: Gorilla Glass®/Tempered Glass/PMMA with AG/AR/AF coatings.
Sensor Flexibility: Glass/Film/Film+Film stacks + custom FPC shapes.
Controller Compatibility: EETI, ILITEK, Cypress, Goodix (I²C/USB/RS232 interfaces).
Rapid Prototyping: 4-week sample lead time for display+touch combos.
Ideal for: Medical sterilizable interfaces, automotive dashboards, factory automation controls.
Product Specification
Item | Specification | Unit |
LCD Type | TFT | - |
Display color | 16.7M | - |
Viewing Direction | IPS, All viewing angles | O’Clock |
Operating temperature | -30~+80 | ℃ |
Storage temperature | -30~+80 | ℃ |
Module size | Refer to outline drawing | mm |
Active Area(W × H) | 115.20X86.40 | mm |
Number of Dots | 640 x 480 | dots |
LCM Controller | JD9168S | - |
Power Supply Voltage | 3.3 | V |
Backlight | 3S7P-LEDs (white) | pcs |
Interface | RGB Interface | - |
External Dimensions
Asolute Maximum Ratings
Item | Symbol | Min. | Max. | Unit |
Supply Voltage Voltage | VCC | -0.3 | 3.3 | V |
Backlight Supply Voltage | VLED | -0.3 | 6.0 | V |
Operating temperature | Top | -30 | 80 | ℃ |
Storage temperature | Tst | -30 | 80 | ℃ |
Backlight Characteristics
Item | Symbol | Typical Value | |
Supply voltage | VLED | 5V | |
Supply Current | IL | 300 - mA | |
Power Consumption | PL | 1.5 - W | |
PWM Control Frequency | FPDIM | 50K Hz | |
Backlight ON-OFF | High |
VEN |
1.4 VLED V |
Low | 0 - 0.4 V | ||
PWM Control Level | High |
VPDIM |
1.5 V |
Low | 0 - 0.4 V | ||
Uniformity | ΔBp | 80% | |
Life Time | time | 40K hours |
Interface Pin Definition
Pin No. | Symbol | I/O | Definition |
1 | U/D | I | Up/down scan direction on panel module. |
2 | NC | - | No Connection. |
3 | HSYNC | I | Horizontal sync input in RGB interface. |
4-6 | VLED | P | Power supply for LED driver. |
7 | VCC | P | Power supply for TFT. |
8 | VSYNC | I | Vertical sync input in RGB interface. |
9 | DE | I | Data enable input in RGB interface. |
10 | XL | I | No Connection. |
11 | YU | I | No Connection. |
12 | ADJ | I | PWM signal input pin. |
13-15 | B5-B3 | I | Blue data bus. |
16 | VSS | P | Ground. |
17-19 | B2-B0 | I | Blue data bus. |
20 | VSS | P | Ground. |
21-23 | G5-G3 | I | Green data bus. |
24 | VSS | P | Ground. |
25-27 | G2-G0 | I | Green data bus. |
28 | VSS | P | Ground. |
29-31 | R5-R3 | I | Red data bus. |
32 | VSS | P | Ground. |
33-35 | R2-R0 | I | Red data bus. |
36 | XR | I | No Connection. |
37 | YD | I | No Connection. |
38 | DCLK | I | Pixel clock input in RGB interface. |
39 | VSS | P | Ground. |
40 | L/R | I | Left/right scan direction on panel module. |

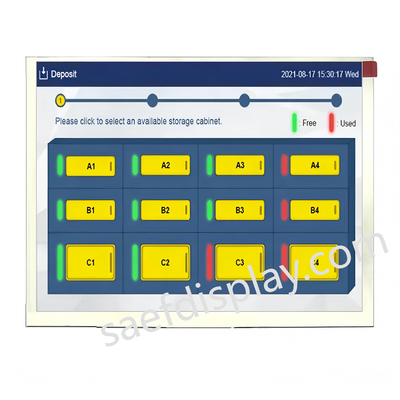

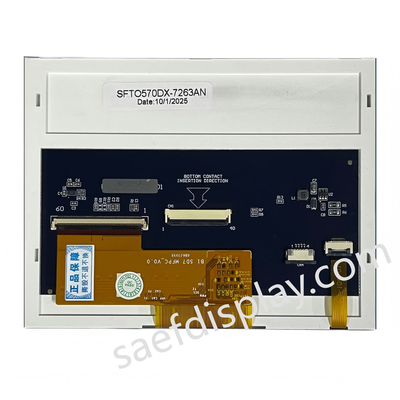

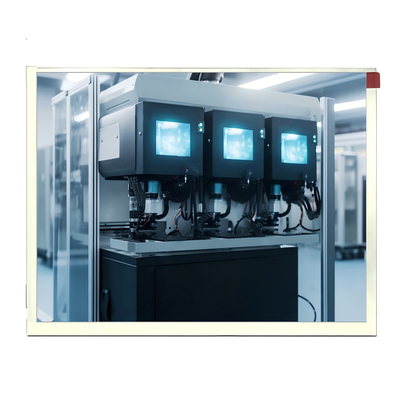

Product Image
