Product Details:
|
Model Number: | SFTO2700RX-7322AN | Screen Size: | 27-inch Diagonal |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 1000 Cd/m² |
Storage Temp.: | -20°C To +60°C | Operating Temp.: | 0°C To +50°C |
Contrast Ratio: | 1000:1 (Typ.) | Interface: | Dual-Channel LVDS (2 Pixel/Clock) |
Response Time: | 14ms (on/off, Typ.) | Backlight: | 50,000 Hours |
Surface Treatment: | AG/AR/AF Coatings (Selectable) | Touch Technology: | PCAP(CTP) Optional |
Cover Glass: | Gorilla Glass/Tempered Glass/PMMA (Custom) | Touch Points: | 10-Point Multi-Touch |
Touch Interface: | I²C/USB/RS232 (Configurable) | IC Options: | EETI, ILITEK, Cypress, Goodix |
Customization: | Silk Printing, Logo, Cut-outs | Compliance: | REACH & RoHS Compliant |
Highlight: | RGB Stripe Resolution TFT LCD Display,Sunlight Readable TFT LCD Display,27” TFT LCD Display |
1000Nit Sunlight-Readable 27" TFT LCD - Customizable Industrial Display Solution
Saef Technology's SFTO2700SM-7322AN is a high-brightness 27-inch TFT LCD engineered for challenging environments. With 1000 nits peak luminance, anti-glare 3H hardened surface, and 178° wide viewing angles, it delivers exceptional visibility in direct sunlight – ideal for outdoor kiosks, industrial HMIs, and medical equipment across Europe and North America.
✅ Ultra-HD Clarity: 1920x1080 FHD resolution with 16.7M colors ensures crisp imaging.
✅ Rugged Reliability: Operates in -20°C~60°C extremes (storage) and withstands thermal shock (24 cycles tested).
✅ Power-Efficient: Only 5.3W max consumption despite 1000nit output.
✅ Longevity: 50,000-hour LED backlight (50% brightness retention).
Tailored to Your Needs
We provide end-to-end customization for OEM/ODM partners:
Panel Modifications: Resize displays (non-standard dimensions supported).
Interface Flexibility: LVDS, eDP, HDMI conversions.
Firmware Integration: Custom OSD, gamma adjustment, power sequencing.
Rapid Prototyping: 4-week lead time for samples.
Ideal for specialized applications: Aviation displays, military vehicles, high-luminance medical monitors.
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
Items | Unit | Specification |
Screen Diagonal | mm | 27.0” |
Active area | mm | 597.888(H) x 336.312(V) |
Pixels H x V | - | 1920(x3) x 1080 |
Pixels Pitch | um | 31.14(per one triad) x31.14 |
Pixel Arrangement | - | R.G.B. Vertical Stripe |
Display Mode | - | Normally Black |
Response Time | Msec | 14ms (typ., on/off) |
Weight | Grams | TBD |
Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
Support Color | - | 16.7M colors |
Surface Treatment | - | Anti-Glare,3H |
Operating Temperature | ℃ |
0 to +50 |
Storage Temperature | ℃ | -20 to +60 |
External Dimensions
Interface Pin Definition
Pin No. | Symbol | Description |
1 | RxO0- | Negative LVDS differential data input (Odd data) |
2 | RxO0+ | Positive LVDS differential data input (Odd data) |
3 | RxO1- | Negative LVDS differential data input (Odd data) |
4 | RxO1+ | Positive LVDS differential data input (Odd data) |
5 | RxO2- | Negative LVDS differential data input (Odd data) |
6 | RxO2+ | Positive LVDS differential data input (Odd data) |
7 | BIST | BIST |
8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
10 | RxO3- | Negative LVDS differential data input (Odd data) |
11 | RxO3+ | Positive LVDS differential data input (Odd data) |
12 | RxE0- | Negative LVDS differential data input (Even data) |
13 | RxE0+ | Positive LVDS differential data input (Even data) |
14 | GND | Ground |
15 | RxE1- | Negative LVDS differential data input (Even data) |
16 | RxE1+ | Positive LVDS differential data input (Even data) |
17 | GND | Ground |
18 | RxE2- | Negative LVDS differential data input (Even data) |
19 | RxE2+ | Positive LVDS differential data input (Even data) |
20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
22 | RxE3- | Negative LVDS differential data input (Even data) |
23 | RxE3+ | Positive LVDS differential data input (Even data) |
24 | GND | Ground |
25 | CTL | CTL_DVR |
26 | CE | CE_DVR |
27 | NC | No connection |
28 | VDD | Power Supply Input Voltage 5V |
29 | VDD | Power Supply Input Voltage 5V |
30 | VDD | Power Supply Input Voltage 5V |
Optical Characteristics
Paramete | Conditions | Min. | Typ. | Max. | Unit | |
Viewing Angle (CR>10) |
Horizontal | θL | 89 | - |
degree |
|
θR | 89 | - | ||||
Vertical | θT | 89 | - | |||
θB | 89 | - | ||||
Contrast Ratio | Center | 700 | 1000 | - | - | |
Response Time | Tr+Td | - | 14 | 20 | ms | |
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0.646 |
Typ. +0.03 |
- | |
Red y | 0.341 | - | ||||
Green x | 0.327 | - | ||||
Green y | 0.612 | - | ||||
Blue x | 0.143 | - | ||||
Blue y | 0.041 | - | ||||
White x | 0.283 | - | ||||
White y | 0.289 | - | ||||
Center Luminance of white | YLI | 800 | 1000 | cd/m2 |

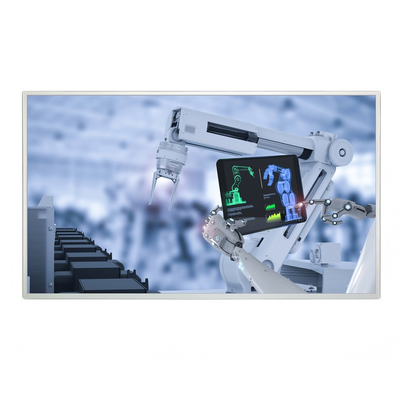

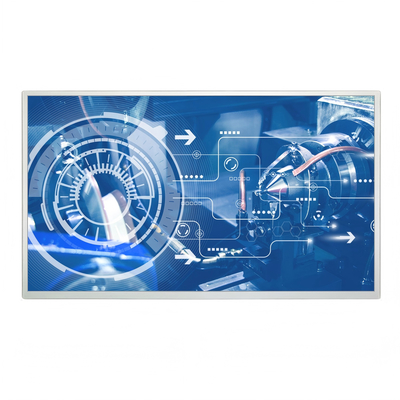

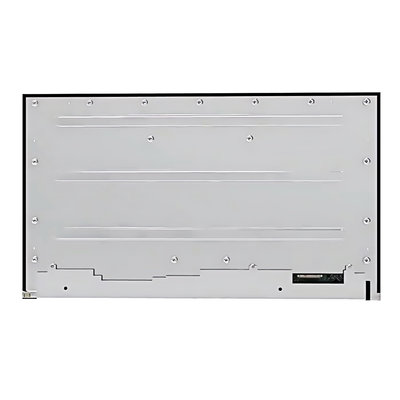

Product Image
