Product Details:
|
Model Number: | SFTO2700SM-7317AN | Screen Size: | 27-inch Diagonal |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 350 Cd/m² |
Operating Temp.: | 0°C To +50°C | Contrast Ratio: | 1000:1 (Typ.) |
Interface: | Dual-Channel LVDS (2 Pixel/Clock) | Response Time: | 14ms (on/off, Typ.) |
Backlight: | 30,000 Hours | Surface Treatment: | Anti-Glare, 3H Hardness |
Power Input: | 5V±10% (Max 5.5V) | Compliance: | REACH & RoHS Compliant |
Highlight: | 350 cd/m2 Industrial TFT LCD,Dual LVDS Industrial TFT LCD,27" Industrial TFT LCD |
Industrietaugliches 27-Zoll Display für Kontrollräume
Der SFTO2700SM-7317AN kombiniert Full-HD-Auflösung mit Industrierobustheit für Leitstände, Medizintechnik und Automatisierungssysteme. Mit 350 cd/m² Helligkeit und 89° Blickwinkel bietet er klare Visualisierung auch unter anspruchsvollen Lichtbedingungen.
Schlüsselvorteile für Ingenieure
✅ Industrielle Zuverlässigkeit
Betrieb bei 0°C bis 50°C (Lagerung -20°C~60°C)
Dual-LVDS-Schnittstelle mit 74.25MHz Taktfrequenz
3H kratzfeste Anti-Reflex-Oberfläche
✅ Optische Excellence
1000:1 Kontrastverhältnis für scharfe Graustufendarstellung
14ms Reaktionszeit (Schwarz-Weiß-Übergang)
Farbkoordinaten nach CIE1931 (Weißpunkt x=0.283/y=0.289)
✅ Einfache Integration
Verriegelbarer JAE FI-X30HL-Stecker
DE-only Timing Mode (kein HSYNC/VSYNC benötigt)
VESA-kompatible Befestigungspunkte
Zertifizierte Robustheit
72h Hochtemperaturtest @60°C
24 Zyklen Thermischer Schock (-20°C↔60°C)
ESD-Schutz: ±8kV (Kontakt) nach IEC 61000-4-2
Prozessleittechnik: SCADA-Systeme, Leitwartendisplays
Medizingeräte: OP-Monitore, Diagnosekonsolen
Laborautomation: Mikroskopiemonitore, Analysegeräte
Digital Signage: Industrietaugliche Infotainment-Systeme
ISO-Zertifikate: 9001:2015 (Qualität), 14001:2015 (Umwelt)
EMV: EN 55032:2015 Konform
Garantie: 2 Jahre auf Funktionsdefekte
Lieferumfang: ESD-Schutzverpackung, Montagezeichnungen (DXF)
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
Items | Unit | Specification |
Screen Diagonal | mm | 27.0” |
Active area | mm | 597.888(H) x 336.312(V) |
Pixels H x V | - | 1920(x3) x 1080 |
Pixels Pitch | um | 31.14(per one triad) x31.14 |
Pixel Arrangement | - | R.G.B. Vertical Stripe |
Display Mode | - | Normally Black |
Response Time | Msec | 14ms (typ., on/off) |
Weight | Grams | TBD |
Electrical Interface | - | Dual channel LVDS,8 bits RGB data input |
Support Color | - | 16.7M colors |
Surface Treatment | - | Anti-Glare,3H |
Operating Temperature | ℃ |
0 to +50 |
Storage Temperature | ℃ | -20 to +60 |
External Dimensions
Interface Pin Definition
Pin No. | Symbol | Description |
1 | RxO0- | Negative LVDS differential data input (Odd data) |
2 | RxO0+ | Positive LVDS differential data input (Odd data) |
3 | RxO1- | Negative LVDS differential data input (Odd data) |
4 | RxO1+ | Positive LVDS differential data input (Odd data) |
5 | RxO2- | Negative LVDS differential data input (Odd data) |
6 | RxO2+ | Positive LVDS differential data input (Odd data) |
7 | BIST | BIST |
8 | RxOCLK- | Negative LVDS differential clock input (Odd clock) |
9 | RxOCLK+ | Positive LVDS differential clock input (Odd clock) |
10 | RxO3- | Negative LVDS differential data input (Odd data) |
11 | RxO3+ | Positive LVDS differential data input (Odd data) |
12 | RxE0- | Negative LVDS differential data input (Even data) |
13 | RxE0+ | Positive LVDS differential data input (Even data) |
14 | GND | Ground |
15 | RxE1- | Negative LVDS differential data input (Even data) |
16 | RxE1+ | Positive LVDS differential data input (Even data) |
17 | GND | Ground |
18 | RxE2- | Negative LVDS differential data input (Even data) |
19 | RxE2+ | Positive LVDS differential data input (Even data) |
20 | RxECLK- | Negative LVDS differential clock input (Even clock) |
21 | RxECLK+ | Negative LVDS differential clock input (Even clock) |
22 | RxE3- | Negative LVDS differential data input (Even data) |
23 | RxE3+ | Positive LVDS differential data input (Even data) |
24 | GND | Ground |
25 | CTL | CTL_DVR |
26 | CE | CE_DVR |
27 | NC | No connection |
28 | VDD | Power Supply Input Voltage 5V |
29 | VDD | Power Supply Input Voltage 5V |
30 | VDD | Power Supply Input Voltage 5V |
Optical Characteristics
Paramete | Conditions | Min. | Typ. | Max. | Unit | |
Viewing Angle (CR>10) |
Horizontal | θL | 89 | - |
degree |
|
θR | 89 | - | ||||
Vertical | θT | 89 | - | |||
θB | 89 | - | ||||
Contrast Ratio | Center | 700 | 1000 | - | - | |
Response Time | Tr+Td | - | 14 | 20 | ms | |
CF Color Chromaticity (CIE1931) |
Red x |
Typ. -0.03 |
0.646 |
Typ. +0.03 |
- | |
Red y | 0.341 | - | ||||
Green x | 0.327 | - | ||||
Green y | 0.612 | - | ||||
Blue x | 0.143 | - | ||||
Blue y | 0.041 | - | ||||
White x | 0.283 | - | ||||
White y | 0.289 | - | ||||
Center Luminance of white | YLI | 300 | 350 | cd/m2 |
Backlight Characteristics
Parameter | Symbol | Value | Unit | ||
MiN. | Typ. | Max. | |||
Light Bar input Voltage | VLED | 51 | 54 | 57 | V |
Light Bar input Current | ILED | - | 480 | - | mA |
LED Life Time | LBL | 20000 | 30000 | - | Hrs |

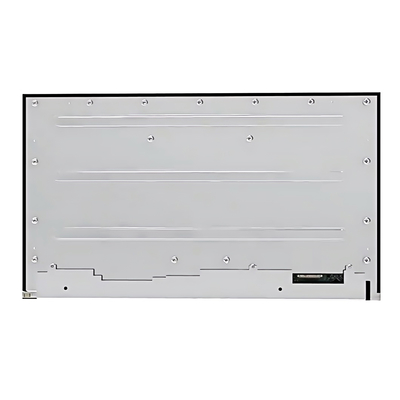

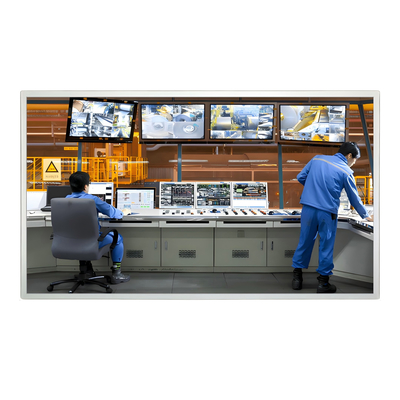

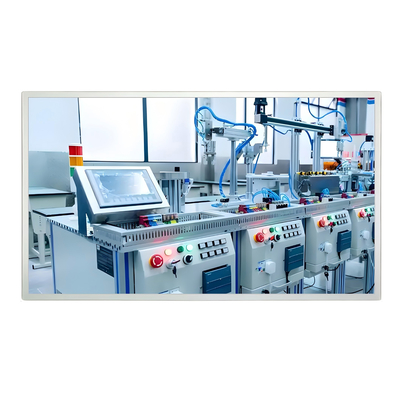

Product Image
