Product Details:
|
Model Number: | SFTO2150RX-7320AN | Screen Size: | 21.5-inch Diagonal |
---|---|---|---|
Resolution: | 1920×1080 Pixels (RGB Stripe) | Brightness: | 500 Cd/m² |
Operating Temp.: | -30°C To +80°C | Contrast Ratio: | 1000:1 (Typ.) |
Interface: | Dual-Channel LVDS (2 Pixel/Clock) | Backlight: | 50,000 Hours |
Power Consumption: | 20.96W (LCD: 3.5W + Backlight: 17.46W) | Compliance: | REACH & RoHS Compliant |
Highlight: | 500 cd/m2 Industrial TFT LCD,21.5-inch Industrial TFT LCD,Wide Temp Range TFT LCD |
Ultra-Rugged 21.5" FHD TFT LCD for Critical Environments
The SFTO2150RX-7320AN delivers military-grade reliability for industrial systems demanding uncompromised visual performance. With 500 nits brightness and 1000:1 contrast ratio, this sunlight-readable display excels in medical diagnostics, aerospace controls, and offshore operations.
Engineered for Extreme Conditions
Certified Reliability (Per IEC Standards):
240hrs @85°C/85%RH Operation
100-cycle Thermal Shock (-30°C↔60°C)
ESD Protection: ±15kV (Air), ±8kV (Contact)
Medical Imaging: Surgical monitors, MRI consoles
Avionics: Cockpit displays, flight control systems
Marine: Navigation bridges, engine room panels
Industry 4.0: HMI for CNC, robotics, SCADA
EU Directives: ROHS 2011/65/EU, REACH SVHC, EN 55032 EMC
Safety Certifications: UL 60601-1 (Medical), DNV-GL (Marine)
Warranty: 1-year functional replacement
HSF: Halogen-free construction
Request Customization
Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.
Specifications
Items | Specification | Unit |
Active Screen Size | 21.5 | inch |
Number of Pixels | 1920 X 1080 | Pixel |
Display Area | 476.64 (H) x 268.11(V) | mm |
Bezel Opening | 479.84(H) x 271.3(V) | mm |
Outline Dimension | 495.6(H) x 292.4(V) x 10.35(D) | mm |
Luminance, White | 500 (Center 1 point,Typ.) | cd/m 2 |
Power Supply Input Voltage | 12 (Typ) | V |
Power Supply Voltage | 5.0 (Typ) | V |
Power Consumption | Total = 20.96 (Typ.) | W |
Contrast Ratio | 1000:1 | -- |
Response time | 14 (Typ.)(G to G) | ms |
Color temperature | TBD | K |
Weight | TBD(Typ) | Kg |
Operating Temperature | -30 ~ 80 | ℃ |
Storage Temperature | -30 ~ 85 | ℃ |
Optical Characteristics
Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | ||
Viewing Angle range |
Horizontal |
Θ3 |
CR > 10 |
85 | 89 | - | Deg. | |
Θ9 | 85 | 89 | - | Deg. | ||||
Vertical |
Θ12 | 85 | 89 | - | Deg. | |||
Θ6 | 85 | 89 | - | Deg. | ||||
Luminance Contrast ratio | CR |
Θ = 0. (Center) Normal Viewing Angle |
450 | 500 | ||||
Cell Transmittance | Tr | - | 3.55 | - | % | |||
White luminance uniformity | ΔY | 75 | 80 | - | % | |||
Reproduction of color |
White |
Wx | 0.283 | 0.313 | 0.343 | - | ||
Wy | 0.299 | 0.329 | 0.359 | - | ||||
Red |
Rx | 0.607 | 0.637 | 0.667 | - | |||
Ry | 0.320 | 0.350 | 0.380 | - | ||||
Green |
Gx | 0.266 | 0.296 | 0.326 | - | |||
Gy | 0.590 | 0.620 | 0.650 | - | ||||
Blue |
Bx | 0.120 | 0.150 | 0.180 | - | |||
By | 0.02 | 0.05 | 0.08 | - | ||||
Response Time |
GTG | Tg | 14 | 25 | ms | |||
Cross Talk | CT |
- |
- |
2.0 | % |
Backlight Characteristics
Parameter | Symbol | Value | Unit | ||
Min. | Typ. | Max. | |||
LED Light Bar Input Voltage Per Input Pin | VPIN | 46.5 | 48.5 | 51.5 | V |
LED Light Bar Input total current | IPIN | --- | 360 | mA | |
LED Life Time | LLED | 40000 | 50000 | --- | Hrs |
Power Consumption | PBL | 17.46 | W |
External Dimensions
Interface Pin Definition
Pin No | Symbol | Function |
1 | RXO0- | Negative Transmission data of Pixel 0 (ODD) |
2 | RXO0+ | Positive Transmission data of Pixel 0 (ODD) |
3 | RXO1- | Negative Transmission data of Pixel 1 (ODD) |
4 | RXO1+ | Positive Transmission data of Pixel 1 (ODD) |
5 | RXO2- | Negative Transmission data of Pixel 2 (ODD) |
6 | RXO2+ | Positive Transmission data of Pixel 2 (ODD) |
7 | GND | Power Ground |
8 | RXOC- | Negative Transmission Clock (ODD) |
9 | RXOC+ | Positive Transmission Clock (ODD) |
10 | RXO3- | Negative Transmission data of Pixel 3 (ODD) |
11 | RXO3+ | Positive Transmission data of Pixel 3 (ODD) |
12 | RXE0- | Negative Transmission data of Pixel 0 (EVEN) |
13 | RXE0+ | Positive Transmission data of Pixel 0 (EVEN) |
14 | GND | Power Ground |
15 | RXE1- | Negative Transmission data of Pixel 1 (EVEN) |
16 | RXE1+ | Positive Transmission data of Pixel 1 (EVEN) |
17 | GND | Power Ground |
18 | RXE2- | Negative Transmission data of Pixel 2 (EVEN) |
19 | RXE2+ | Positive Transmission data of Pixel 2 (EVEN) |
20 | RXEC- | Negative Transmission Clock (EVEN) |
21 | RXEC+ | Positive Transmission Clock (EVEN) |
22 | RXE3- | Negative Transmission data of Pixel 3 (EVEN) |
23 | RXE3+ | Positive Transmission data of Pixel 3 (EVEN) |
24 | GND | Power Ground |
25 | NC | Not connection, this pin should be open |
26 | NC | Not connection, this pin should be open |
27 | NC | Not connection |
28 | VDD |
Power Supply: +5V |
29 | VDD | |
30 | VDD |

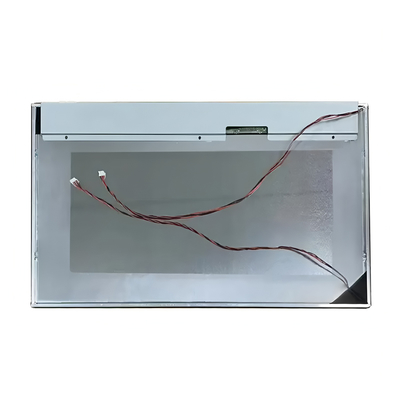

Product Image
