5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp

5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp
5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp 5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp 5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp

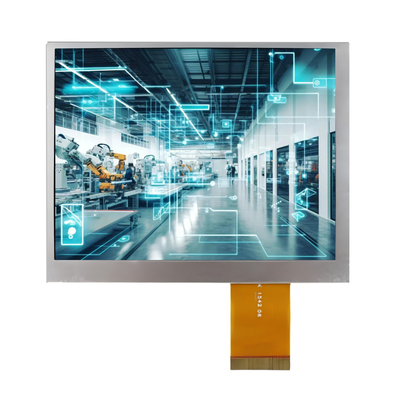

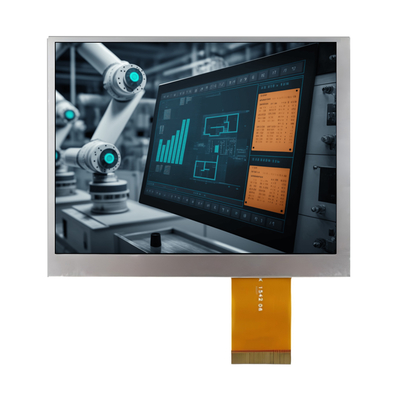

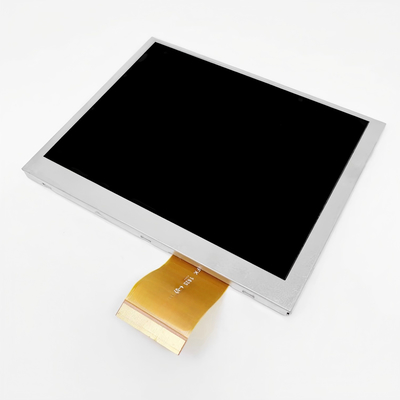

Large Image :  5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO560SH-7316AN / AT056TN52 V.3
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: the lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: PayPal, T/T, Western Union, Ali-Pay, WeChat Pay
Supply Ability: 3000K pcs per month

5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp

Description
Model Number: SFTO560SH-7316AN Screen Size: 5.6-inch Diagonal
Resolution: 640×480 Pixels (RGB Stripe) Brightness: 250 Cd/m²
Operating Temp.: -20°C To +70°C Technology: TN TFT, Transmissive
Interface: 24-bit Digital RGB Backlight: 15 LEDs,
Viewing Direction: 12 O'Clock Optimal Optical Performance: 51.2% NTSC
Power Supply: 3.3V Logic + Dual Voltage Drive Compliance: REACH & RoHS Compliant
Highlight:

TFT LCD Display Module

,

640x480 Industrial Display

,

5.6 inch TFT LCD Display



High-Performance 5.6" TFT LCD for Industrial Applications



The SFTO560SH-7316AN delivers rugged reliability for mission-critical systems. Engineered to AT056TN52 V.3 specifications, this industrial-grade 5.6-inch TFT features:



Key Technical Advantages
✅ Enhanced Visibility

  • 640x480 resolution with anti-glare polarizer

  • 250 cd/m² high brightness for sunlight readability

  • 500:1 contrast ratio with 12 o'clock optimal viewing

✅ Industrial-Grade Durability

  • Operates at extreme temperatures (-20°C ~ +70°C)

  • Withstands 100G mechanical shock (6ms duration)

  • IP50-equivalent dust protection via sealed construction

✅ Engineered for Stability

  • 24-bit RGB interface with DE/HV sync modes

  • Dual-voltage drive system (VGH:15V, VGL:-12V)

  • Scanning direction control (L/R, U/D pins) for flexible mounting



Certified Reliability
Passes rigorous environmental tests per international standards:

  • 96hrs high-temp (70°C) & humidity (50°C/90%RH)

  • 20-cycle thermal shock (-30°C↔80°C)

  • ESD protection: ±8kV (air), ±4kV (contact)



Global Compliance



  • ROHS 2011/65/EU & REACH SVHC compliant

  • Packaging meets 94/62/EC directives

  • Pb-free solder compatible (Sn96.3-Ag3.3-Cu0.4)



Applications

  • Industrial Automation: HMI panels, PLC interfaces

  • Medical Devices: Patient monitors, portable diagnostics

  • Transportation Systems: Train control displays, avionics

  • Test Equipment: Field measurement tools, handheld scanners



Request Customization

Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.





Specifications



Features Details
Display Size(Diagonal) 5.6”
LCD type TN TFT
Display Mode Transmissive / Normally White
Resolution 640 RGB x 480
View Direction 12 O’CLOCK
Gray Scale Inversion Direction 6 O’CLOCK
Module Outline 126.5(H) x 100(V) x 5.7(T) (Note1)
Active Area 112.896(H) x84.672(V)
Pixel Size 58.8*3 x 176.4
Pixel Arrangement RGB
Polarizer Surface Treatment Anti-glare
Driver IC ILI6192A-01&ILI5481A
Display Colors 16.7M
Interface 24 Bits-RGB Interface
With or Without Touch Panel Without
Operating Temperature -2070
Storage Temperature -3080
Weight 100





Optical Characteristics



Item Symbol Condition Specification Unit
Min. Typ. Max.

Luminance on

TFT( If =20mA/LED)



Lv









Normally

viewing angle θX = φY =0º



200



250



-



cd/m²

Contrast ratio(See 6.3) CR 600 1000 -

Response time

(See 6.2)



TR+TF



-

25 50



ms

  White XW 0.25 0.30 0.35
YW 0.26 0.31 0.36



Viewing Angle

(See 6.4)

Horizontal θX+





Center CR≥10

60 70 -





Deg.

θX- 60 70 -
Vertical φY+ 40 50 -
φY- 60 70 -
NTSC Ratio(Gamut)     - 51.2 - %





Backlight Characteristics



Item Symbol Condition Min. Typ. Max. Unit
Backlight Voltage VLED Ta=25 ºC, IF=20mA/LED - 9.3 - V
Backlight Current ILED Ta=25 ºC, VF=3.1V/LED - 100 - mA
Power dissipation PD   - 930 - mW
Uniformity Avg   75 80 - %
LED working life(25℃) -   20000 30000 - Hrs
Drive method Constant current
LED Configuration 15 White LEDs(3 LEDs in one string and 5 groups in parallel)





External Dimensions



5.6-inch Diagonal TFT LCD Display Module AT056TN52 V.3 Compatible 640x480 Industrial Display Brightness 250 cd/m2 Wide Temp 0



Interface Pin Definition



Pin No. Symbol I/O Function
1 VLED+ P Power for LED backlight anode
2 VLED+ P Power for LED backlight anode
3 VLED- P Power for LED backlight cathode
4 VLED- P Power for LED backlight cathode
5 GND P Power ground
6 VCOM I VCOM input
7 VCC P Power supply for digital circuit
8 MODE I DE or HV mode control
9 DE I Data Enable
10 VS I Vsync signal input
11 HS I Hsync signal input
12 B7 I Blue data input (MSB)
13 B6 I Blue data input
14 B5 I Blue data input
15 B4 I Blue data input
16 B3 I Blue data input
17 B2 I Blue data input
18 B1 I Blue data input
19 B0 I Blue data input(LSB)
20 G7 I Green data input(MSB)
21 G6 I Green data input
22 G5 I Green data input
23 G4 I Green data input
24 G3 I Green data input
25 G2 I Green data input
26 G1 I Green data input
27 G0 I Green data input(LSB)
28 R7 I Red data input(MSB)
29 R6 I Red data input
30 R5 I Red data input
31 R4 I Red data input
32 R3 I Red data input
33 R2 I Red data input
34 R1 I Red data input
35 R0 I Red data input(LSB)
36 GND P Power ground
37 DCLK I Sample clock
38 GND P Power ground
39 L/R I Select left to right scanning direction
40 U/D I Select up or down scanning direction
41 VGH I Positive power for scan driver
42 VGL I Negative power for scan driver
43 AVDD P Power supply for analog circuit
44 RESET I Reset
45 POL O Polarity select for the line inversion control signal
46 VCOM I VCOM input
47 NC - No Connector
48 NC - No Connector
49 NC - No Connector
50 NC - No Connector
