Product Details:
|
| Product: | 2.8 Inch TFT LCD | Resolution: | 480 X 640 Pixels |
|---|---|---|---|
| Color: | 262K | Display Type: | IPS TFT LCD |
| Interface: | RGB | Viewing Angle: | 80°/80°/80°/80° (L/R/U/D) |
| Driver IC: | ST7701S | Connection: | Connector Type |
| Surface Luminance: | 1000 Cd/m2 (nits) | Applications: | Industrial, Medical, Automotive |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 2.8 Inch TFT LCD Module,High Brightness TFT LCD Module,480x640 TFT LCD Module |
||
About this item SFTO280PY-7201AN
| Spec Category | Details |
|---|---|
| Brightness | 1000 nits (cd/m²) – 60% brighter than standard industrial displays |
| Screen Size | 2.8 inches (diagonal), 43.2x57.6mm display area |
| Resolution | 480RGB(H)×640(V) pixels – Perfect for detailed graphics and text |
| Interface | RGB interface with SPI control (pins 27-29), compatible with mainstream MCU |
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) – Full-view clarity from any orientation |
| Contrast Ratio | 1200:1 – Sharp distinction between light and dark elements |
| Backlight | LED side-light type (6 LEDs), 11.2-13.6V, 40,000-hour lifespan |
| Temperature Range | Operation: -20°C to 70°C; Storage: -30°C to 80°C – Resilient in extreme conditions |
| Dimensions | 46.2x65.2x2.3mm (±0.2mm) – Slim design for compact installations |
The High Brightness 1000nits 2.8-inch TFT LCD Display is the ultimate solution for professionals seeking a powerful, versatile, and high-performing display. Elevate your devices with unparalleled brightness and clarity, and cater to a variety of applications from industries to consumer electronics.
For more information, samples, or to discuss your specific needs, please contact us.
External Dimensions
![]()
Interface Pin Definition
| Pin No. | Symbol | Function |
| 1 | LEDA | LED back light(Cathode) |
| 2 | LEDK | LED back light(Cathode) |
| 3 | GND | Ground |
| 4 | VDD | Power Supply. 2.8~3.3V |
| 5 | GND | Ground |
| 6 | RESET | Reset input. |
| 7 | GND | Ground |
| 8~25 | DB17~DB0 | RGB blue data input |
| 26 | GND | Ground |
| 27 | SDA | SPI interface clock |
| 28 | SCL | SPI interface clock |
| 29 | CS | Chip select input pin |
| 30 | HSYNC | Line synchronizing signal for RGB interface operation |
| 31 | HSYNC | Frame synchronizing signal for RGB interface operation |
| 32 | PCLK | Dot clock signal for RGB interface operation |
| 33 | DE | Data enable signal for RGB interface operation |
| 34 | GND | Ground |
Electrical Characteristics
| Item | Symbol | Min. | Typ. | Max. | Unit |
| Analog supply voltage | VDD | 2.4 | 2.8 | 3.3 | V |
| Digital supply voltage | VDDI | - | - | - | |
| Input signal Voltage | VIH | 0.7VDDI | - | VDDI | V |
| VIL | GND | - | 0.3VDDI | V |
Backlight Unit (GND=0V)
| Item | Symbol | Min | Typ | Max | Unit |
| LED current | IL | - | 45 | 60 | mA |
| LED voltage | VL | - | 11.2 | 13.6 | V |
| Operating LED life time | Hr | 40000 | - | - | Hour |
Optical Specifications
| Item | Symbol | Condition | Min | Type | Max | Unit | |
| White luminance (Center) | Lv |
Θ=0 Normal Viewing Angle IBL=80mA |
1000 | 1100 | -- | cd/m2 | |
| Response time | Tr+Tf | -- | 35 | 40 | ms | ||
| Contrast ratio | CR | 900 | 1200 | -- | -- | ||
|
Color Chromaticity (CIE1931) |
white |
Wx | 0.278 | 0.308 | 0.338 | ||
| Wy | 0.309 | 0.339 | 0.369 | ||||
|
Viewing Angle |
Hor |
ΘL |
CR≥10 |
-- | 80 | -- | |
| ΘR | -- | 80 | -- | ||||
|
Ver |
ΘU | -- | 80 | -- | |||
| ΘD | -- | 80 | -- | ||||
| Brightness uniformity | Avg | Θ=0 | 80 | 90 | -- | % | |
| Color Gamut | NTSC | Θ=0 | 65 | 70 | -- | % | |

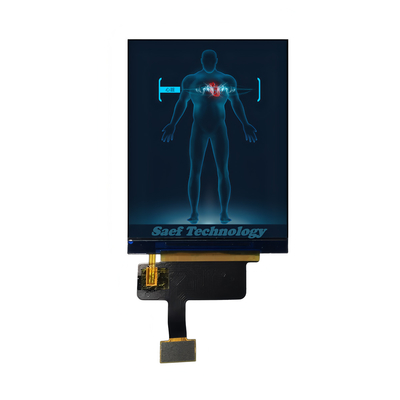

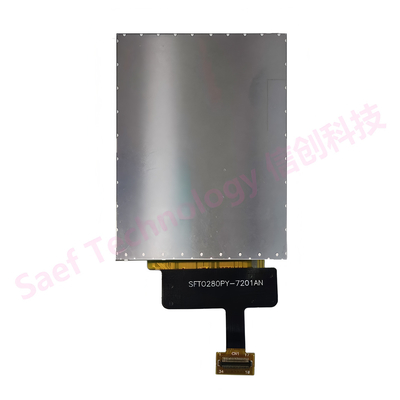

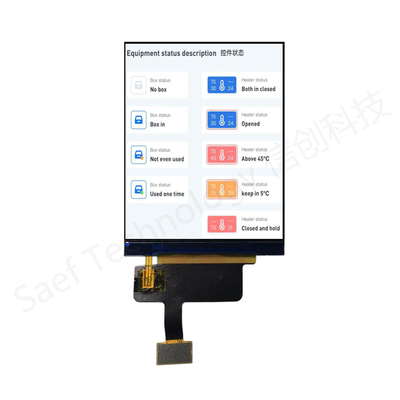

Product Image
![]()
![]()
![]()
