4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen

4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen
4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen 4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen 4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen

Large Image :  4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO430JS-7140A-N
Document: SFTO430JS-7140A-N Specifica...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: The lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen

Description
Product: 4.3 Inch TFT LCD Resolution: 4800x272 Dots
Interface: RGB Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃ Viewing Direction: Free(80/80/80/80)
Touch Screen: No Touch (PCAP Optional) Driver IC: ILI6485
Pin Number: 40 PINS Outline Dimensioin: 105.5x67.2x3.0 (mm)
Connection: ZIF Surface Luminance: 1000cd/m2
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

1000nits TFT LCD Module

,

Optional Touch Screen TFT LCD Module

,

4.3 Inch TFT LCD Module


About this item: SFTO430JS-7140A-N

Elevate your display needs with our 4.3-inch High Brightness 1000nits TFT LCD Module, featuring a crisp 480x272 resolution and optional touch screen. This module is designed for high visibility in various lighting conditions, making it perfect for outdoor and industrial applications.

Key Features:

  • High Brightness: 1000 nits ensure clear visibility even in direct sunlight.
  • Resolution: 480x272 pixels provide sharp and detailed images.
  • IPS Full Viewing Angle: 80/80/80/80 viewing angles ensure consistent image quality from any angle.
  • Optional Touch Screen: Available with resistive or projected capacitive touch screen options.
  • Wide Temperature Range: Operates from -30°C to +80°C, suitable for industrial environments.
  • RGB Interface: Supports RGB interface for easy integration with various systems.
  • Customizable: FPC and touch screen options can be customized to meet specific requirements.

Specifications:

  • Screen Size: 4.3 inches
  • Resolution: 480x272 pixels
  • Brightness: 1000 nits
  • Viewing Angle: IPS Full Viewing Angle (80/80/80/80)
  • Touch Screen Options: Resistive Touch Screen (RTP) or Projected Capacitive Touch Screen (PCAP)
  • Interface: RGB 24-bit
  • Operating Temperature: -30°C to +80°C
  • Storage Temperature: -30°C to +80°C
  • Aspect Ratio: 16:9
  • Supply Voltage (Vdd): 3.0V to 3.6V

Applications:

  • Outdoor Displays: Ideal for use in direct sunlight, such as kiosks and digital signage.
  • Industrial Equipment: Suitable for control panels and monitoring systems.
  • Home Automation: Enhance user interfaces for smart home devices.
  • Point of Sale (POS): Improve customer interaction with high-visibility displays.
  • Security Systems: Provide clear and bright displays for surveillance equipment.

Product Advantages:

  • High Visibility: 1000 nits brightness ensures clear visibility in all lighting conditions.
  • Wide Viewing Angles: IPS technology provides excellent viewing angles, making the display readable from any direction.
  • Durable: Wide temperature range and robust construction make it suitable for harsh environments.
  • Customizable: Flexible touch screen and FPC options allow for tailored solutions.
  • Cost-Effective: A competitive price point without compromising on quality.
  • Easy Integration: RGB interface and optional touch screen make it easy to integrate into existing systems.

Conclusion:

The 4.3-inch High Brightness 1000nits TFT LCD Module with 480x272 resolution and optional touch screen is the perfect solution for applications requiring high visibility and durability. Whether used in outdoor kiosks, industrial control panels, or home automation devices, this module ensures clear and vibrant displays. Upgrade your display solutions today with this cutting-edge technology!





External Dimensions

4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen 0





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 3.0-3.6 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -30 to 70 C
Storage temperature Tstg -30 to 80 C





Electrical Characteristics



Item Symbol Min Type Max Unit Test condition
Operating voltage VDD 3.0 3.3 3.6 V -
Supply current IDD - TBD - mA VDD=3.3V,Ta=25.C
Input voltage VIH 0.7VDD - VDD V



-

VIL 0 - 0.3VDD V





Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf - 25.6 - V If=40mA
Supply Current If - 40 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 1024 - mW -
Luminous Intensity for LCM



-

- 1000 - Cd/m2 If=40mA
Uniformity for LCM - 75 80 - % If=40mA
Life Time - 40000 50000 - H
Backlight Color White





Optical Characteristics



No. ITEM Symbol Conditions Specification Unit
        Min Typ Max
1 Response Time Tr+Tf 25℃

-

30 40 Ms
2 Transmittance (With PL) T(%) - - 6. 6 - -

3

Contrast Rate

Cr

θ=0,

Normal

viewing

angle

-

800

-

-

4 Viewing angles   CR>10 160 170   degree

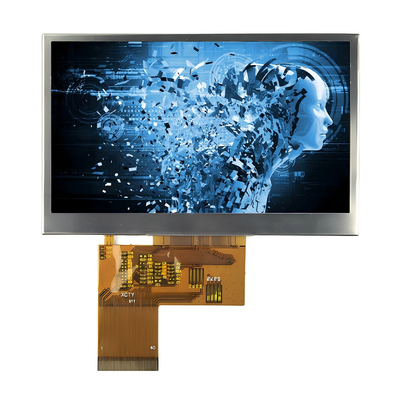

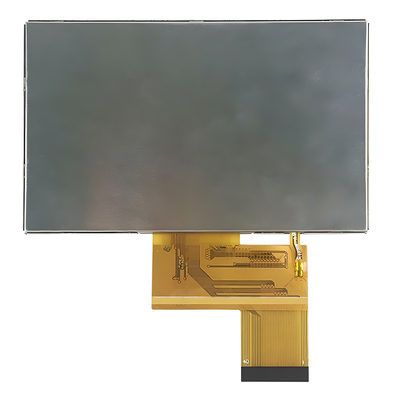

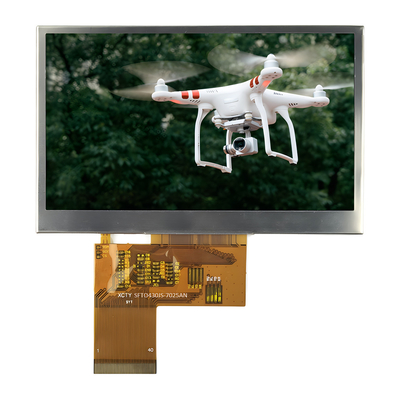

Product Image

4.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen 14.3-Inch High Brightness 1000nits TFT LCD Module 480x272 Resolution And Optional Touch Screen 2
