                        Product Details:


 |
| Product: | 7.6 Inch Square LCD Display | Resolution: | 800*800 Dots |
|---|---|---|---|
| Interface: | MIPI | Surface Luminance: | 1000 Cd/m2(nits) |
| Viewing Direction: | IPS, All Viewing Angle | LCD Controller: | ILI9881C |
| Operating Temp: | -20°C To +70°C | Storage Temp.: | -25°C To +75°C |
| Brightness: | 1000 Nits | Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 800x800 Dots TFT LCD Display,7.6-Inch TFT LCD Display,1000 nits High Brightness LCD Panel | ||
About this item: SFTO760GX-7109AN
Discover the cutting-edge High Brightness 7.6-Inch IPS Square TFT LCD Display, featuring an impressive brightness level of 1000 nits. This display offers a high-resolution 800x800 dots configuration, ensuring vibrant and clear visuals for various applications.
This high-performance TFT LCD display is ideal for a wide range of applications, including:
With its robust design and powerful features, the High Brightness 7.6-Inch IPS Square TFT LCD Display is engineered to meet demanding requirements across different industries, ensuring reliability and performance.
Elevate your projects with the High Brightness 1000 nits 7.6-Inch IPS Square TFT LCD Display and experience unparalleled visual quality today!
Product Specification
| Item | Specification | Unit |
| LCD size | 7.6 | inch |
| Display Mode | Normally Black | -- |
| Resolution | 800(RGB)x800 | Pixel |
| Pixel pitch | 36.5(H) x 109.5(V) | μm |
| Pixel Arrangement | RGB Vertical Stripe | |
| Viewing direction | Free | - |
| Module outline dimension | 142.56 (H)*148.24 (V)*5.1(D) | mm |
| LCD AA | 135.36 (H)* 135.36 (V) | mm |
| Colors | 16.7M | - |
| Interface | MIPI | - |
| Operating Temperature | -20℃~ +70℃ | - |
| Storage Temperature | -30℃~ +80℃ | - |
Outline Drawing

Maximum Absolute Rating
| Parameter | Symbo | Min | Max | Unit |
| Power Supply voltage | VCI~GND | -0.3 | +6.5 | V |
| Power Supply voltage 2 | IOVCC~GND | -0.3 | +3.3 | V |
| Logic Input Voltage Range | ViN | -0.3 | IOVCC+0.3 | V |
| Logic Output Voltage Range | Vo | -0.3 | IOVCC+0.3 | V |
| Operating temperature | Topr | -20 | +70 | ℃ |
| Storage temperature | Tstg | -25 | +75 | ℃ |
DC Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply voltage for analog circuit | VCl | 2.5 | 3.3 | 3.6 | V |
| Supply voltage for logic circuit | IOVCC | 1.65 | 1.8 | 3.3 | V |
| Input voltage 'H'leve | VH | 0.7*IOVCC | IOVCC | V | |
| Input voltage 'L'leve | VL | GND | 0.3*IOVCC | V | |
| Output voltage 'H'level | Voh | 0.8*IOVCCl | IOVCC | V | |
| Output voltage 'L'leve | Vol | GND | 0.2*IOVCC | V |
Interface Pin Definition
| Pin No. | Symbol | Description |
| 1 | LEDA | LED backlight anode |
| 2 | LEDK | LED backlight cathode. |
| 3 | LEDK | LED backlight cathode |
| 4 | VCl | Power supply for the analog power |
| 5 | IOVCC | Power supply for the logic power and I/O circuit |
| 6 | RESET | Reset signal(low active |
| 7 | TE | Tearing effect output |
| 8 | PWM | The PWM frequency output for LCD driver control. |
| 9 | GND | Power ground |
| 10 | MIPI_DP0 | MIPI-DSI data lane 0 posivtve input pin |
| 11 | MIPI_DNO | MIPI-DSI data lane 0 negtive input pin |
| 12 | GND | Power ground |
| 13 | MIPI_DP1 | MIPI-DSI data lane 1 posivtve input pin |
| 14 | MIPI_DN1 | MIPI-DSI data lane 1 negtive input pin |
| 15 | GND | Power ground |
| 16 | MIPI_CLKP | MIPl-DSI data lane posivtve input pin. |
| 17 | MIPI_CLKN | MIPI-DSI data lane negtive input pin |
| 18 | GND | Power ground |
| 19 | MIPI_DP2 | MIPI-DSI data lane 2 posivtve input pin |
| 20 | MIPI_DN2 | MIPI-DSI data lane 2 negtive input pin |
| 21 | GND | Power grounc |
| 22 | MIPI_DP3 | MIPI-DSI data lane 3 posivtve input pin |
| 23 | MIPI_DN3 | MIPI-DSI data lane 3 negtive input pin |
| 24 | GND | Power ground |
| 25 | TP_INT | INT pin for CTP(NC) |
| 26 | TP SDA | SDA pin for CTP(NC) |
| 27 | TP_SCL | SCL pin for CTP(NC) |
| 28 | TP_RESET | Reset pin for TP(NC) |
| 29 | TP_VCl | VCl pin for CTP(NC) |
| 30 | TP_IOVCC | IOVCCpin for CTP(NC) |
Optical Characteristics
| Item | Symbo | Conditio N | Min | Typ | Max | Unit | |
| Transmittance (w/o polarizer) | T% | θ=0° Ta=25℃ | 4.7 | 5.5 | % | ||
| Contrast ratio | Cr | 1000 | 1200 | ||||
| Response time | Ton+Toff | 30 | 35 | MS | |||
| Surface Luminance | LV | 850 | 1000 | cd/m² | |||
| Color Gamut | θ=0° | 65 | 70 | % | |||
| Viewing angle range | Or V er | Ox+ | Center CR>10 | 85 | deg | ||
| Ox- | 85 | deg | |||||
| Oy+ | 85 | deg | |||||
| Oy. | 85 | deg | |||||

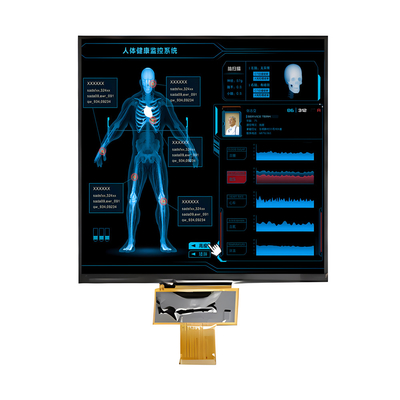

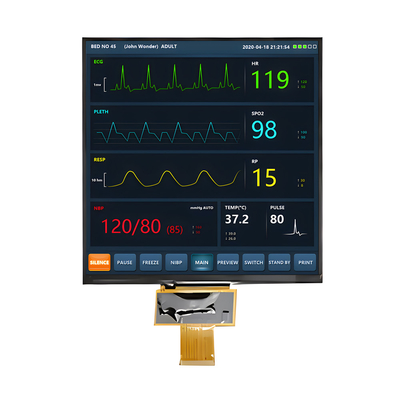

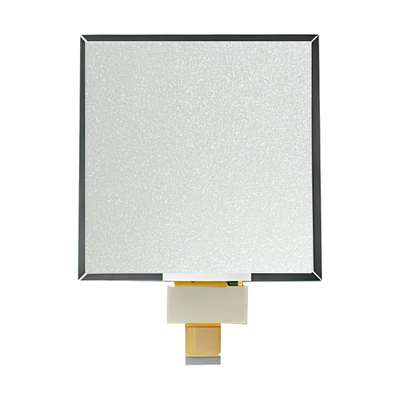

Product Image
