High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface

High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface
High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface

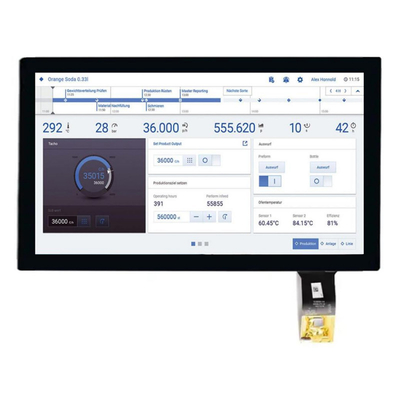

Large Image :  High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1560SM-7050A3CT
Document: SFTO1560SM-7050A3CT Specifi...on.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: the lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface

Description
Keywords: EDP TFT Display 15.6 Inch Resolution: 1920*1080 Pixels
LCD Size: 360.0 X 212.3 X 6.25mm (w/o Touch) LCD With Touch: 382.4 X 231.3 X 9.10mm (with Touch)
Active Area: 344.16 X 193.59mm LCD Interface: EDP
CTP Interface: USB Touch Screen: CTP (Capacitive Touch Screen)
Surface Luminance: 1000 Cd/m2 Operating Temp.: 0℃ To +50℃
Storage Temp.: -20℃ To +60℃ Display Type: IPS Full Viewing Angles
Surface Treatment: Haze 25%, 3H Contrast Ratio: 1000
Display Color: 16.7 M LED Lifetime: 40,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

EDP Interface High Brightness TFT Display

,

15.6 Inch High Brightness TFT Display

,

1000Nits High Brightness TFT Display



About this item SFTO1560SM-7050A3CT



Elevate your visual experience with our High Brightness 15.6 Inch IPS TFT LCD Display, featuring an impressive brightness of 1000 nits. Designed for exceptional clarity and performance, this display is perfect for a wide range of applications, including outdoor use, industrial settings, and advanced multimedia setups.



Key Features:



Exceptional Brightness: With a stunning brightness of 1000 nits, this display ensures vibrant and vivid visuals even in brightly lit environments. Say goodbye to washed-out images and welcome enhanced visibility in any condition!





Full HD Resolution: Experience sharp and crystal-clear images with Full HD (1920 x 1080) resolution. Whether for gaming, video playback, or professional applications, this display provides stunning picture quality.





IPS Technology: The In-Plane Switching (IPS) technology guarantees wide viewing angles and accurate color reproduction. Enjoy consistent colors and contrast from almost any angle, making it ideal for collaborative projects or multi-user environments.





EDP Interface: The Embedded DisplayPort (EDP) interface allows for seamless connectivity, ensuring high-speed data transfer and optimal performance. This makes it suitable for integration with a variety of devices and systems.





USB Capacitive Touch Panel (CTP): The integrated USB CTP enhances interactivity, allowing for smooth and responsive touch experiences. Perfect for interactive displays, kiosks, and embedded applications.





Versatile Applications: Ideal for industrial equipment, automotive displays, medical devices, and consumer electronics, this LCD display is engineered to meet a variety of demanding applications.



With our High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display, you are guaranteed superior performance, outstanding durability, and exceptional visual quality. Experience the difference and take your projects to the next level!





Mechanical specifications



Parameter Specification Unit
Display size 15.6” (Diagonal) inch
Active area 344.16(H) ×193.59(V) mm
Pixel Format

(1pixel = R + G + B dot)

1920(H) ×1080(V)

pixel
Pixel pitch 0.17925(H) x 0.17925 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Display scheme IPS
Power Consumption TBD W
Surface treatment of front polarizer Anti-glare coating: (3H)



Outline dimensions TFT LCM ONLY



Parameter Min Typ Max Unit

Unit outline dimensions

Width 359.7 360 360.3 mm
Height 212.0 212.3 212.6 mm
Depth 5.95 6.25 6.55 mm
Gross weight - - - g





Outline dimensions of Capacitive Touchscreen



Parameter Min Typ Max Unit

Unit outline dimensions

Width   382.4   mm
Height   231.3   mm
Depth   9.1   mm
Gross weight - - - g





External Dimensions



High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface 0High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface 1





Interface Pin Definition



Pin No. Symbol I/O Function
1 NC - Reserved for CD
2 H_GND P High Speed round
3 Lane1_N I Complement Signal Link Lane 1
4 Lane1_P I True Signal Link Lane 1
5 H_GND P High Speed round
6 Lane0_N I Complement Signal Link Lane 0
7 Lane0_P I True Signal Link Lane 0
8 H_GND P High Speed round
9 AUX_CH_P I True Signal Auxiliary Channel
10 AUX_CH_N I Complement Signal Auxiliary Channel
11 H_GND P High Speed round
12 LCD_VDD P LCD logic and driver power(3.3V)
13 LCD_VDD P LCD logic and driver power(3.3V)
14 NC I Reserved for LCD manufacturer’s use
15 LCD_GND P LCD logic and driver ground
16 LCD_GND P LCD logic and driver ground
17 HPD O HPD signal pin
18 LED-1 P NC
19 LED-2 P NC
20 LED-3 P NC
21 LED-4 P NC
22 BL ENABLE I NC
23 BL PWM DIM I NC
24 NC - Reserved for LCD manufacturer’s use
25 NC - Reserved for LCD manufacturer’s use
26 BL PWR P NC
27 BL PWR P NC
28 BL PWR P NC
29 BL PWR P NC
30 NC - Reserved for LCD manufacturer’s use





Backlight Specifications



Item Symbol MIN TYP MAX UNIT
Supply Voltage Vf 28 30 33 V
Supply Current If - 270 360 mA
Life Time - 40000 50000 - Hr





Optical characteristics



Paramete Conditions Min. Typ. Max. Unit

Viewing Angle

(CR>10)

Horizontal θL - 85 -

degree

    θ R - 85 -
  Vertical θT - 85 -
    θB - 85 -
Contrast Ratio Center 600 800 - -
Response Time Tr+Td - 25 35 ms

CF Color Chromaticity

(CIE1931)

Red x

Typ. -0.03

0.642

Typ. +0.03

-
  Red y   0.3078   -
  Green x   0.283   -
  Green y   0.594   -
  Blue x   0.142   -
  Blue y   0.149   -
  White x   0.303   -
  White y   0.329   -
NTSC ratio %   (45)   -
Center Luminance of white YLI 900 1000   cd/m2
White uniformity 13pt δW 75 80





Product Image

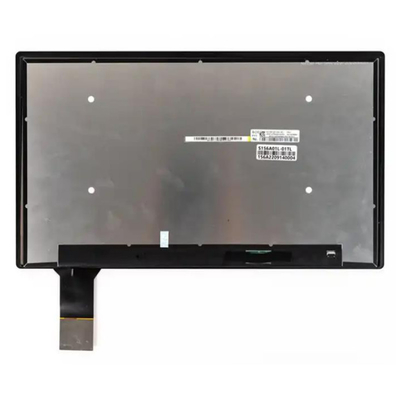

High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface 2

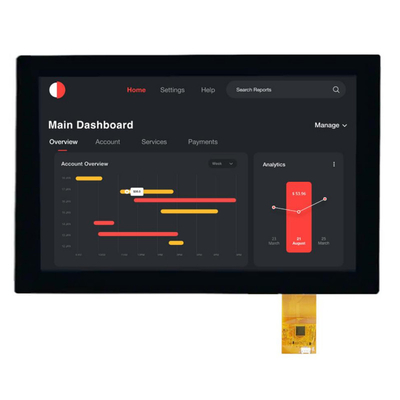

High Brightness 1000Nits 15.6 Inch IPS TFT LCD Display FHD Resolution with EDP Interface 3
