Product Details:
|
| Keywords: | 13.3 Inch PCAP TFT LCD | Resolution: | 1920*1080 Pixels |
|---|---|---|---|
| LCD Size: | 306.86x182.31x5.25mm (w/o Touch) | LCD With Touch: | 307.55x185.62x7.25mm (with Touch) |
| Active Area: | 293.76 X 165.24mm | LCD Interface: | EDP |
| CTP Interface: | USB | Touch Screen: | CTP |
| Surface Luminance: | 1000 Cd/m2 | Operating Temp.: | -0℃ To +50℃ |
| Storage Temp.: | -20℃ To +60℃ | Display Type: | IPS Full Viewing Angles |
| Surface Treatment: | Haze 25%, 3H | Contrast Ratio: | 1000 |
| Display Color: | 16.7 M | LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | EDP Interface TFT LCD Display,13.3 Inch High Brightness TFT,1000 Nits TFT LCD Display |
||
About this item: SFTO1330XC-7119A3CT
Elevate your visual experience with our High Brightness 1000 Nits 13.3 Inch IPS TFT LCD Display, designed for clarity and performance in any lighting condition. This display features a Full HD resolution 1920*1080 Dot matrix, ensuring sharp images and vibrant colors, making it ideal for a variety of applications, from portable devices to industrial equipment.
Key Features:
High Brightness: With an impressive brightness level of 1000 nits, this display ensures exceptional visibility even in direct sunlight or bright environments. Perfect for outdoor use or professional applications where clear visibility is paramount!
Impressive Full HD Resolution: Enjoy stunning image quality with a resolution of 1920 x 1080 pixels. Experience sharper details, richer colors, and an immersive viewing experience that brings your content to life.
IPS Technology: Our In-Plane Switching (IPS) technology offers wide viewing angles (up to 178 degrees), allowing for consistent color and brightness from various perspectives. Ideal for collaborative environments or multi-user scenarios!
EDP Interface: The integrated Embedded DisplayPort (EDP) interface ensures easy connections and compatibility with a wide range of devices. Experience seamless connectivity and enhanced performance.
Versatile Applications: Whether you are designing a portable computing device, a digital signage solution, or any high-performance display application, this 13.3 inch display is versatile enough to meet your needs.
Why Choose Our Display?
Investing in our High Brightness 1000 Nits 13.3 Inch IPS TFT LCD Display means choosing quality, durability, and performance. With rigorous testing for reliability and longevity, this display is built to withstand demanding conditions without compromising on visual excellence.
Conclusion:
Upgrade your projects with our High Brightness 1000 Nits 13.3 Inch IPS TFT LCD Display. Experience the difference that high-quality displays can make. For more information or to place an order, please contact us today!
Feel free to customize any part of this introduction to better fit your brand voice or specific marketing needs!
Features
| Size | 13.3 inch |
| Resolution Interface | 1920(H) x RGB X 1080(V) eDP1.2/2.7Gbps/2lane |
| Connect type | 20455-030E-76 (I-PEX) |
| Color Depth | 16.7M |
| Technology type | A-si |
| Display Spec. Pixel pitch (mm) | 0.153 x 0.153 |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Display Mode | Normally Black |
| TP Driver IC | NC |
| LCD Surface Treatment | Anti-glare coating:(3H) |
| Viewing Direction Contrast Ratio | U/D/L/R:85/85/85/85 1000(TYP.) |
|
Color gamut Luminance(cd/m2) |
72% 1000(TYP.) |
| Consumption of Power | LCD :1.8(W)(Max.) (White Pattern) |
| LED Numbers | 50LEDS |
| Weight (g) | - |
| Outline (W x H x D) (mm) | 307.55x185.62x7.25 |
| TP Lens view area(mm) | 294.36x165.84 |
| LCM (W x H x D) (mm) | 306.86x182.31x5.25 |
| LCD Active Area(mm) | 293.76 x 165.24 |
| With /Without TSP | Without CTP |

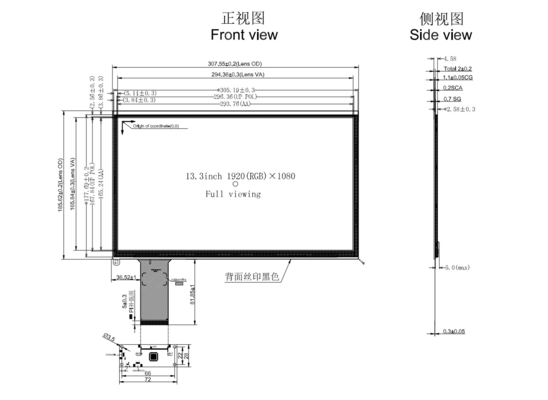

External Dimensions
Interface Pin Definition
| Pin No | Symbol | I/O | Function |
| 1 | NC | NC(NOT USE) | |
| 2 | H_GND | P | High Speed Ground |
| 3 | Lanel N | Complement Signal Link Lane 1 | |
| 4 | LanelP | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed Ground |
| 6 | Lane0 N | Complement Signal Link Lane 0 | |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed Ground |
| 9 | AUX_CH_P | True Signal Auxiliary Channel | |
| 10 | AUX_CH_N | I | mp lement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed Ground |
| 12 | LCD VCC | P | CD logic and driver power(3.3V) |
| 13 | LCD_VCC | P | CD logic and driver power(3.3V) |
| 14 | NC | NC(NOT USE) | |
| 15 | LCD GND | P | LCD logic and driver ground |
| 16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD Signa |
| 18 | LED-1 | P | Backlight LED- |
| 19 | LED-2 | P | Backlight LED- |
| 20 | LED-3 | P | Backlight LED- |
| 21 | LED-4 | P | Backlight LED- |
| 22 | LED_PWMO | O | BL/LED PWM OUT |
| 23 | LED_PWMI | I | BL/LED PWM IN |
| 24 | NC | Reserved for LCD manufacturer's use | |
| 25 | NC | Reserved for LCD manufacturer's use | |
| 26 | LED-5 | P | Backlight LED- |
| 27 | LED-6 | P | Backlight LED- |
| 28 | BL_PWR | P | Backlight power LED+ |
| 29 | BL_PWR | P | 3acklight power LEDH |
| 30 | NC | Reserved for LCD manufacturer's use |
PCAB USB Pin Definition
1 VCC
2 USB-
3 USB+
4 GND
Backlight Specification
| Parameter | Symbol | Min . | Typ. | Max. | Units |
| LED input | VLED | 28 |
- |
33 | [V] |
| LED Forward Voltage | VF | 2.8 | 3.0 | 3.3 | [V] |
| LED Forward Current | IF | 320 | [mA] | ||
| B/ L Power Consumption | P_B/L |
- |
- |
- |
[W] |
| LED Life Time | LT | 30000 | 40000 | - | Hours |
| LED Number | NLED |
- |
50 |
- |
PCS |
Optical Characteristics
| Items | Symbo | Condition | Specifications | Unit | |||
| Min. | Typ. | Max. | |||||
| Contrast Ratio | CR |
O=0deg |
700 | 1000 | |||
| Luminance of white | YLI | 800 | 1000 | cd/m² | |||
| Response Time | TR+TF | 30 | 35 | ms | |||
|
Chromaticity |
Red | XR | (0.642) | ||||
| YR | (0.333) | ||||||
| Green | Xg | (0.301) | |||||
| Yg | (0.621) | ||||||
| Blue | XB | (0.153) | |||||
| YB | (0.055) | ||||||
| White | Xw | (0.313) | |||||
| Yw | (0.329) | ||||||
|
Viewing angle |
Hor. | ①1(3 o'clock) |
Center CR≥10 |
80 | 85 |
deg |
|
| ①2(9 o'clock) | 80 | 85 | |||||
| Ver. | θ2(12 o'clock) | 80 | 85 | ||||
| θ1(6 o'clock) | 80 | 85 | |||||
| NTSC ratio | % | 65 | 72 | % | |||

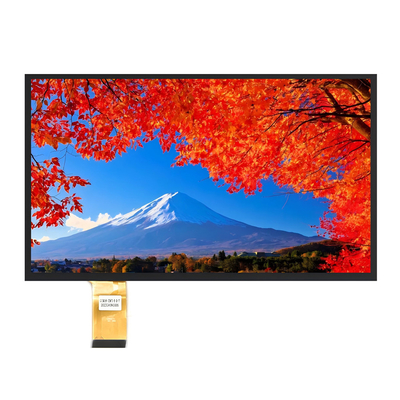

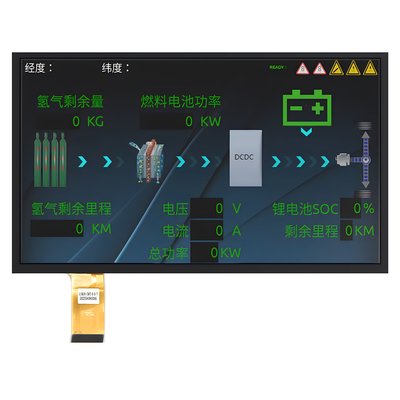

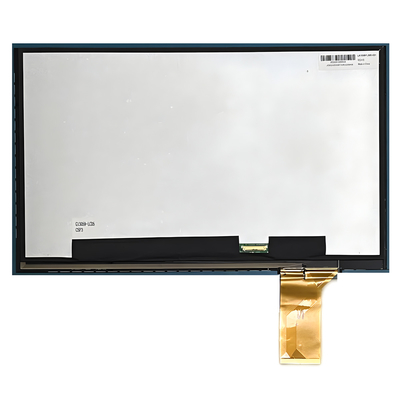

Product Image
