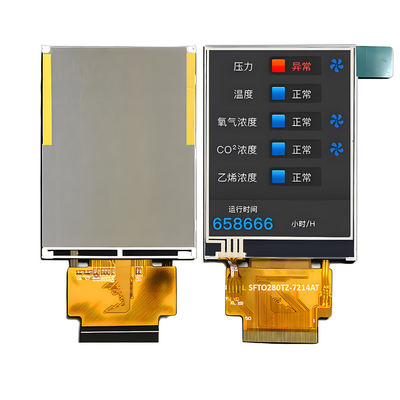

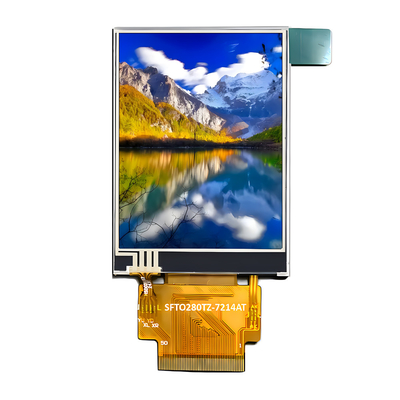

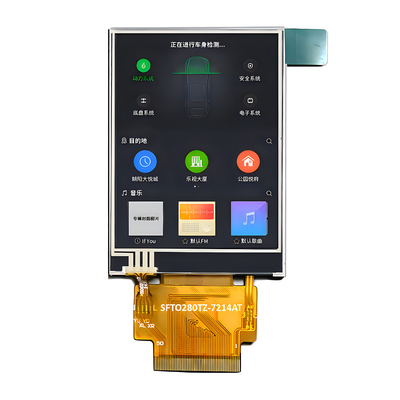

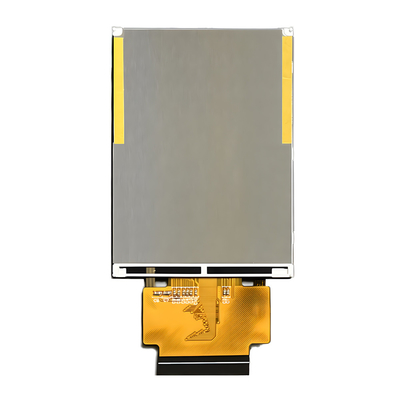

1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface

1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface
1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface

Large Image :  1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO280TZ-7214AT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: The lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface

Description
Product: 2.8 Inch TFT LCD Resolution: 240 X 320
Color: 262K Touch Screen: Resistive Touchscreen
Interface: MCU, RGB Viewing Direction: IPS, All Viewing Angles
Driver IC: ILI9341V Connection: ZIF
Surface Luminance: 1000 Cd/m2(nits) Pin Number: 50 Pins
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

240 X 320 Dots High Brightness TFT

,

TFT LCD Display 240 X 320 Dots

,

2.8 inch High Brightness TFT



About this item SFTO280TZ-7214AT



Saef Technology is excited to present our latest innovation in display technology: the High Brightness 1000nits 2.8-inch TFT LCD. Whether you’re designing for outdoor applications or need a clear and vibrant display for your device, this screen offers unbeatable performance and reliability.



Key Features:

  • Outstanding Brightness: With an impressive brightness level of 1000 nits, this display ensures that content is visible even in direct sunlight, making it ideal for outdoor and high ambient light environments.

  • Compact Size: Measuring just 2.8 inches, this display strikes the perfect balance between portability and usability, fitting seamlessly into a variety of compact devices.

  • High Resolution: The 240 x 320 pixel resolution guarantees crisp and clear visuals, allowing for detailed graphics and text, enhancing user experience.

  • IPS Technology: Utilizing In-Plane Switching (IPS) technology, the display offers wide viewing angles and accurate color reproduction, ensuring that images and videos look great from any perspective.

  • Versatile Interface: Equipped with both MCU and RGB interfaces, this display is highly adaptable, making it easy to integrate into a range of microcontroller applications and existing systems.

  • Energy Efficient: Designed with efficiency in mind, the display balances brightness and power consumption, helping to extend battery life in portable devices.



Key Benefits:

  • Enhanced Visibility: Perfect for applications in bright environments, such as outdoor kiosks, wearable devices, and automotive displays.

  • User-Friendly: The high-resolution and vibrant colors improve the overall user experience, making it easier to read and interact with the display.

  • Easy Integration: With dual interface options, developers can easily connect the display to various microcontrollers and systems, reducing design complexity and time to market.

  • Durability: Built to withstand the demands of various applications, ensuring longevity and consistent performance over time.



Applications:

  • Wearable Technology: Perfect for smartwatches and fitness trackers.
  • Automotive Displays: Ideal for dashboards and in-car entertainment systems.
  • Industrial Equipment: Great for handheld devices in manufacturing and logistics.
  • Consumer Electronics: Suitable for portable gaming devices, handheld consoles, and more.



Conclusion:

The High Brightness 1000nits 2.8-inch TFT LCD Display is the ultimate solution for professionals seeking a powerful, versatile, and high-performing display. Elevate your devices with unparalleled brightness and clarity, and cater to a variety of applications from industries to consumer electronics.



For more information, samples, or to discuss your specific needs, please contact us.





Features


General Information Items Specification Unit
Main Panel
Display area(AA) 43.2(H) *57.6(V) (2.8inch ) mm
Driver element a-Si TFT active matrix -
Display colors 262K colors
Number of pixels 240(RGB) *320 dots
Pixel pitch 0.180(H) *0.180(V) mm
Viewing angle ALL o'clock
Drive IC ILI9341V -
Color Pixel Arrangement RGB vertical stripe
Display mode Transmissive/ Normally Black -
Operating temperature -20~+70
Storage temperature -30~+80





Mechanical Information



Item Min. Typ. Max. Unit Note
Module size Horizontal(H) - 50.00 - mm ±0.2
Vertical(V) - 69.20 - mm ±0.2
Depth(D) - 3.99 - mm ±0.2
Weight - TBD - g -





External Dimensions
1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 0

1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 1






Interface Pin Definition

Pin NO. Symbol Level Function
1 LEDK L BacklightK
2~5 LEDA H BacklightA
6 IM0 H/L Select the MCU interface mode NOTE( 1)
7 IM1 H/L
8 IM2 H/L
9 IM3 H/L
10 RESED H/L Hardware reset pin
11 VSYNC H/L Vertical (Frame) synchronizing input signal for RGB
12 HSYNC H/L Horizontal (Line) synchronizing input signal for RGB
13 DOTCLK H/L Dot clock signal for RGB interface operation.
14 ENABLE H/L Data enable signal for RGB interface operation.
15~32 D17-DB0 H/L Data bus
33 SD0 H/L SPI interface output pin.
34 SDA H/L SPI interface input pin.
35 RD H/L Read enable clock pin
36 WR-RS H/L A register select signal
37 RS-SCL H/L Write enable clock input pin
38 CS H/L Chip select input pin
39 TE H/L Tearing effect output
40 IOVCC H Power supply( 1.8V)
41 IOVCC H Power supply(2.8-3.3V)
42 VCI H Power supply(2.8-3.3V)
43 GND L Ground
44 XR / /
45 YD / /
46 XL / /
47 YU / /
48 GND L Ground
49 GND L Ground
50 GND L Ground





Absolute Maximum Ratings

Item

Symbol

Values

Unit

Min Max.
Supply Voltage for Logic circuit IOVCC -0.3 4.6 V
Supply Voltage for analog circuit VCI -0.3 4.6 V





Operating Conditions

Item

Symbol

Values

Unit

Remark

Min Typ Max.
Power Supply VCC 2.7 2.8 3.3 V
Power Supply IOVCC 1.7 1.8 3.3 V
Normal mode Current consumption Icc - 12 - mA VCC=2.8V
TFT Gate ON Voltage VGH   15   V
TFT Gate OFF Voltage VGL   -7.5 - V





Backlight Unit (GND=0V)

Item

Symbol

Values

Unit

Remark

Min Typ Max.
Forward supply Voltage Vf 2.8 - 3.4 V
Forward supply Current If - 120 - mA
LCM Luminance LV 900 1000 - cd/m2 IB= 120mA
Uniformity / 80     % -




Product Image

1000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 21000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 31000nits 2.8 inch High Brightness TFT LCD Display 240 X 320 Dots IPS MCU and RGB Interface 4
