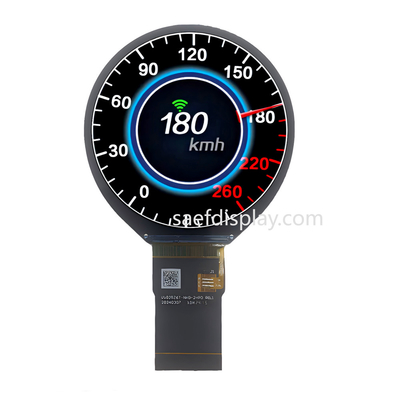

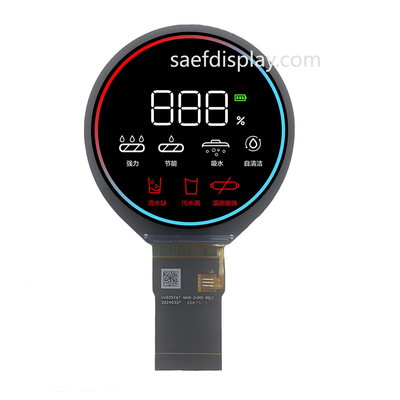

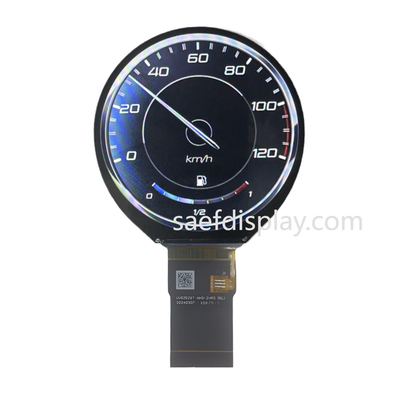

Product Details:
|
| Product: | 2.48 Inch Circular TFT Display | Resolution: | 480 (RGB) X 480 Dots |
|---|---|---|---|
| Surface Luminance: | 500 Cd/m2 (nits) | Touch Screen: | Available / Optional |
| Viewing Direction: | IPS Full Viewing Angle | Driver IC: | ST7701S |
| Pin Number: | 40 Pins | Connection: | ZIF |
| Interface: | 3SPI+18RGB | LED Lifetime: | 40,000 Hours |
| Top:: | -20°C To +70°C | Compliance: | REACH & RoHS Compliant |
| Highlight: | TFT LCD IPS Circular Display,2.48 Inch Circular LCD Display,480x480 Circular LCD Display |
||
Datasheet Download
SFTO248XC-7204AN Specification.pdf
About this item SFTO248XC-7204AN
Overview
The 2.48 Inch TFT LCD IPS Circular Display combines cutting-edge technology with an attractive design, making it ideal for a wide range of applications including wearables, smart home devices, and other innovative electronic gadgets. With a round resolution of 480x480 pixels, this display delivers vibrant colors and sharp images, providing users with an immersive visual experience.
Key Features
High-Resolution Display:
IPS Technology:
Compact Size:
Multiple Interface Support:
High Brightness and Contrast:
Rich Color Depth:
Low Power Consumption:
User-Friendly Driver Support:
Applications
Conclusion
The 2.48 Inch TFT LCD IPS Circular Display is a versatile and powerful choice for designers and engineers looking to enhance their products with a high-quality visual interface. Its compact size, along with advanced features, makes it ideal for a variety of cutting-edge applications. Embrace the future of display technology with this remarkable circular TFT LCD.
| Feature | Specifications | |
|
Display Spec. |
LCD type | 2.48 inch |
| Resolution (H*V) | 480(RGB)×480 | |
| Technology Type | a-Si TFT | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| Viewing Direction | ALL | |
| Gray Scale Inversion Direction | - | |
|
Mechanical Characteristics |
Outline Dimensions (W x H x T) (mm) | 65.87*69.04* 1.85 |
| Active Area(mm) | 62.93*62.93 | |
| CTP View Area(mm) | / | |
| With /Without Touch screen | Without | |
| Connector Type | 0.5 pitch 40pin | |
| Backlight Type | LED | |
| Weight (g) | TBD | |
|
Electrical Characteristics |
Display Interface | 3SPI+18RGB |
| Number of color | 262K | |
| Display Driver IC | ST7701S | |
Mechanical Drawing
Pin Assignment
| 1 | LED A | LED ANODE |
| 2 | LED K | LED CATHODE |
| 3 | LED K | LED CATHODE |
| 4 | GND | Ground |
| 5 | VCI | Power supply |
| 6 | RESET | Reset Signal ,Active Low |
| 7 | NC | NC |
| 8 | NC | NC |
| 9 | SDA | SPI Data signal |
| 10 | SCK | SPI Clock signal |
| 11 | CS | SPI Chip select signal |
| 12 | PCLK | RGB dot clock signal |
| 13 | DE | RGB data enable signal |
| 14 | VSYNC | RGB frame synchronizing signal |
| 15 | HSYNC | RGB line synchronizing signal |
| 16~33 | DB0~DB17 | RGB data signal(DB0:BlUE LSB;DB5:BIUE MSB;DB6:GREEN LSB;DB11:GREEN,MSB;DB12:RED LSB;DB17:RED MSB) |
| 34 | GND | Ground |
| 35 | TP_INT | Touch Interrupt |
| 36 | TP_SDA | Touch IIC Data signal |
| 37 | TP_SCL | Touch IIC Clock signal |
| 38 | TP_RESET | Touch Reset Signal |
| 39 | TP_VCI | Touch Power supply |
| 40 | GND | Ground |
ABSOLUTE MAXIMUM RATINGS
DC ELECTRICAL CHARACTERISTICS
BACKLIGHT UNIT CHARACTERISTICS
