2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface

2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface
2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface

Large Image :  2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO280PY-7200ACT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: 5.0-6.0 USD, price can be negotiated based on order quantity.
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface

Description
Product: 2.8 Inch TFT With CTP Resolution: 240*320 Dots
Interface: 4-wire SPI Touch Screen: PCAP
Viewing Direction: IPS All Viewing Angles PCAP Structure: GFF
LCD Controller: ST7789V Pin Number: 10 Pins
Connection: ZIF FPC Surface Luminance: 400 Cd/m2(nits)
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

400nits IPS TFT Display

,

Optical Bonding IPS TFT Display

,

2.8 Inch IPS TFT Display

2.8-inch TFT LCD screen.pdf

About this item SFTO280PY-7200ACT 2.8 inch capacitive touchscreen TFT module



The optical bonded capacitive touch 2.8-inch IPS TFT display is a device that integrates advanced display and touch technologies. The following is a detailed introduction of the product SFTO280PY-7200ACT:



Product Information


-Display size: 2.8 inches
-Resolution: 240x320 pixels
-Display Technology: IPS (In Plane Switching) technology, providing a wide viewing angle and color accuracy
-Brightness: 400nits, suitable for viewing under various lighting conditions
-Touch screen technology: capacitive, providing high sensitivity and precise touch control
-Interface: TFT display Supporting SPI (Serial Peripheral Interface) and Touchscreen supporting I2C (Inter Integrated Circuit) interfaces for easy connection with microcontrollers or other processors
-Optical bonding: using optical adhesive to bond the touch screen and display screen, improving touch accuracy and display effect
-Multi touch: usually supports multi touch function, allowing multiple fingers to operate simultaneously
-Durability: Capacitive touch screens are more durable than resistive touch screens and are less susceptible to physical damage



Application scenarios


-Industrial Control Panel: Used for displaying and controlling industrial equipment
-Medical Equipment: Display important information on medical equipment
-Consumer electronics products: such as smart home devices, handheld game consoles, etc
-In car display: Used for the dashboard or infotainment system of the vehicle
-Business information systems: such as POS machines, self-service terminals, etc



Product advantages


-High brightness: 400nits brightness ensures clear display under various lighting conditions
-High Contrast: IPS technology provides better contrast and color performance
-Multi touch: The capacitive touch screen supports multi touch, providing a smoother interactive experience
-Optical bonding: enhances display effect and touch accuracy.



In summary, the optical bonded capacitive touch 2.8-inch IPS TFT display combines high brightness, high contrast, and multi touch features, making it suitable for various application scenarios and providing excellent user interaction experience.





Features



Item Specification Unit
Screen Size 2.8 inch Diagonal
Number of Pixel 240RGB(H)x320(V) Pixels
Display area 43.20(H)x57.60(V) mm
Pixel pitch 0.180(H)x0.180(V) mm
Outline Dimension 50.00x69.20x3.10 mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 400 nit
Contrast Ratio 1200:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70
Storage Temperature -30~80
Touchscreen Capacitive touch screen
Touchscreen Interface I2C
Assembly of TFT+CTP Optical Bonding





Outline Drawing



2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 0





TFT Interface Pin Definition



PinNo. Symbol Function
1 GND Ground
2 VCC Power Supply. 2.8V
3 SDA SPI interface input/output pin
4 SCLK This pin is used to be serial interface clock
5 CS Chip select input pin
6 RESET External reset input
7 LEDA LED back light(Anode)
8 LEDK LED back light(Cathode)
9 NC NC
10 RS Display data/command selection pin in 4-line serial interface





CTP Pin Definition



1 GND Ground
2 CTP_RST Touch screen reset
3 CTP_INT Touch screen interrupt signal
4 CTP_SDA Touch screen data signal
5 CTP_SCL Touch screen clock signal
6 VCC Power Supply





Optical specification



Item

Symbol

Condition

Min

Type

Max

Unit

White luminance (Center)

Lv

Θ=0

Normal

Viewing

Angle

IBL=80mA

--

400

--

cd/m2

Response time

Tr+Tf

--

30

35

ms

Contrast ratio

CR

1000

1200

--

--

Color

Chromaticity (CIE1931)

white

Wx

--

0.308

--



Wy

--

0.339

--

Viewing Angle

Hor

ΘL

CR≥10

75

80

--



ΘR

75

80

--

Ver

ΘU

75

80

--

ΘD

75

80

--

Brightness uniformity

Avg

Θ=0

80

90

--

%

Color Gamut

NTSC

Θ=0

65

70

--

%

Optima View Direction

ALL





TFT LCD Characteristics



Item Symbol Min. Typ. Max. Unit
Analog supply voltage VDD 2.4 2.8 3.3 V
Digital supply voltage VDDI 1.65 1.8 3.3
Input signal Voltage VIH 0.7VDDI - VDDI V
VIL GND - 0.3VDDI V





Backlight Characteristics



Item Symbol Min Typ Max Unit
LED current IL - 60 80 mA
LED voltage VL - 2.8 3.2 V
Operating LED life time Hr 30000 40000 - Hour




Product Image

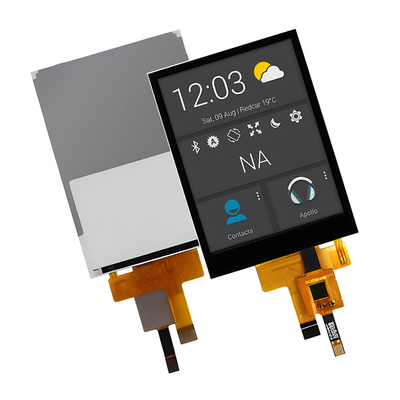

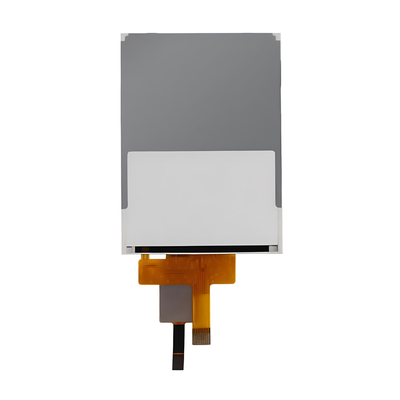

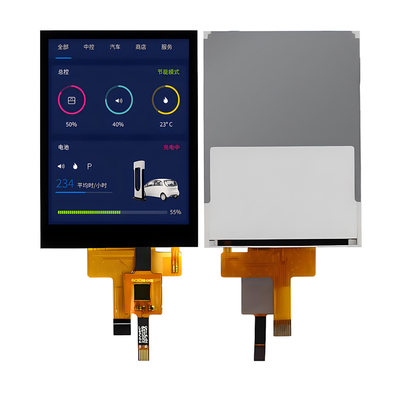

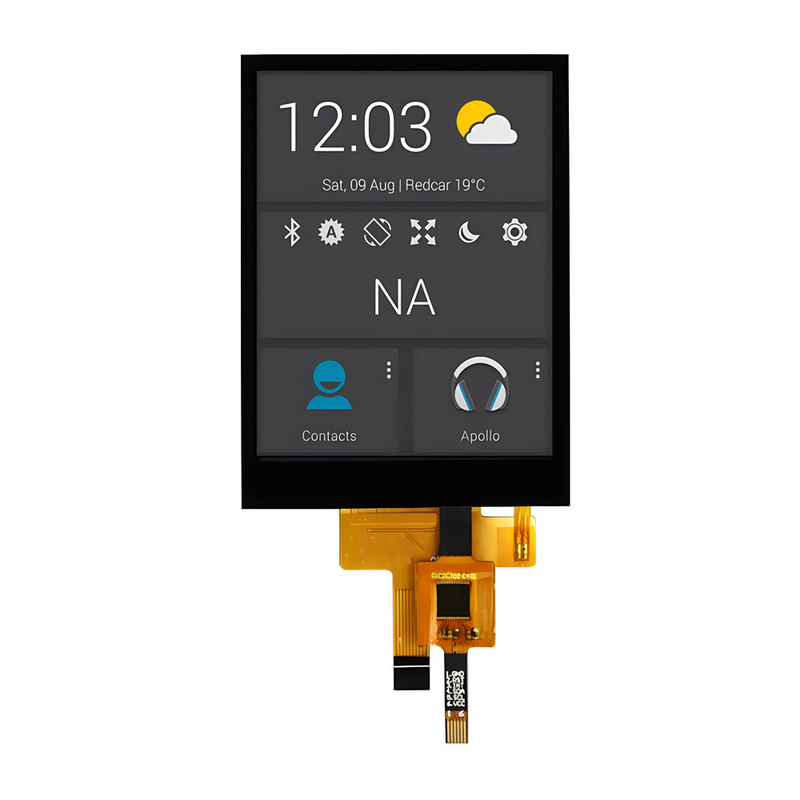

2.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 12.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 22.8 Inch IPS TFT Display with Optical Bonding 400nits SPI IIC Interface 3
