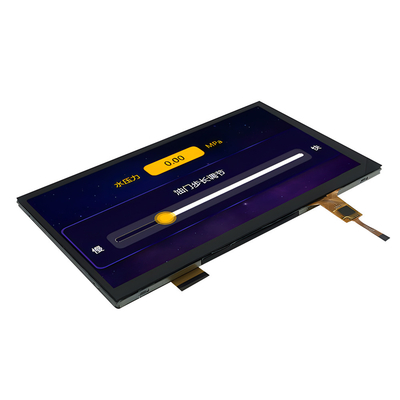

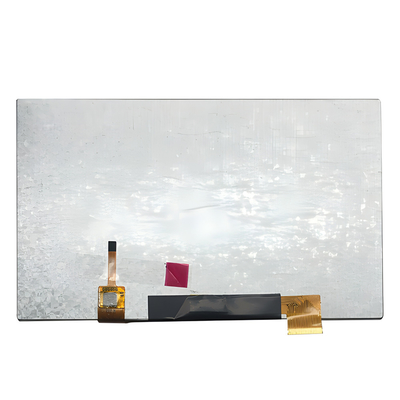

7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade

7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade
7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade

Large Image :  7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO700TZ-7196ACT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade

Description
Keywords: 7" Automotive TFT Touch LCD Touch Screen: Capacitive Touch Screen(CTP)
Resolution: 1024x600 Combination: Optical Bonding
LCM Interface: MIPI Pins: 30 Pins
Surface Luminance: 500 Cd/m2 Outline Dimension: 164.7 X 99.7 X 4.59 (mm)
Active Area: 154.21 X 85.92 (mm) LED Lifetime: 40,000 Hours
Viewing Direction: IPS, All Viewing Angles CTP Interface: I2C
Operating Temp.: –30℃ To +75℃ Compliance: REACH & RoHS Compliant
Highlight:

Automotive Grade TFT Display Module

,

1024x600 TFT Display Module

,

7 Inch TFT Display Module





About this item SFTO700TZ-7196ACT

7-inch automotive grade capacitive touch screen TFT display module, with a resolution of 1024x600, equipped with IPS technology and MIPI interface, is a high-precision and cutting-edge display product specially customized for automotive electronics and special industries. The following is a detailed introduction of the product:
  1. Display technology: Adopting TFT (Thin Film Transistor) technology, providing clear images and good color performance.
  2. Resolution: 1024x600 resolution, ensuring clarity of image details and suitable for various in car display needs.
  3. IPS panel: IPS (In Plane Switching) technology provides a wide viewing angle, ensuring a good visual experience when viewing the screen from different angles.
  4. Capacitive touch screen: A capacitive touch screen that supports multi touch, providing sensitive touch response and precise operating experience.
  5. MIPI interface: equipped with MIPI (Mobile Industry Processor Interface) interface, supporting high-speed data transmission, suitable for mobile devices.
  6. Brightness: Typically, the brightness reaches 500cd/m ², ensuring clear visibility under various lighting conditions.
  7. Work environment: Designed to meet automotive grade standards, capable of stable operation over a wide temperature ranging from -30C to 75C, and adaptable to different environmental conditions.
  8. Durability: The product undergoes strict quality control and testing to ensure reliability in long-term use and harsh environments.
  9. Application scenarios: Suitable for various applications such as in car multimedia systems, navigation devices, dashboard displays, industrial control panels, etc.
  10. Customized services: Based on customer needs, customized services may be provided, including specific interfaces, sizes, brightness, etc.

As a touch screen TFT display specially customized for automotive electronics and special industries, SFTO700TZ-7196ACT from saef technology has the following anti-interference performance advantages:

  1. High stability: Automotive grade TFT LCD screens must remain stable and operate continuously without crashing or crashing, especially in car environments where various harsh weather and road conditions may be encountered. Therefore, the requirements for stability are very high.

  2. Strong anti-interference ability: There are various electromagnetic and electrostatic interferences in cars, which may affect the display effect and stability of TFT LCD screens. This display module is designed to resist various interferences, including electromagnetic interference, electrostatic interference, etc., ensuring stable display even in complex electromagnetic environments.

  3. Excellent electromagnetic compatibility: In the field of automotive electronics, display screens need to have high electromagnetic compatibility to cope with electromagnetic interference generated by in car electronic devices. The TFT display module was designed with this in mind, reducing the impact of electromagnetic interference by adopting specific designs and materials.

  4. High and low temperature resistance: Cars may encounter high and low temperature environments, which can affect the performance and reliability of TFT LCD screens. This display module has been specially designed to adapt to a wide temperature range, ensuring normal operation even at extreme temperatures.

  5.

    High quality raw materials and production processes: In order to ensure the lifespan and reliability of TFT LCD screens, it is necessary to choose high-quality raw materials and production processes, and conduct strict quality control.

Through the above anti-interference measures, the 7-inch automotive grade capacitive touch screen TFT display module can provide stable and reliable display performance in various environments, meeting the demand for high reliability display devices in the automotive electronics field.





Features



Model Number: SFTO700TZ-7196ACT
Keywords: 7" Automotive TFT Touch LCD
Resolution: 1024x600
Touch Screen: Capacitive Touch Screen(CTP)
Combination: Optical Bonding
LCM Interface: MIPI
Surface Luminance: 500 Cd/m2
Pins: 30 Pins
Outline Dimension: 164.7 X 99.7 X 4.59 (mm)
Active Area: 154.21 X 85.92 (mm)
Viewing Direction: IPS, All Viewing Angles
Operating Temp.: –30℃ To +75℃
LED Lifetime: 40,000 Hours
CTP Interface: I2C
Compliance: REACH & RoHS Compliant





Mechanical Outline Drawing

7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 0



7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 1



Interface Pin Description



Pin No. Symbol Description
1 LEDA LED anode
2 LEDA LED anode
3 VGH Gate ON Voltage
4 VGL Gate OFF Voltage
5 UPDN Vertical scan direction
6 SHLR Horizontal scan direction
7 LEDK LED CATHODE
8 LEDK LED CATHODE
9 AVDD Power for Analog Circuit
10 GND Ground
11 MIPI_TDP3 MIPI differential data input
12 MIPI_TDN3 MIPI differential data input
13 GND GND
14 MIPI_TDP2 MIPI differential data input
15 MIPI_TDN2 MIPI differential data input
16 GND GND
17 MIPI_TCP MIPI differential clock input
18 MIPI_TCN MIPI differential clock input
19 GND GND
20 MIPI_TDP1 MIPI differential data input
21 MIPI_TDN1 MIPI differential data input
22 GND GND
23 MIPI_TDP0 MIPI differential data input
24 MIPI_TDN0 MIPI differential data input
25 GND GND
26 STBYB Standby Mode select pin.
27 RESET Global reset pin
28 VDD Power for Digital Circuit
29 VDD Power for Digital Circuit
30 VCOM Common-mode voltage





Maximum Absolute Limit



Item Symbol Min. TYP Max. Unit
Supply power voltage VDD -0.3 - 3.96 V
I/O power voltage VDDIO -0.3 - 3.96 V
AVDD input power AVDD -0.3 - 12 V
Gate On Power Supply Voltage VGH -0.3 - VGL+32 V
Gate Off Power Supply Voltage VGL VGH-32 - 0.3 V
VMID voltage VMID -0.3 - 6.6 V
Common Power Supply Voltage VCOM_OP -0.3 - 5.43 V
VOTP (OTP power) VOTP - - 9 V
Operating Temperature TOPR -30 - 75
Storage temperature TSTG -30 - 80



DC Characteristics (VDD=1.65V-3.3V,Ta=25°C)

Item Symbol Min Type Max Unit Test condition
Operating voltage VDD 2.6 - 3.6 V -
Supply current IDD - - 5 mA VDD=2.8V,Ta=25°C
Input voltage VIH 0.8VDD - VDD V -
VIL 0 - 0.2VDD V
Input leakage current IIL -1.0 - 1.0 mA VIN=VDD or VSS





Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Condition

Supply Voltage Vf 9.0 9.6 10.2 V If=180 mA
Supply Current If - 180 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 1728 - mW -
Luminous Intensity for LCM



-

450 500 - Cd/m2 If=180mA
Uniformity for LCM - 80 - - If=180 mA
Backlight Color White






Optical Characteristics



No. ITEM Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃ - 25 - Ms
2 Transmittance (With PL) T(%) - - 5.0 - -
3 Contrast Rate Cr

θ=0,

Normal viewing angle

- 800 - -
4

Viewing

Angle



Hor. θR CR>10 - 85 - Deg
θL - 85 -
Ver. Θ+ - 85 -
Θ- - 85 -

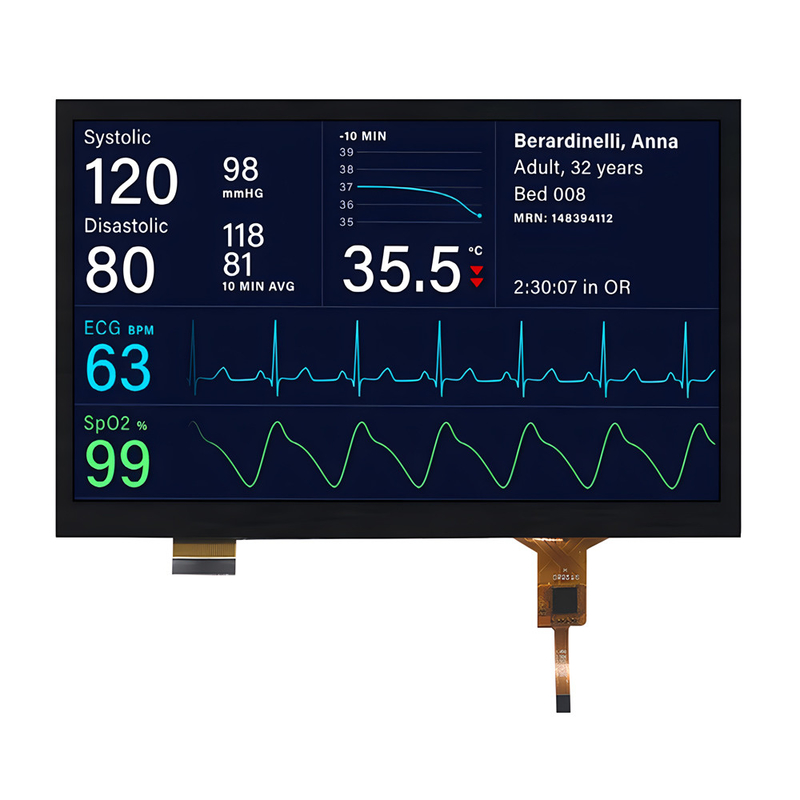

Product Image

7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 2



7 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 37 Inch Capacitive Touchscreen TFT Display Module 1024x600 IPS MIPI Interface Automotive Grade 4
