13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2

13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2
13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2 13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2 13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2

Large Image :  13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1330SM-7191AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD39 - USD44.0; Price can be Negotiated based on order quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2

Description
Keywords: 13.3 Inch TFT LCD Display Resolution: 1920*1080 Pixels
LCD Size: 305.2 X 178.1 X 2.7 (mm) Active Area: 293.76 X 165.24 (mm)
LCD Interface: EDP Display Type: IPS Full Viewing Angles
Touch Screen: CTP Optional Surface Luminance: 350 Cd/m2
Operating Temp.: -10℃ To +60℃ Storage Temp.: -20℃ To +60℃
NTSC Ratio: 72% Contrast Ratio: 800
Display Color: 16.7M LED Lifetime: 40,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

72% NTSC Ratio TFT LCD Display

,

350cd/M2 TFT LCD Display

,

13.3 Inch TFT LCD Display

SFTO1330SM-7191AN SPECIFICATIOIN.pdf

13.3-inch EDP TFT LCD Display Product Introduction



The 13.3-inch EDP TFT LCD display is a device that utilizes high-end display technology and is widely popular in portable devices, commercial displays, and industrial applications for its excellent image quality and versatility. The following is a detailed introduction to a 13.3-inch EDP TFT LCD display with a resolution of 1920 * 1080 pixels, 30 pin interface, and 72% NTSC color gamut coverage and a brightness of 350cd/m ².



Product Features
Brand and Model: SFTO1330SM-7191AN
Panel type: a-Si TFT-LCD
Size: 13.3 inches
Resolution: 1920 (RGB) × 1080 (FHD)
Pixel arrangement: RGB vertical stripes
Aspect ratio: 16:9
Point spacing: 0.051 × 0.153mm
Pixel spacing: 0.153 × 0.153mm (166PPI)
Brightness: 350cd/m ² (typical value)
Contrast ratio: 800:1 (typical value)
Viewing angle: 85/85/85/85 (typical value)
Color gamut coverage: 72% (NTSC)
Response time: 30 (typical value) (Tr+Td) ms
Display mode: VA/IPS, normally black display, transmissive
Backlight type: WLED
Working temperature: -10~60 ° C
Storage temperature: -20~60 ° C



Optical Performance
This 13.3 inch TFT offers high brightness of 350cd/m ² and high contrast ratio of 800:1, ensuring clear images and vivid colors. 72% of the NTSC color gamut coverage ensures the true reproduction of colors, making the display effect closer to natural colors.



Interface Characteristics
Signal category: EDP
Panel voltage: 3.3V (typical value)
Panel current: 279/468mA (typical/maximum)
Interface type: Terminal
Interface pin count: 30 pins



Application Area
This 13.3-inch EDP TFT LCD display is suitable for various application scenarios, including but not limited to:

Portable devices: such as high-end laptops, tablets, etc.
Commercial display: used for advertising machines, information dissemination systems, etc.
Industrial application: As a display interface for industrial control systems.



Summary
This 13.3-inch EDP TFT LCD display provides users with an excellent visual experience with its high resolution, high brightness, high contrast, and wide color gamut coverage. Whether in strong outdoor light or low indoor light environments, clear display effects can be guaranteed. Its versatility and reliability make it an ideal choice for various application scenarios.





Outline Drawing

13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2 0

13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2 1





Interface Pin Definition



Pin No. Symbol I/O Function
1 CABC_EN / NC - Reserved for CD
2 H_GND P High Speed round
3 Lane1_N I Complement Signal Link Lane 1
4 Lane1_P I True Signal Link Lane 1
5 H_GND P High Speed round
6 Lane0_N I Complement Signal Link Lane 0
7 Lane0_P I True Signal Link Lane 0
8 H_GND P High Speed round
9 AUX_CH_P I True Signal Auxiliary Channel
10 AUX_CH_N I Complement Signal Auxiliary Channel
11 H_GND P High Speed round
12 LCD_VDD P LCD logic and driver power(3.3V)
13 LCD_VDD P LCD logic and driver power(3.3V)
14 NC I Reserved for LCD manufacturer’s use
15 LCD_GND P LCD logic and driver ground
16 LCD_GND P LCD logic and driver ground
17 HPD O HPD signal pin
18 LED-1 P Backlight ground
19 LED-2 P Backlight ground
20 LED-3 P Backlight ground
21 LED-4 P Backlight ground
22 BL ENABLE I Backlight on/off
23 BL PWM DIM I System PWM
24 SCL/NC - Reserved for LCD manufacturer’s use
25 SDA/NC - Reserved for LCD manufacturer’s use
26 BL PWR P Backlight power
27 BL PWR P Backlight power
28 BL PWR P Backlight power
29 BL PWR P Backlight power
30 NC - Reserved for LCD manufacturer’s use





Absolute Maximum Ratings



Parameter Symbol Min. Max. Unit Remarks
Back-light Power Supply Voltage HVDDOUT - - V Ta = 25 ℃ Note 1&2 Remarks
Back-light LED Current IHVDD - - mA
Back-light LED Reverse Voltage VR - - V
Operating Temperature TOP -10 60



Ta = 25 ℃ Note 1&2

Storage Temperature TST -20 60
Operating Ambient Humidity Hop - 90 %RH
Storage Humidity Hst - 90 %RH
Heat Release Requirement Trls 15





TFT LCD Electronical Specifications



Parameter Symbol Ratings Unit
MIN TYP MAX
Power Supply Input Voltage V DD 3.0 3.3 3.6 V
Power Supply Current IDD - - - mA
LED Driver Power Supply Voltage HVDD 2.7   24 V
LED Driver Power Supply Current IHVDD   20 - mA
LED Power Consumption PLED   2.7   W
Positive-going Input Threshold Voltage VIT+     +100 mV
Negative-going Input Threshold Voltage VIT- -100     mV
Differential input common mode voltage Vcom   TBD   V





Backlight Electronical Specifications



Parameter Symbol Min. Typ. Max. Unit
Supply voltage VBL 5 12.0 37 V
Power supply Current for Back light ILED 6



-

25 mA
Power supply for Back light PLED 0.18 - 5.55 W
Modulated light signal voltage VPWM H 1.2 - 5.0 V
VPWM L 0 - 0.6 V
Brightness Control Duty Ratio Duty 1 - 100 %
Brightness Control frequency fPWM 100 - 1,600 KHz
LED-BL ON/OFF High voltage VCNTH 1.2   5.0 V
LED-BL ON/OFF low voltage VCNTL 0 - 0.6 V
LED lifetime - 30,000 40,000 - h

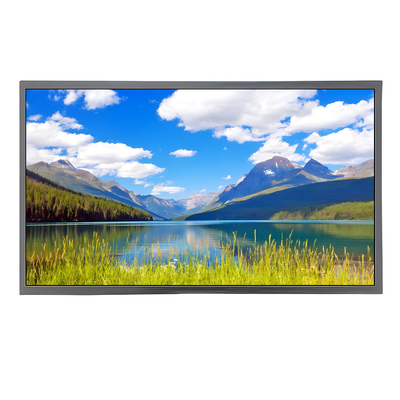

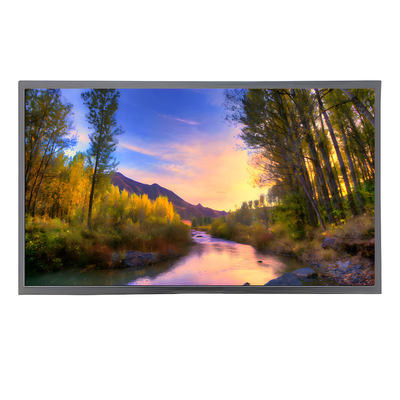

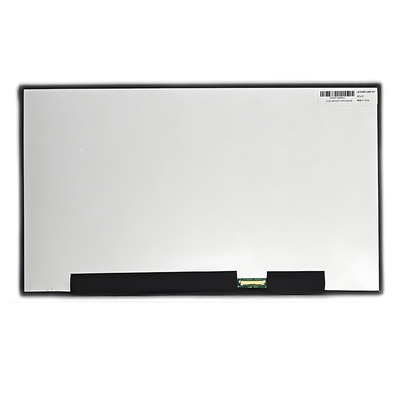

Product Image

13.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2 213.3 Inch EDP TFT LCD Display 1920*1080 Pixels 30 Pins 72% NTSC Ratio 350cd/M2 3
