4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC

4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC
4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC

Large Image :  4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO430JS-7025A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD4.7 - USD5.4, Price is Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC

Description
Product: 4.3 Inch TFT Display Resolution: 480x272
Viewing Direction: IPS, All Viewing Angles Driver IC: ST7283
Touch Screen: No (RTP And CTP Optional) Pin Number: 40 Pins
Connection: ZIF FPC 46mm Surface Luminance: 500 Cd/m2 (nits)
Operating Voltage: 3.3V Interface: RGB
Operating Temp.: 20℃ To +70℃ Storage Temp.: -30℃ To +80℃
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

4.3 Inch TFT LCD Display

,

480*272 TFT LCD Display

,

262K TFT LCD Display



Product Introduction



The 4.3-inch IPS TFT LCD is a 262K color display screen with a diagonal size of 4.3 inches and a resolution of 480x270 dot matrix. The product adopts IPS (In-Plane Switching) display technology, which provides an ultra wide viewing angle, ensuring that users can obtain a consistent visual experience from different angles. This display screen supports single point RTP and multi-point CTP touch technology, achieving intuitive human-computer interaction.



The 4.3-inch IPS TFT LCD is a high-definition display screen with RGB interface. Its working logic voltage is 3.3V, with a built-in ST7283 driver IC and a working temperature of -20-70C.



The 4.3-inch IPS TFT LCD display screen has become an indispensable part of consumer electronics products due to its excellent performance and wide range of application scenarios. It can provide exciting visual experiences, meet users' needs for image display, and support customized services to meet specific application requirements.





Features


Size: 4.3 inches
Resolution: 480 × 272 pixels
Display mode: IPS
Driver IC: ST7283
Brightness: 500cd/m ²
Interface types: RGB
Working temperature: -20 ℃ to 70 ℃
Storage temperature: -30 ℃ to 80 ℃
Backlight type: LED backlight, brightness and quantity vary by model







Outline Drawing






4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 0







Interface Pin Definition



No. Pin name I/O Description
1 LED-K I LED Cathode
2 LED-A I LED Anode
3 VSS I Power Ground
4 VDD I Power Source
5- 12 R00-R07 I RED Data Signal (LSB)
13-20 G00-G07 I GREEN Data Signal(LSB)
21-28 R00-R07 I BLUE Data Signal(LSB)
29 VSS I Power Ground
30 DLCK I Clock Signal to Sample each date
31 DISP I Display ON/OFF Signal
32 HSYNC I Horizontal Synchronizing Signal
33 VSYNC I Vertical Synchronizing Signal
34 DE I Input Data enable control
35 NC - Set Open
36 GND I Power Ground
37 XR I Touch Panel PIN
38 YD I Touch Panel PIN
39 XL I Touch Panel PIN
40 YU I Touch Panel PIN





Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 3.0-3.6 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C



Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf 20.3 22.4 24 V If=20mA
Supply Current If - 20 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 448 - mW -
Luminous Intensity for LCM



-

- 500 - Cd/m2 If=20mA
Uniformity for LCM - 70 75 - If=20mA
Backlight Color White

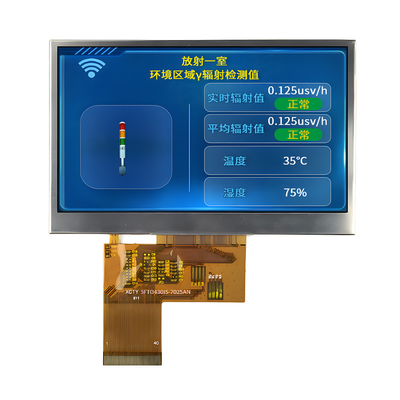

Product Image
4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 1

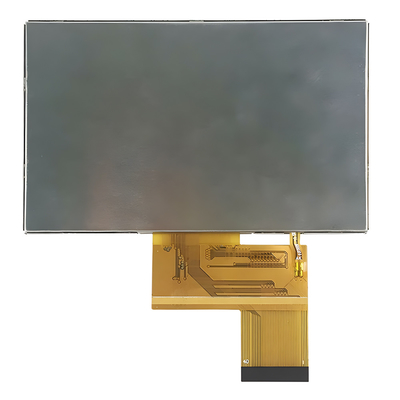

4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 2
( with RTP optional )

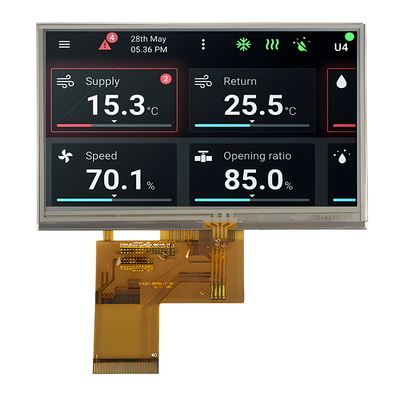

4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 3
( with CTP optional)
4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 4
( with custom Touch Galss CTP )
4.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 54.3 Inch IPS TFT LCD 480*272 Pixel 262K Full Color Display ST7283 Driver IC 6

Environmental / Reliability Tests



No Test Item Condition Remarks
1 High Temperature Operation Ts= +70℃ , 240hrs

Note 1

IEC60068-2-2, GB2423. 2-89

2 Low Temperature Operation Ta= -20℃ , 240hrs Note 2 IEC60068-2-1 GB2423.1-89
3 High Temperature Storage Ta= +80℃ , 240hrs IEC60068-2-2 GB2423. 2-89
4 Low Temperature Storage Ta= -30℃ , 240hrs IEC60068-2-1 GB/T2423.1-89
5 High Temperature & Humidity Storage Ta= +60℃ , 90% RH max, 160 hours

IEC60068-2-3

GB/T2423.3-2006

6 Thermal Shock (Non-operation) -30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle

Start with cold

temperature, end with

high temperature

IEC60068-2-14,

GB2423.22-87



7

Electro Static Discharge (Operation)

C=150pF, R=330 Ω , 5 points/panel

Air:±8KV, 5 times; Contact: ±4KV, 5

times; (Environment: 15℃ ~

35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)

IEC61000-4-2

GB/T17626.2-1998



8



Vibration

(Non-operation)

Frequency range: 10~55Hz, Stroke:

1.mm Sweep: 10Hz~55Hz~10Hz

2 hours for each direction of X .Y. Z.

(package condition)

IEC60068-2-6

GB/T2423.5-1995

9 Shock (Non-operation)

60G 6ms, ± X, ±Y , ± Z

3 times for each direction

IEC60068-2-27 GB/T2423.5-1995
10 Package Drop Test

Height: 80 cm, 1 corner, 3 edges,

6 surfaces

IEC60068-2-32 GB/T2423.8-1995
